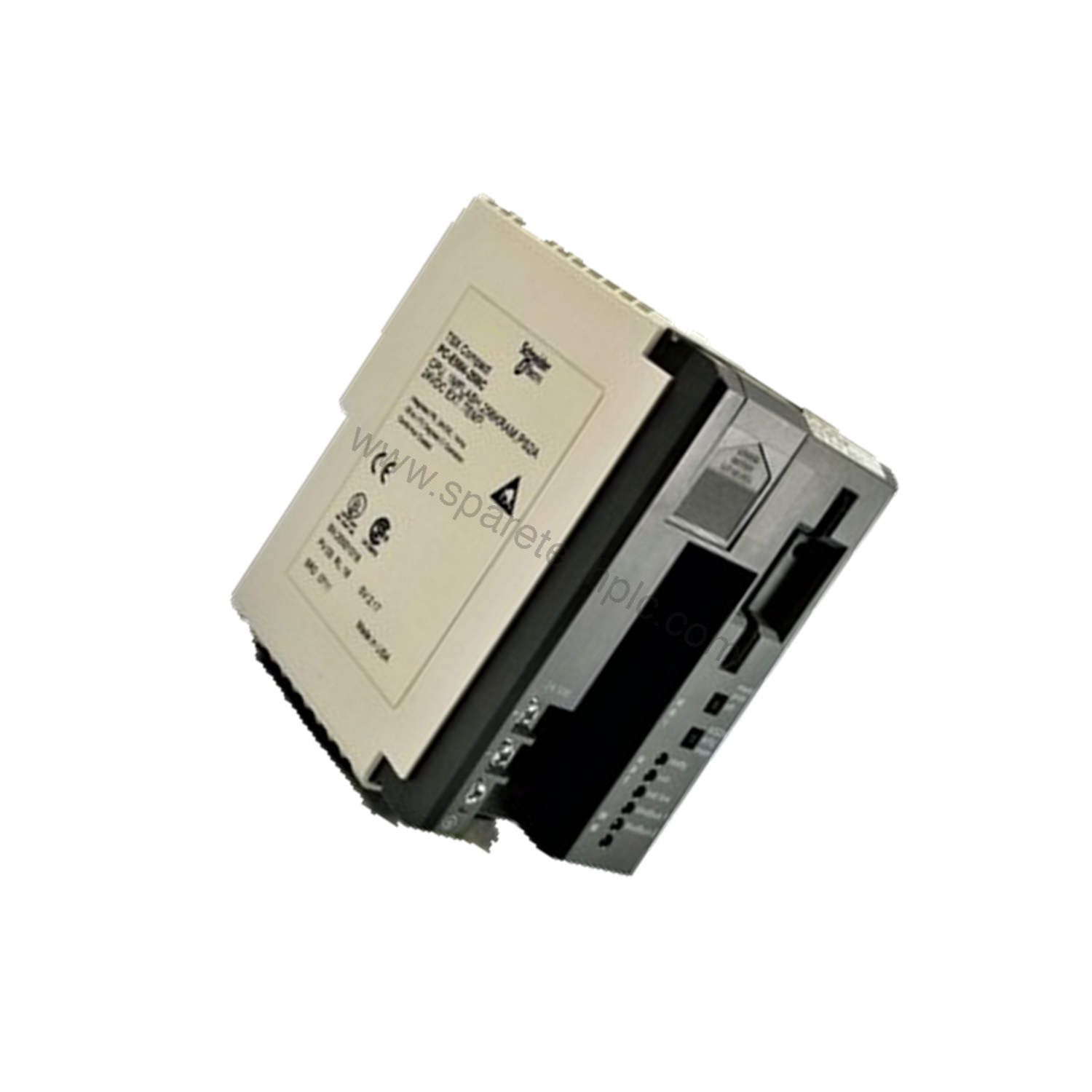

PC-E984-685 | Schneider Electric Modicon Programmable Controller

Why the PC-E984-685 Belongs on Your Shortlist

When a production line stalls, every minute of downtime erodes throughput and margin. The Schneider Electric Modicon PC-E984-685 programmable controller gives you a reliable, cost-effective way to keep automation processes running without overspending on capacity you will never use. With 16k of user memory, 10k of data memory, and a scan time of just 1 ms/k, it delivers the responsive control that mid-complexity applications demand.

This controller sits in the Modicon series, a line trusted across discrete manufacturing, process control, and infrastructure automation. It is a practical choice for buyers who need genuine industrial hardware that is in stock and ready to ship.

Key Parameters at a Glance

• User Memory: 16k — room for structured programs with multiple routines and subroutines.
• Data Memory: 10k — stores operational data, recipes, and runtime variables.
• Scan Time: 1 ms/k — fast enough for responsive input and output handling.
• Register I/O: 1088 max. — supports extensive analog and register-based control.
• Local I/O: 16,384 max. — scales to large local point counts.
• Total I/O Bits: 512/1024 — flexible discrete I/O handling.
• Communication Ports: 2 Modbus, 1 Modbus+ — integrates with existing networks.
• Local Drops: 1; Maximum Racks: 4 — expandable rack architecture.
• Weight: 5.00 lbs (2.27 kg).

Where the PC-E984-685 Fits Best

Mid-Size Machine Control

With 16k user memory and 1088 register I/O, this controller handles multi-axis sequencing, interlocks, and operator interface logic in one compact package. Machine builders can standardize on one platform across several product lines.

Process and Utility Monitoring

The 1 ms/k scan time keeps control loops responsive. Two Modbus ports and one Modbus+ port let you connect drives, HMIs, and remote I/O without adding gateway hardware for basic serial networks.

Replacement and Upgrade Projects

If you are replacing an aging controller, the PC-E984-685 offers a familiar Modicon programming environment and a clear migration path. The four-rack capacity and 16,384 local I/O ceiling mean you can expand without replacing the CPU.

Integration and Communication Notes

The PC-E984-685 includes two Modbus ports and one Modbus+ port. These serial protocols are widely supported by HMIs, drives, and remote I/O blocks. When wiring into a plant network, confirm cable pinouts and termination with your supplier. If your architecture uses a different fieldbus, you may need an external gateway or connection module to bridge protocols.

Selection Checklist Before You Buy

• Confirm your program size fits within 16k user memory and 10k data memory.
• Verify your I/O count stays within 1088 register I/O and 16,384 local I/O.
• Check that your network uses Modbus or Modbus+ natively, or plan for a gateway.
• Allow for up to four racks and one local drop in your panel layout.
• Confirm the 5.00 lbs (2.27 kg) weight suits your enclosure and mounting.

Please verify current lifecycle status and availability with SpareTech Plc before ordering.

Maintenance and Long-Term Value

Keep the controller in a clean, dry enclosure with adequate ventilation. Inspect connections periodically and follow the manufacturer's manual for all service procedures. Because the PC-E984-685 uses standard Modicon architecture, spare parts and programming support remain widely available, protecting your investment over the long term.

Contact SpareTech Plc today for pricing and availability.
