Product Introduction

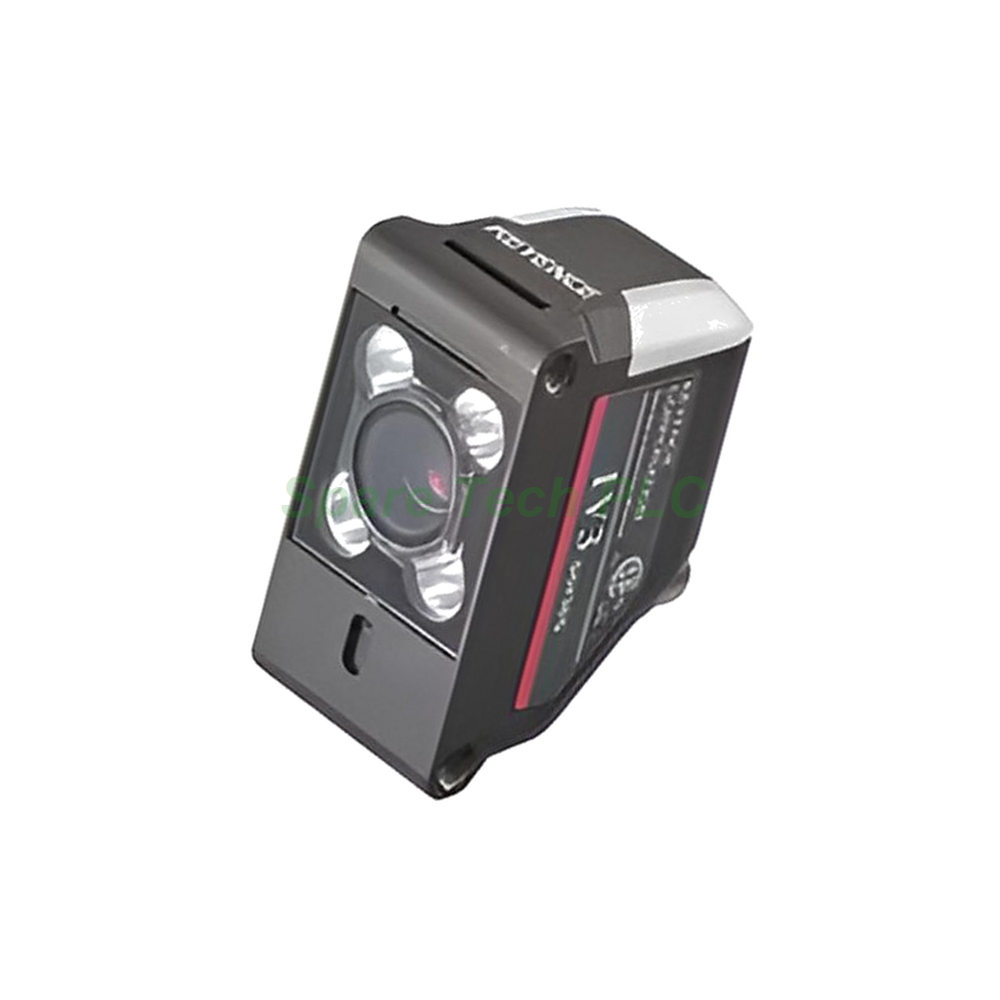

The IV3-G500MA is a compact sensor head from the Keyence IV3 Series, designed for integration with the IV3-G120 amplifier. Specifically, this monochrome unit delivers reliable vision inspection across a wide range of industrial applications.
Technical Specifications
The core imaging component is a 1/2.9-inch monochrome CMOS sensor. Moreover, it captures images at a resolution of 1280 (H) × 960 (V) pixels. The auto focus system simplifies setup by adjusting the focal position automatically during installation.
The exposure time ranges from 12 μs to 9 ms. Additionally, the IV3-G500MA uses an infrared LED with pulse lighting. The installed distance starts at 50 mm and supports long-range detection.
Key Specifications
Field of View
The field of view varies based on the installation distance. For instance, at 50 mm, the visible area is 22 (H) × 16 (V) mm. Furthermore, extending the distance to 3000 mm expands the field to 1184 (H) × 888 (V) mm.
Environmental and Mechanical Parameters
The IV3-G500MA is built for harsh industrial environments. Besides, its zinc die-cast housing ensures durability under demanding conditions.
Protection and Durability
The unit features an IP67 enclosure rating, protecting against dust and water ingress. However, this rating does not apply when a polarizing filter is mounted. The operating temperature ranges from 0 to +50°C without freezing. In addition, the relative humidity tolerance is 35 to 85% RH without condensation.
Physical Characteristics
The main unit case is constructed from zinc die-casting. Meanwhile, the front cover uses acrylic material. The operation indicator cover is TPU. The weight is approximately 75 g without the AI Lighting unit and 225 g with it.
Installation Guide
Installing the IV3-G500MA requires connection to the IV3-G120 amplifier via a dedicated cable. First, mount the sensor head securely at the desired distance. Next, connect the cable to the amplifier. After that, power on the system to initiate the auto focus during setup. Finally, configure the inspection parameters through the amplifier interface.
Packaging List
