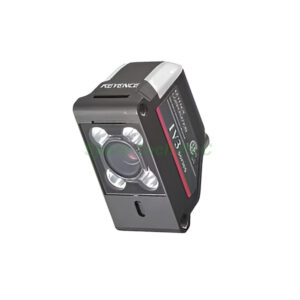

Keyence IV3-G600CA Vision Sensor Head

Product Introduction

The IV3-G600CA is a compact color sensor head from the Keyence IV3 Series. It works exclusively with the IV3-G120 amplifier and targets applications that demand wide-area color inspection. Specifically, this model combines a wide field of view with a 1/2.9-inch color CMOS image sensor.

Technical Specifications

The image receiving element is a 1/2.9-inch color CMOS sensor. Moreover, it delivers a resolution of 1280 (H) × 960 (V) pixels. The auto focus function adjusts the focal position automatically, which shortens setup time on the line.

The exposure time spans 12 μs to 9 ms. In addition, the IV3-G600CA relies on a white LED light source. Furthermore, the lighting method supports pulse and continuous lighting in switchable modes, giving engineers flexibility across different target surfaces.

Key Specifications

Field of View

The wide-view optics cover a broad inspection area. For instance, at an installation distance of 50 mm, the field of view measures 51 (H) × 38 (V) mm. Besides, at 3000 mm, the coverage expands to 2730 (H) × 2044 (V) mm. Therefore, one head can handle both close-up and long-range detection tasks.

Communication and Electrical Notes

The head has no built-in ports or protocols of its own. Instead, it connects to the IV3-G120 amplifier through a dedicated cable. Similarly, power comes from the connected amplifier, and all outputs route through the same amplifier. As a result, system wiring stays simple and centralized.

Environmental and Mechanical Parameters

The IV3-G600CA is engineered for demanding factory floors. Its zinc die-cast housing resists mechanical stress and everyday wear.

Protection and Durability

The unit carries an IP67 enclosure rating for dust and water resistance. However, this rating does not apply when a polarizing filter is mounted. The operating temperature range is 0 to +50°C with no freezing. Meanwhile, relative humidity tolerance sits at 35 to 85% RH with no condensation.

Vibration and Shock

Vibration resistance covers 10 to 55 Hz at a double amplitude of 1.5 mm, for two hours in each of the X, Y, and Z directions. Additionally, shock resistance reaches 500 m/s², tested three times in each of six directions. Both figures exclude setups where a dome attachment is mounted.

Physical Characteristics

The main unit case uses zinc die-casting. The front cover is acrylic, and the operation indicator cover is TPU. Weight comes in at roughly 75 g without the AI Lighting unit and 225 g with it.

Installation Guide

Installing the IV3-G600CA starts with mounting the head at the target distance. First, secure the bracket so the lens faces the inspection zone. Next, run the dedicated cable to the IV3-G120 amplifier. After that, power on the system and let auto focus settle. Finally, select pulse or continuous lighting and tune the inspection settings through the amplifier.

Packaging List

• 1 × Keyence IV3-G600CA Sensor Head

• 1 × Dedicated Connection Cable

Shipping: Fedex, UPS, DHL

FAQ

Which amplifier pairs with the IV3-G600CA?
The IV3-G600CA works only with the Keyence IV3-G120 amplifier through a dedicated cable.

What is the field of view at 3000 mm?
At an installation distance of 3000 mm, coverage reaches 2730 × 2044 mm.

Does this model capture color images?
Yes, it uses a 1/2.9-inch color CMOS sensor at 1280 × 960 pixels.

Can the lighting mode be changed?
Yes, the white LED supports pulse and continuous lighting, and users can switch between them.

Is the sensor head waterproof?
It holds an IP67 rating, though the rating lapses when a polarizing filter is attached.
