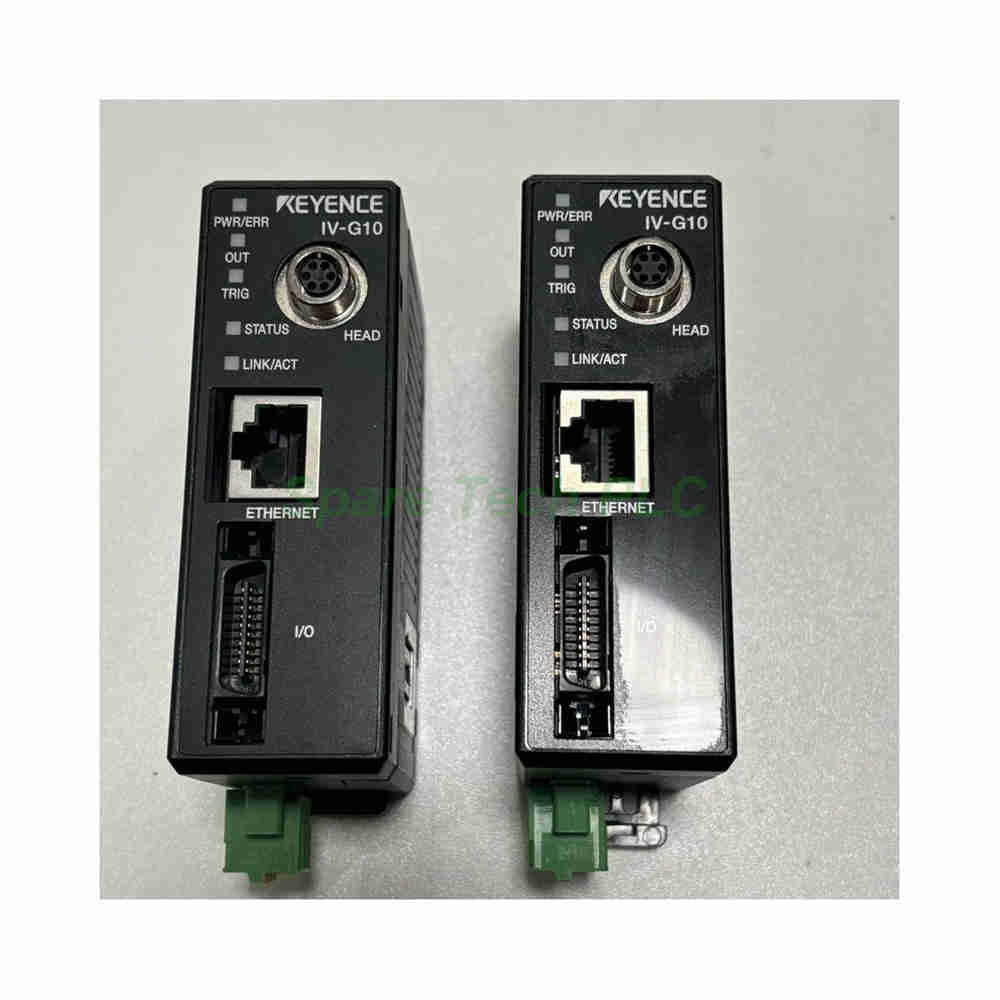

The IV-G10 serves as the main amplifier unit for Keyence IV-G series vision sensor heads. This controller processes image data from connected sensor heads and executes inspection logic. Furthermore, its modular design allows expansion through the IV-G15 unit when additional processing capacity is required. Keyence has marked this model as discontinued, with the IV-HG10 recommended as the replacement.
The IV-G10 provides 16 detection tools and one position adjustment tool. Besides shape detection, it supports color area and area tools depending on the connected head type. Users can store up to 32 programs through switch settings.

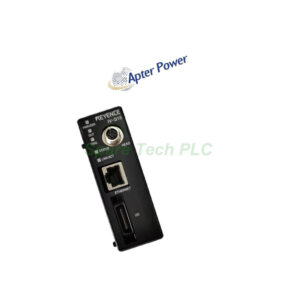

For network connectivity, the Keyence IV-G10 includes an RJ-45 8-pin connector. It supports 100BASE-TX and 10BASE-T Ethernet. Moreover, the device works with FTP client, EtherNet/IP, and PROFINET protocols. Communication expansion is available through the IV-G15 unit.
The unit runs on 24 VDC +/-10% supply voltage. Power consumption stays at 0.8 A or less alone, rising to 1.5 A or less with the expansion unit attached. Outputs use open collector type with NPN/PNP switching. N.O./N.C. modes are also selectable, with a maximum rating of 26.4 V and 50 mA. In addition, six inputs (IN1 to IN6) and eight outputs (OUT1 to OUT8) are provided.
The main unit case uses polycarbonate material. The sensor weighs approximately 150 g.
Operating temperature ranges from 0 to +50°C without freezing. Relative humidity should stay between 35 and 85% RH without condensation. Keyence does not list a protection rating for this amplifier model.
First, mount the IV-G10 on a DIN rail or panel using the appropriate bracket. Next, connect the sensor head cable to the amplifier unit. Then, link the RJ-45 connector to your network switch or intelligent monitor.
For power, wire the 24 VDC supply according to the polarity markings. After that, configure up to 32 programs through the switch settings. Finally, assign input and output functions using the IV-H1 software or IV-M30 monitor.
1x Keyence IV-G10 Sensor Amplifier
1x Mounting Bracket
1x Quick Start Guide
Q1: What is the IV-G10 used for?
A: The IV-G10 is a sensor amplifier main unit. It processes image data from IV-G series vision sensor heads and executes inspection judgments.
Q2: Is the Keyence IV-G10 still in production?
A: No, Keyence marks this model as discontinued. The IV-HG10 is the recommended replacement for new installations.
Q3: How many sensor heads can the IV-G10 support?
A: The main unit supports one connected head. Adding an IV-G15 expansion unit increases processing capacity for additional heads.
Q4: What communication protocols does the IV-G10 offer?
A: It supports FTP client, EtherNet/IP, and PROFINET through the RJ-45 8-pin connector.
Q5: Can I still buy the IV-G10 for spare parts?
A: Yes, refurbished and surplus units remain available through industrial automation suppliers. Check stock availability before ordering.
