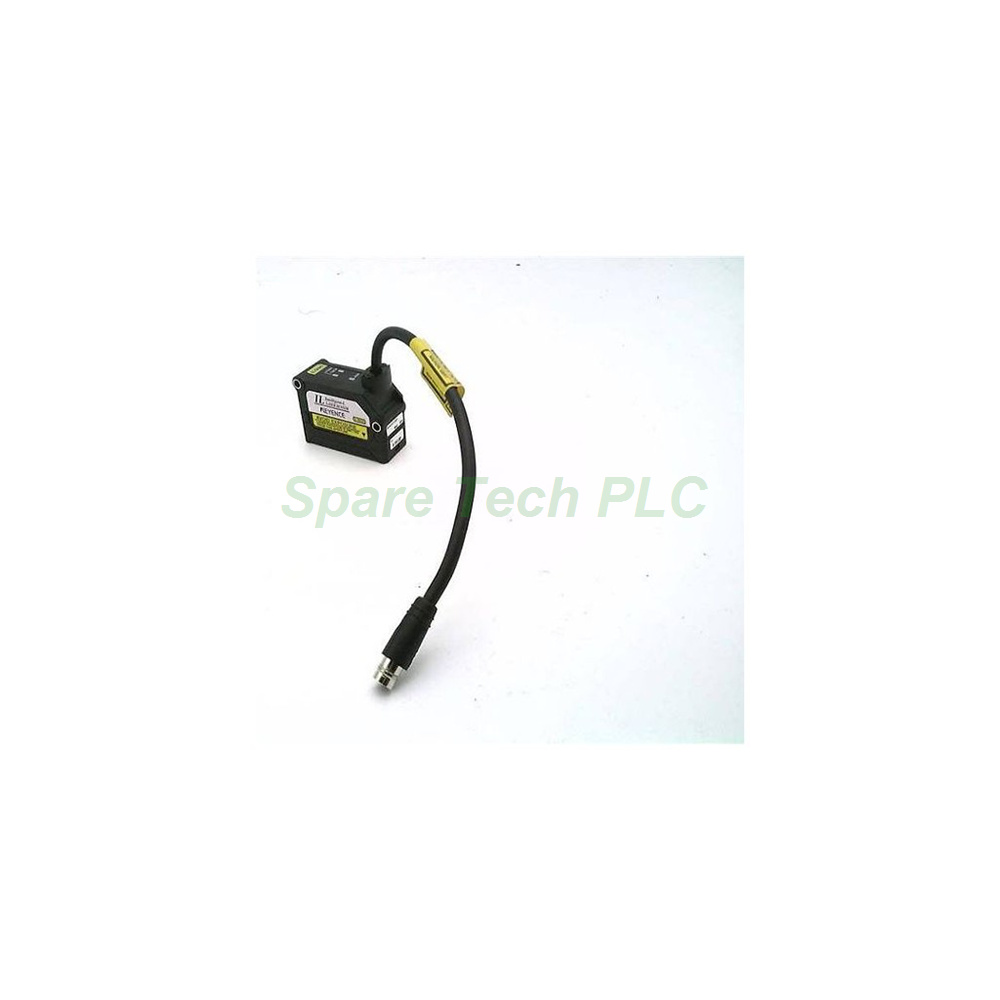

Keyence IL-S065 CMOS Laser Displacement Sensor Head

Product Introduction

The IL-S065 belongs to the Keyence IL Series. This sensor head uses triangulation and reflective sensing for displacement measurement. It features a compact short-range design. As a result, it fits space-limited stations that need stable distance readings.

Technical Specifications

The IL-S065 has a reference distance of 65 mm. Its measurement range spans 55 to 75 mm. The light source is a red semiconductor laser at 655 nm wavelength. Laser output reaches 560 µW, and the unit holds a Class 2 rating under IEC 60825-1 and FDA CDRH Part 1040.10.

Spot diameter measures about 55 x 1,700 µm at standard distance. Linearity sits at ±0.05% of F.S. from 55 to 65 mm. Furthermore, it reaches ±0.075% of F.S. from 55 to 75 mm. Repeatability is 2 µm on a standard white diffuse target at 1 ms sampling. Meanwhile, the sampling rate offers four levels: 0.33, 1, 2, and 5 ms. Temperature characteristics stay at 0.02% of F.S. per °C.

Communication and Electrical Notes

The IL-S065 has no built-in ports and no supported protocols. It cannot expand communication on its own. Instead, it connects to an IL series amplifier unit for power and signal output. Therefore, the amplifier handles all data transfer and output functions.

Mechanical and Environmental Parameters

This sensor head weighs approximately 75 g. It operates in temperatures from -10 to +50°C without condensation or freezing. Relative humidity must stay between 35 and 85% RH without condensation. Additionally, the IP67 rating protects it against dust and water ingress. This makes it dependable in demanding factory settings.

Installation Guide

First, mount the sensor head facing the target at roughly 65 mm. Next, connect it to a compatible IL series amplifier unit. Then, power on the amplifier to activate the laser head. After that, select the sampling rate that matches your measurement speed. Finally, verify linearity and repeatability against a known reference target.

Packaging List

1x Keyence IL-S065 Sensor Head
1x Dedicated Connection Cable
1x Mounting Bracket
1x Instruction Sheet

FAQ

1. What amplifier works with the IL-S065?
The IL-S065 connects to an IL series amplifier unit. That amplifier supplies power and handles signal output.

2. What is the measurement range of this sensor head?
It measures from 55 to 75 mm, with a reference distance of 65 mm.

3. How precise is the IL-S065?
Repeatability reaches 2 µm, and linearity stays within ±0.05% of F.S. from 55 to 65 mm.

4. Does the IL-S065 have built-in communication ports?
No. It has no built-in ports or protocols. Communication runs through the IL amplifier.
