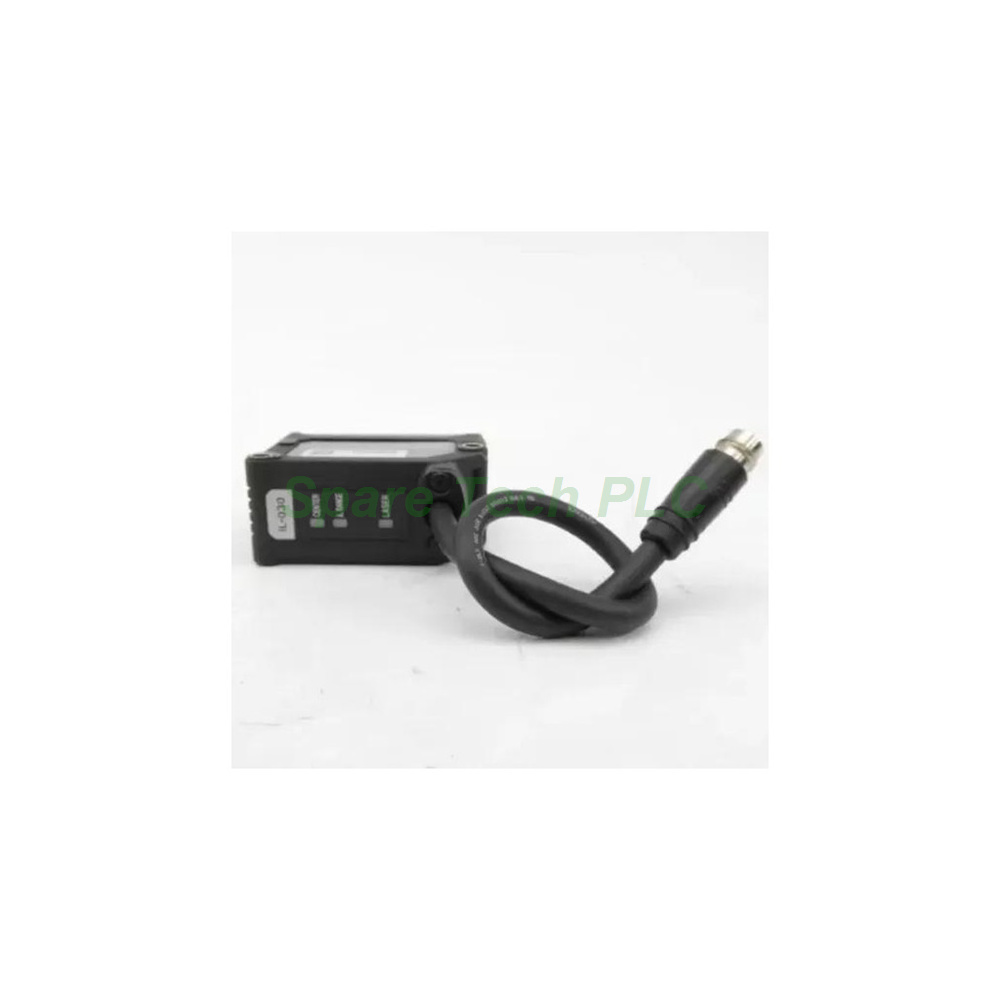

Keyence IL-030 CMOS Laser Sensor Head
Product Introduction
The Keyence IL-030 belongs to the IL series of CMOS laser displacement sensors. This reflective-type sensor head uses triangulation technology for precise distance measurement. Its compact design suits tight spaces in automated production lines. The IL-030 measures targets between 20 and 45 mm with excellent linearity of ±0.1% of full scale. Furthermore, a 1 µm repeatability ensures stable readings for quality control tasks. The sensor head requires an IL series amplifier unit for power and signal processing.
Technical Specifications
Optical Performance
The Keyence IL-030 operates with a red semiconductor laser at 655 nm wavelength. This visible light source simplifies alignment during installation. Laser output is rated at 220 µW, keeping the device within Class 1 safety limits. Specifically, the spot diameter at the reference distance measures approximately 200 × 750 µm, enabling detection of small features and edges.
Measurement Capabilities
The sensor head covers a measurement range of 20 to 45 mm from the reference distance. Highest linearity of ±0.1% of F.S. applies within the 25 to 35 mm segment. Meanwhile, repeatability reaches 1 µm when sampling at 1 ms with a standard white diffuse target. The sampling rate is selectable among 0.33, 1, 2, and 5 ms across four levels.
Temperature Stability
Temperature characteristics are rated at 0.05% of F.S./°C. Additionally, the unit maintains stable output across the operating temperature range from -10 to +50 °C.
Mechanical and Environmental Parameters
Physical Construction
The housing material combines PBT for the main case and SUS304 stainless steel for metal parts. A glass lens cover protects the optical components. Moreover, the cable uses PVC insulation for durability in industrial settings. The Keyence IL-030 weighs approximately 60 g, making it suitable for mounting on moving fixtures.
Protection Rating
The enclosure carries an IP67 rating for dust and water resistance. This protection allows operation in environments where coolant spray or dust may be present. Besides, pollution degree 3 certification covers typical industrial conditions.
Operating Conditions
Ambient temperature range extends from -10 to +50 °C without condensation or freezing. Relative humidity tolerance spans 35 to 85% RH with no condensation permitted. For ambient light, the sensor tolerates incandescent illumination up to 5,000 lux. Vibration resistance meets 10 to 55 Hz standards with 1.5 mm double amplitude across all three axes for two hours each.
Installation Guide
Amplifier Compatibility
The IL-030 sensor head requires connection to an IL series amplifier unit such as the IL-1000 or IL-1550. First, verify that the amplifier is powered off before making connections. Next, insert the sensor head cable into the designated port on the amplifier unit. The amplifier provides both power and signal conversion for the sensor head.
Mounting Position
Position the sensor head so the target surface sits near the 30 mm reference distance. For best linearity results, maintain target placement within the 25 to 35 mm window. The compact head dimensions allow installation in confined spaces. Use appropriate mounting brackets to secure the head against vibration.
Target Considerations
The Keyence IL-030 performs optimally with diffuse reflective targets. However, extremely shiny or transparent surfaces may require adjustment of the sampling rate or target positioning. Therefore, test the setup with actual production parts before full deployment.
Packaging List
IL-030 Sensor Head × 1
Mounting Accessories as Supplied
Instruction Manual
FAQ
What amplifier unit works with the IL-030?
The IL-030 connects exclusively to IL series amplifier units. Compatible models include the IL-1000 (DIN-rail mount) and the IL-1550 (panel mount). These amplifiers supply power and convert sensor signals to analog or digital outputs.
Can the IL-030 detect transparent objects?
Standard reflective sensors struggle with transparent materials. However, the IL-030 may work with some translucent targets if the user adjusts the sampling rate and threshold settings on the amplifier. For glass or clear film, consider a dedicated transparent-object sensor instead.
What is the smallest detectable feature with this sensor?
The 200 × 750 µm spot diameter defines the minimum target size. Features smaller than the spot may not produce reliable readings. For even smaller targets, consider the IL-S series sensor heads with narrower beam profiles.
Does the IL-030 require maintenance?
The sensor head has no user-serviceable parts inside. However, periodic cleaning of the glass lens cover prevents measurement drift from dust or oil accumulation. Use a soft cloth with appropriate optical cleaning solution. Furthermore, inspect the cable for damage during routine maintenance checks.
What is the difference between the IL-030 and IL-065?
Both models share the same CMOS technology and Class 1 laser rating. However, the IL-030 offers a shorter 30 mm reference distance with a 20 to 45 mm range. Meanwhile, the IL-065 provides a 65 mm reference distance and a wider 55 to 105 mm measurement span. The choice depends on the available mounting space and required standoff distance.
