GE IC693MDL643 Input Module 16 Points

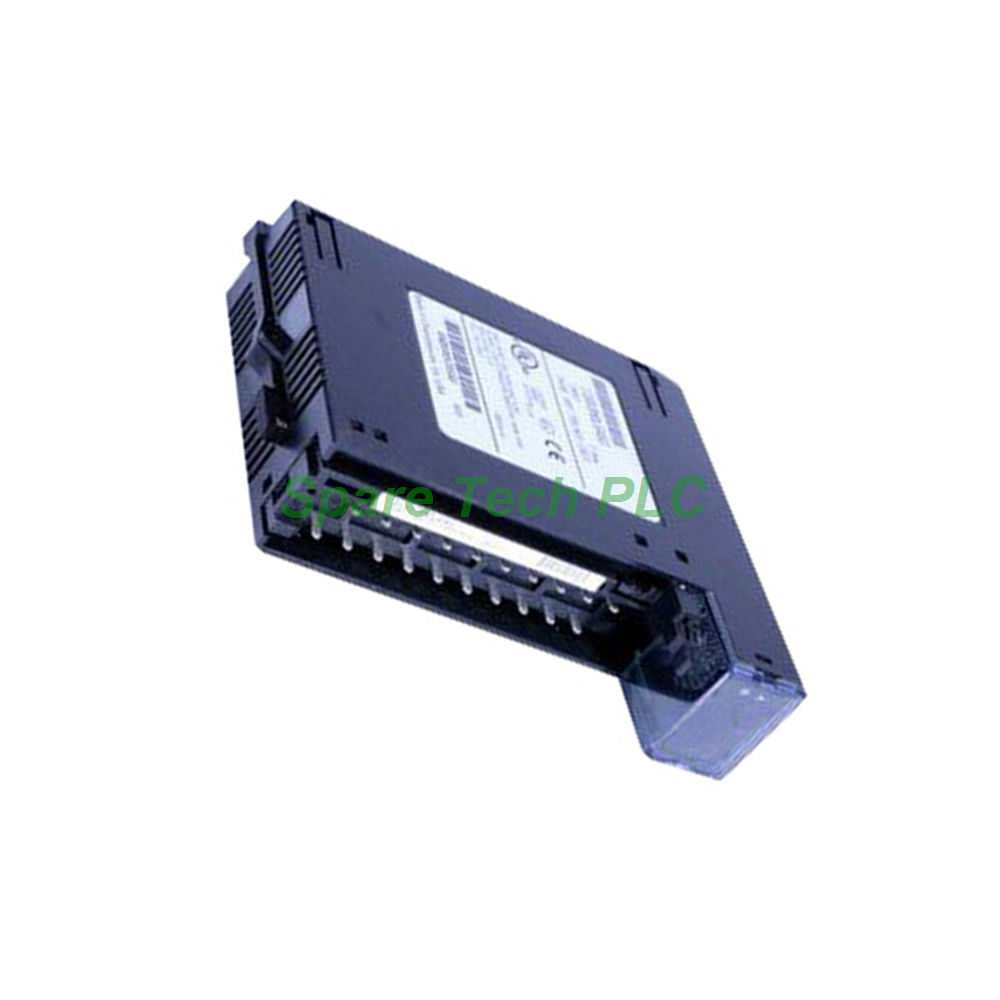

IC693MDL643 GE Fanuc Series 90-30 Input Module

Product Introduction

The IC693MDL643 is a discrete input module from GE Fanuc Automation, designed for the Series 90-30 PLC system. This module provides 16 input points with positive logic, meaning its high-level voltage is more positive than its low-level voltage. It carries a rated voltage of 24 Volts DC and accepts input voltages from 0 to 30 Volts DC, offering flexibility for various field devices. Typical applications include connecting proximity sensors, limit switches, pushbuttons, and other digital sensors to the PLC. The IC693MDL643 delivers fast response with a switching time of just 7 milliseconds, making it suitable for applications that require quick signal detection. A terminal block with 20 mounting screws comes included, simplifying field wiring and installation.

Technical Specifications

The IC693MDL643 operates with negative logic and a rated voltage of 24 VDC. Its input voltage range spans from 0 to 30 VDC, accommodating a wide variety of industrial sensors. Each of the 16 input points draws an input current of 7 milliamps at 24 VDC. The module's trigger voltage falls between 11.5 and 30 VDC, ensuring reliable detection of signals within this band. For power consumption, the IC693MDL643 draws 80 milliamps at 5 VDC and 125 milliamps at 24 VDC from the backplane. Response time is 7 milliseconds typical for both on-to-off and off-to-on transitions, supporting fast-cycle applications. The module includes 16 individual LED indicators, one per input point, which provide instant visual status feedback. A terminal block connector is supplied with the IC693MDL643, secured by 20 installation screws for robust connections.

Input Characteristics and Wiring

Each of the 16 input points on the IC693MDL643 shares a common power source, simplifying wiring configurations. This common-power design means all inputs reference the same voltage supply, reducing the number of wires needed. The positive-logic configuration works well with standard NPN sensors and switches commonly used in industrial environments. The IC693MDL643 accepts input voltages from 0 to 30 VDC, with a trigger threshold between 11.5 and 30 VDC. For reliable operation, ensure that your field devices provide sufficient voltage to exceed the trigger level. The typical input current of 7 milliamps at 24 VDC is compatible with most industrial sensors. When wiring the IC693MDL643, follow the terminal block labeling carefully to avoid misconnections. The terminal block attaches securely with 20 screws, providing strain relief for field cables.

Fast Response Time

The IC693MDL643 stands out for its fast response time of 7 milliseconds. This speed applies to both on-to-off and off-to-on transitions, ensuring consistent performance regardless of signal direction. Such rapid response makes the IC693MDL643 suitable for high-speed counting, positioning feedback, and safety interlock applications where timing is critical. For comparison, standard input modules often have response times of 10 to 15 milliseconds. The IC693MDL643 thus offers a significant advantage in applications that demand quick reaction to changing input states. The fast response is achieved through optimized input filtering circuitry, which balances noise immunity with speed. If your application requires even faster response, consider using high-speed counter modules, but for most discrete input tasks, the IC693MDL643 provides excellent performance.

Power Consumption and LED Indicators

The IC693MDL643 consumes 80 milliamps at 5 VDC and 125 milliamps at 24 VDC from the PLC backplane. This moderate power draw makes it compatible with most Series 90-30 power supplies. When planning your system, calculate total power consumption by summing the requirements of all modules, including the IC693MDL643, to ensure your power supply has adequate capacity. The module features 16 individual LED indicators, one for each input point. These LEDs illuminate when the corresponding input is active, providing immediate visual feedback for troubleshooting and commissioning. The IC693MDL643 also includes a power LED to indicate module health. This combination of diagnostic LEDs helps technicians quickly identify wiring issues or sensor faults without needing a programming terminal.

Installation and Mounting

Installing the IC693MDL643 follows standard Series 90-30 procedures. First, ensure the PLC rack is powered off before inserting the module. Then, slide the IC693MDL643 into an available slot on the Series 90-30 backplane, aligning it carefully with the guide rails. Press firmly until the module seats securely against the backplane connector. Secure the module using the retaining screws at the top and bottom. After installation, connect field wiring to the included terminal block. The terminal block uses 20 installation screws, each accepting wires up to 1.5 mm². Tighten screws to the specified torque value to ensure reliable connections. The IC693MDL643 supports both panel and DIN rail mounting through the Series 90-30 rack system. Always follow the hardware installation manual for detailed mounting instructions and safety guidelines.

Application Scenarios

The IC693MDL643 finds extensive use in factory automation and process control applications. Manufacturing lines employ this module to read status from proximity sensors on conveyor systems, detecting product presence and position. Packaging machines use the IC693MDL643 to monitor pushbuttons and selector switches, enabling operator control and mode selection. Material handling systems leverage the fast response time for counting parts and detecting jams. Additionally, the IC693MDL643 works well in safety interlock circuits, where quick input detection is essential for machine protection. Its 16-point density provides a cost-effective solution for medium-scale digital input requirements. System integrators often choose the IC693MDL643 for its reliability, speed, and compatibility with the widely deployed Series 90-30 platform.

Packaging List

Your shipment of the IC693MDL643 includes:

• One GE Fanuc IC693MDL643 16-point input module

• One terminal block connector (with 20 mounting screws)

• One printed installation guide

• One anti-static protective bag

This package does not include field wiring, sensors, or mounting hardware. Those items must be sourced separately. Additionally, no calibration certificates or warranty documents are enclosed in the box – these are available digitally upon request.

Shipping Information

All IC693MDL643 orders ship via trusted global couriers: FedEx, UPS, and DHL. Each module receives ESD-protective packaging to prevent static damage during transit. Tracking numbers are provided within 24 hours of order dispatch. Standard international delivery takes 3 to 7 business days. Express shipping options are available for urgent requirements. Please ensure your shipping address is correct to avoid delivery delays. All shipments are insured for the full product value.

Frequently Asked Questions

Q1: Does the IC693MDL643 work with both NPN and PNP sensors?
The IC693MDL643 uses positive logic (negative switching), which is compatible with NPN sensors. For PNP sensors, you would need a positive-logic module. Check your sensor type before selecting the IC693MDL643.

Q2: What is the minimum input voltage required for the IC693MDL643 to detect a signal?
The trigger voltage for the IC693MDL643 is between 11.5 and 30 VDC. Inputs below 11.5 VDC may not be reliably detected. Ensure your field devices provide at least 11.5 VDC for proper operation.

Q3: Can I use the IC693MDL643 with AC field devices?
No. The IC693MDL643 is designed for DC inputs only (0 to 30 VDC). For AC field devices, you would need an AC input module from the Series 90-30 family.

Q4: How do I know if an input on the IC693MDL643 is active?
Each of the 16 input points on the IC693MDL643 has a corresponding LED indicator. When the input is active, the LED illuminates. This provides immediate visual confirmation for troubleshooting.

Q5: What is the typical response time of the IC693MDL643?
The IC693MDL643 has a typical response time of 7 milliseconds for both on-to-off and off-to-on transitions. This fast response makes it suitable for applications requiring quick signal detection.
