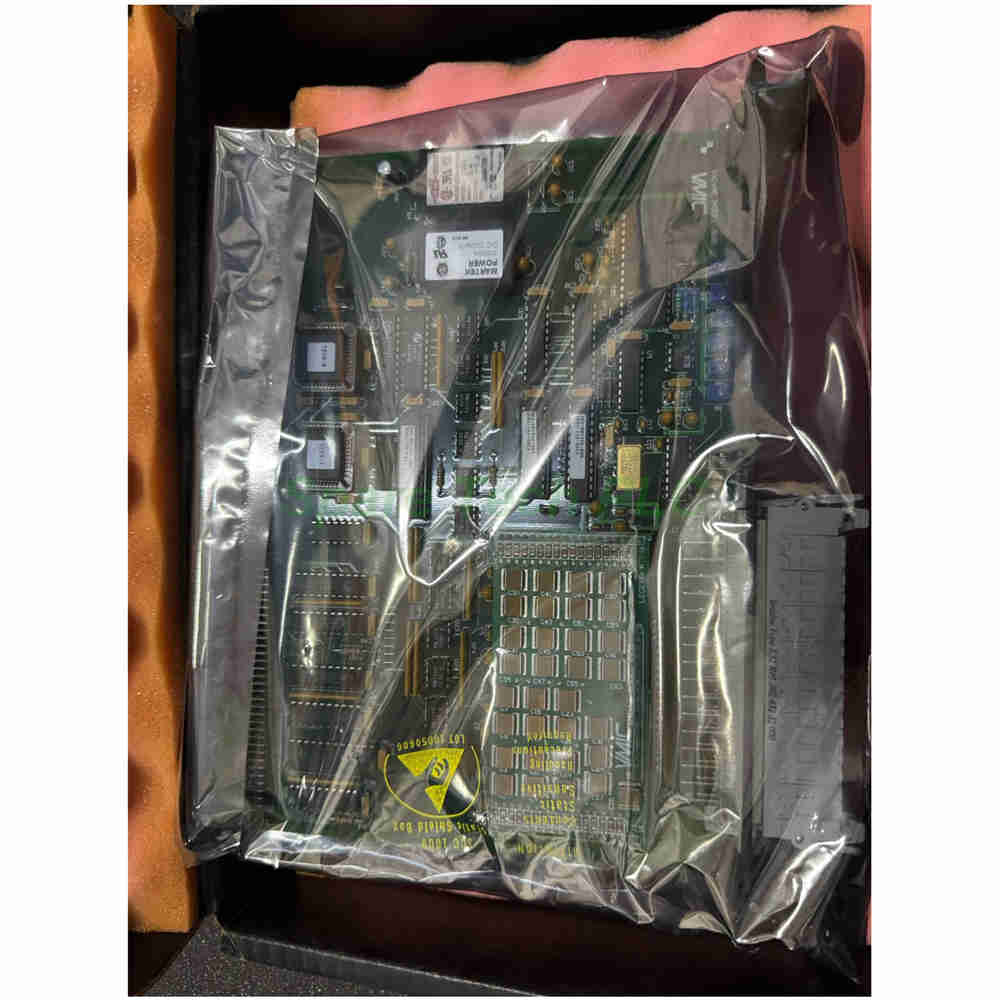

The IC697VAL134 from GE Fanuc Automation serves as a dedicated signal conversion board. Its embedded ADC converter delivers a resolution of 12 bits. This device scans analog input channels automatically without any software after power-up. Therefore, it simplifies integration into existing Series 90-70 systems.
This board operates with 31 single-ended analog input channels. The scanning process runs at a 40 kHz aggregate rate. Specifically, the input range spans from ±50 mV up to ±10 VDC. Additionally, the IC697VAL134 offers input overvoltage protection for enhanced durability.
The converter uses a 12-bit ADC, ensuring precise digital output from analog signals. Moreover, the front panel includes an LED indicator to show input status at a glance. Isolation voltage reaches 1000 VDC, which protects other system components.
For installation, the IC697VAL134 occupies 128 bytes of I/O VMEbus space. Jumpers allow placement on any 128-byte boundary. Furthermore, factory-configured 40 Hz input filters reduce noise interference. Functional categories on this board include the Board ID register, BIT voltage reference, and analog input multiplexing.
Some applications require calibration for optimal performance. Routine maintenance is also recommended to check physical connections and board condition. However, no software configuration is needed during normal operation.
The IC697VAL134 uses discrete wire cables for input connections. Its operating temperature range suits standard industrial environments. The board withstands 1000 VDC isolation without compromising signal integrity. Dimensions follow the standard Series 90-70 form factor. Thus, it fits seamlessly into existing racks.
Before installing, always de-energize the equipment. This step ensures safety for both technicians and the hardware. Next, set the jumpers to select the desired 128-byte VMEbus boundary. Then, insert the IC697VAL134 firmly into an available slot.
After installation, power up the system. The board begins scanning inputs immediately because it requires no software. Finally, verify the front panel LED indicates normal operation. Periodically inspect the board for dust or loose connections.
IC697VAL134 converter board (1 unit)
Discrete wire cable assembly (1 set)
Quick start guide (printed)
Jumper configuration sheet
Note: This package does not include certificates or warranty documents.
All orders ship via FedEx, UPS, or DHL. Delivery times vary by destination but typically range from 3 to 7 business days.
1. Does the IC697VAL134 require software to operate?
No, the IC697VAL134 starts scanning automatically after power-up. It needs no additional software or drivers.
2. What input ranges does this converter board support?
It supports single-ended inputs from ±50 mV to ±10 VDC. For instance, you can use it with low-level sensor signals or higher voltage transducers.
3. How many input channels are available on the IC697VAL134?
The board provides 31 single-ended analog input channels. Additionally, it scans them at a 40 kHz aggregate rate.
4. Can I use the IC697VAL134 with other GE Series 90-70 modules?
Yes, it integrates directly into the Series 90-70 I/O system. Furthermore, its VMEbus interface ensures compatibility with compatible racks.
5. How do I know the board is working correctly?
Look at the front panel LED. When lit properly, it indicates active input scanning. Periodic maintenance also helps verify physical condition.
| Brand Name | GE Fanuc |
| Model No. | IC697VAL134 |
| Product Type | Converter Board |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
