Delta VFD037C53A-21 C2000 5HP 575V AC Drive

VFD037C53A-21 C2000 5HP High-Performance AC Drive with Three Duty Ratings

Product Introduction

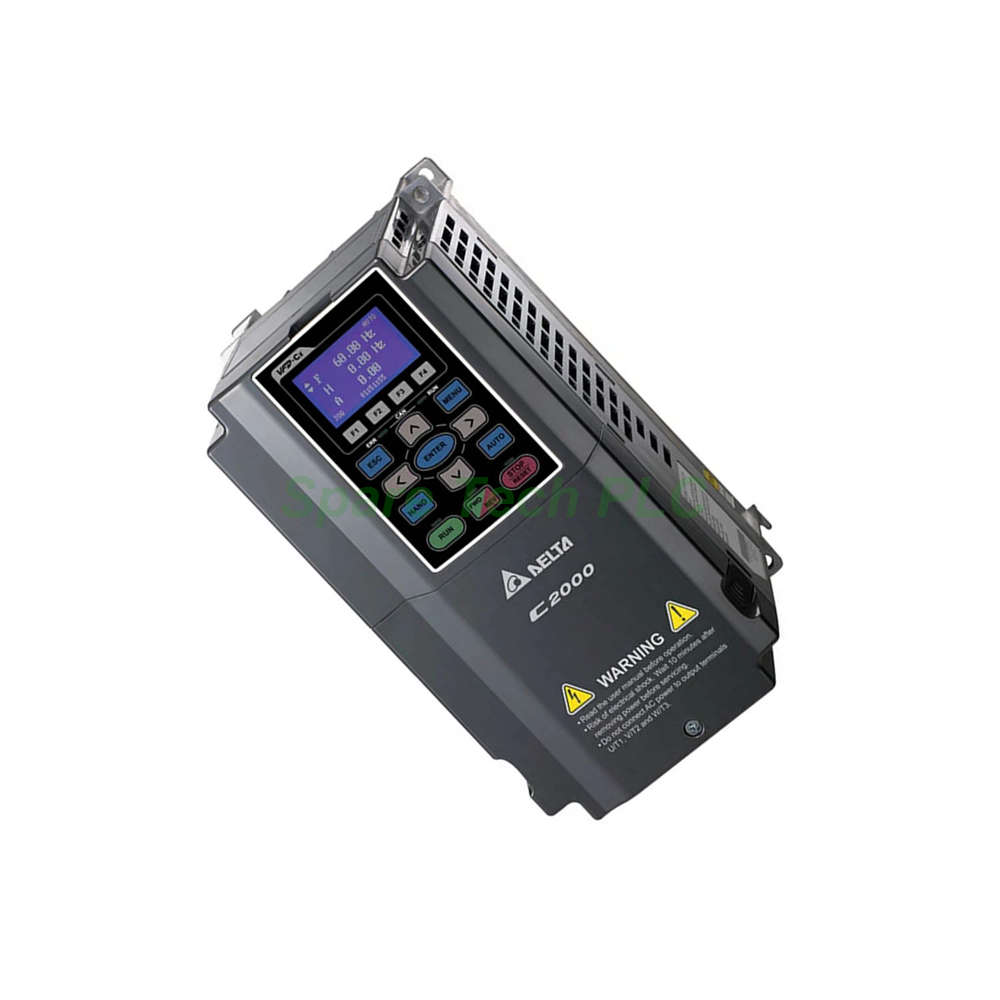

The Delta VFD037C53A-21 is a member of the C2000 series. This advanced AC drive delivers 5HP (3.7kW) at 575V three-phase input. It offers three distinct duty ratings: 6.7A light duty, 5.5A normal duty, and 4.6A heavy duty. The drive supports both induction and permanent magnet motors. Furthermore, it provides speed, torque, and position control modes. This unit excels in demanding applications like cranes, hoists, extruders, and conveyors. Its compact IP20 enclosure suits standard industrial panels. The drive operates reliably at 50°C ambient temperature.

Key Technical Specifications

Three Duty Ratings
The VFD037C53A-21 stands out with three duty ratings for maximum application flexibility. Light duty (6.7A) provides 120% overload for 1 minute every 5 minutes. Normal duty (5.5A) offers 120% for 1 minute and 160% for 3 seconds every 30 seconds. Heavy duty (4.6A) delivers 150% for 1 minute and 180% for 3 seconds every 30 seconds. This triple-rating design lets you optimize the drive for your specific load profile.

Input and Output

• Input Voltage: 575V three-phase

• Output Power: 5HP (3.7kW)

• Light Duty Current: 6.7A

• Normal Duty Current: 5.5A

• Heavy Duty Current: 4.6A

• Frequency Range: 0 ~ 599Hz

Motor Compatibility
This C2000 drive supports both asynchronous (induction) and synchronous (permanent magnet) motors. It handles IM, IPM, and SPM motor types seamlessly. This versatility reduces spare parts inventory across different motor technologies.

Advanced Control Methods

Sensorless Vector Control (SVC)
The VFD037C53A-21 uses sensorless vector control for excellent low-speed torque. It delivers 150% starting torque at 0.5Hz without an encoder. This ensures smooth starts for heavy loads. Speed regulation accuracy reaches ±0.5% in SVC mode.

Closed-Loop Vector Control (PG)
With an optional PG feedback card, the drive performs closed-loop vector control. This delivers ±0.01% speed accuracy. It suits precision applications like synchronized motion and tension control. The drive accepts incremental encoder inputs from various encoder types.

V/f Control
The traditional V/f control mode remains available. This suits simple fan, pump, and conveyor applications. Multi-segment V/f curves allow custom voltage-frequency profiles for non-linear loads.

Control Modes

Speed Control
The VFD037C53A-21 provides precise speed regulation across all modes. The speed control range extends from 0 to 599Hz. This covers both low-speed torque applications and high-speed spindle drives.

Torque Control
The drive supports independent torque control mode. You can set a torque reference via analog input or communication. The drive regulates output torque regardless of speed fluctuations. This suits winding, unwinding, and tension control applications.

Position Control
Position control is a key feature of this C2000 drive. It includes homing, single-point positioning, and multi-point positioning functions. This makes it suitable for indexing tables, material handling, and cut-to-length systems.

Built-in Safety and Protection

Safe Torque Off (STO)
The VFD037C53A-21 includes built-in Safe Torque Off (STO) functionality. This safety feature removes power to the motor safely. It meets international machinery safety standards. You can use STO for emergency stop and door interlocking applications.

Built-in PLC Function
The drive includes a built-in PLC with ladder logic programming. This supports up to 2K steps of user program memory. You can create start/stop sequences, interlocking logic, and alarm handling. This reduces the need for external controllers.

Built-in Braking Chopper
The built-in dynamic braking chopper handles deceleration energy. You can connect an external braking resistor for rapid stops. This is essential for hoisting, centrifuge, and high-inertia applications. The chopper protects the drive from over-voltage during braking.

Communication and Networking

Standard Ports

• RS-485 port with Modbus RTU and ASCII protocols

• USB port for quick configuration and firmware updates

Optional Communication Cards
The modular design supports various fieldbus communication cards:

• Profibus DP

• DeviceNet

• Modbus TCP

• Ethernet/IP

• CANopen

• Profinet

These cards plug into the option slot easily. Consequently, the VFD037C53A-21 integrates into any factory automation network. The built-in CANopen card is not included but can be added as an option.

Connectivity and I/O

Digital Inputs and Outputs
The drive offers multiple programmable digital inputs. These support start/stop, reset, multi-speed, and jog functions. Digital outputs indicate running, fault, speed arrival, and overload status. You can configure inputs as NPN or PNP types.

Analog Inputs and Outputs
Analog inputs accept 0~10V or 4~20mA signals. Connect pressure sensors, temperature transmitters, or remote potentiometers. The analog output provides a 0~10V or 4~20mA signal for speed or torque monitoring. This connects to external meters, PLCs, or SCADA systems.

Encoder Feedback (PG)
Optional PG cards support various encoder types. These include open-collector, line-drive, and push-pull encoders. The card provides encoder power supply. Feedback enables closed-loop control for high-precision applications.

Environmental Adaptability

Robust Design
The VFD037C53A-21 operates at 50°C without derating. Coated circuit boards protect against moisture, dust, and chemical vapors. The coating meets IEC60721-3-3 class 3C2 standards. This ensures reliable operation in demanding industrial environments.

Enclosure and Cooling

• IP20 rating for indoor panel mounting

• Removable cooling fan for easy maintenance

• Hot-pluggable LCD keypad for parameter management

The removable fan simplifies cleaning and replacement. The hot-pluggable keypad lets you copy parameters between drives. This reduces commissioning time for multi-drive systems.

Certifications
The drive carries CE, UL, and cUL certifications. This ensures compliance with international safety and EMC standards. It meets the requirements for global machine builders.

Energy-Saving Features

Auto Energy-Saving Operation
The VFD037C53A-21 includes auto energy-saving function. It optimizes the voltage output based on load conditions. This reduces energy consumption during light-load operation. Therefore, you save electricity costs over time.

Deceleration Energy Backup (DEB)
The DEB function recovers braking energy. It stores or redirects energy during deceleration. This improves overall system efficiency. The built-in braking chopper works in conjunction with DEB.

Fast Response to Impact Load
The drive responds rapidly to sudden load changes. It maintains stable speed and torque. This prevents production interruptions and material waste. It is especially useful in stamping, cutting, and crushing applications.

Installation and Mounting Guidance

Mechanical Dimensions

• Height: 9.84 inches (250 mm)

• Width: 5.12 inches (130 mm)

• Depth: 6.69 inches (170 mm)

• Weight: 6.6 lbs (3.0 kg)

The frame A design saves valuable panel space. Mount the drive vertically on a flat, non-combustible surface. Maintain 50mm clearance above and below for airflow. Allow 25mm side clearance for wiring access.

Electrical Wiring
Follow the torque specifications printed on the drive label. Use properly sized copper conductors. Shielded cables are recommended for analog and communication wiring. Separate control wires from power wires to avoid noise interference. Ground the drive properly for safety and EMC compliance.

Environmental Conditions

• Operating temperature: -10°C to +50°C

• Storage temperature: -40°C to +70°C

• Relative humidity: up to 95% non-condensing

• Altitude: up to 1000m without derating

For altitudes above 1000m, derate the output current by 1% per 100m. The coated circuit boards provide extra protection in humid or dusty locations.

Packaging List

• Delta VFD037C53A-21 AC drive (1 unit)

• LCD digital keypad (1 unit, pre-installed)

• Quick-start installation guide (1 copy)

• Mounting screws and washers (1 set)

• Control terminal connector plugs (1 set)

Note: The full user manual, PLC programming guide, and communication manuals are available for download from Delta's official website.

Shipping and Delivery

All orders ship via FedEx, UPS, or DHL express services. Tracking numbers are provided within 24 hours. Typical delivery takes 3 to 7 business days worldwide. Expedited shipping is available upon request.

Frequently Asked Questions (FAQ)

1. What are the differences between the three duty ratings on the VFD037C53A-21?
Light duty (6.7A) suits variable torque loads like fans and pumps. Normal duty (5.5A) fits general purpose constant torque loads. Heavy duty (4.6A) handles demanding applications with high overload requirements like cranes and extruders.

2. Can I use this C2000 drive with a permanent magnet motor?
Yes, the drive supports both induction motors (IM) and permanent magnet motors (IPM and SPM). Select the appropriate motor type in parameter settings for optimal performance.

3. What is the Safe Torque Off (STO) function and how is it used?
STO safely cuts power to the motor without disconnecting the main supply. It is used for emergency stop circuits and safety door interlocking. It meets ISO 13849 and IEC 61508 safety standards.

4. Does this drive require an external braking resistor?
Not for normal deceleration. The built-in braking chopper handles standard braking. For high-inertia loads or frequent braking cycles, connect an external braking resistor. Refer to the manual for resistor sizing.

5. How do I set up position control on the VFD037C53A-21?
Install an optional PG encoder feedback card. Connect an incremental encoder to the motor. Configure homing, single-point, or multi-point positioning parameters. The built-in PLC can manage position sequences. Full details are available in the position control application guide.
