Delta VFD022EL43A VFD-EL Series 3HP AC Drive

VFD022EL43A 3HP 480V Micro AC Drive

Product Introduction

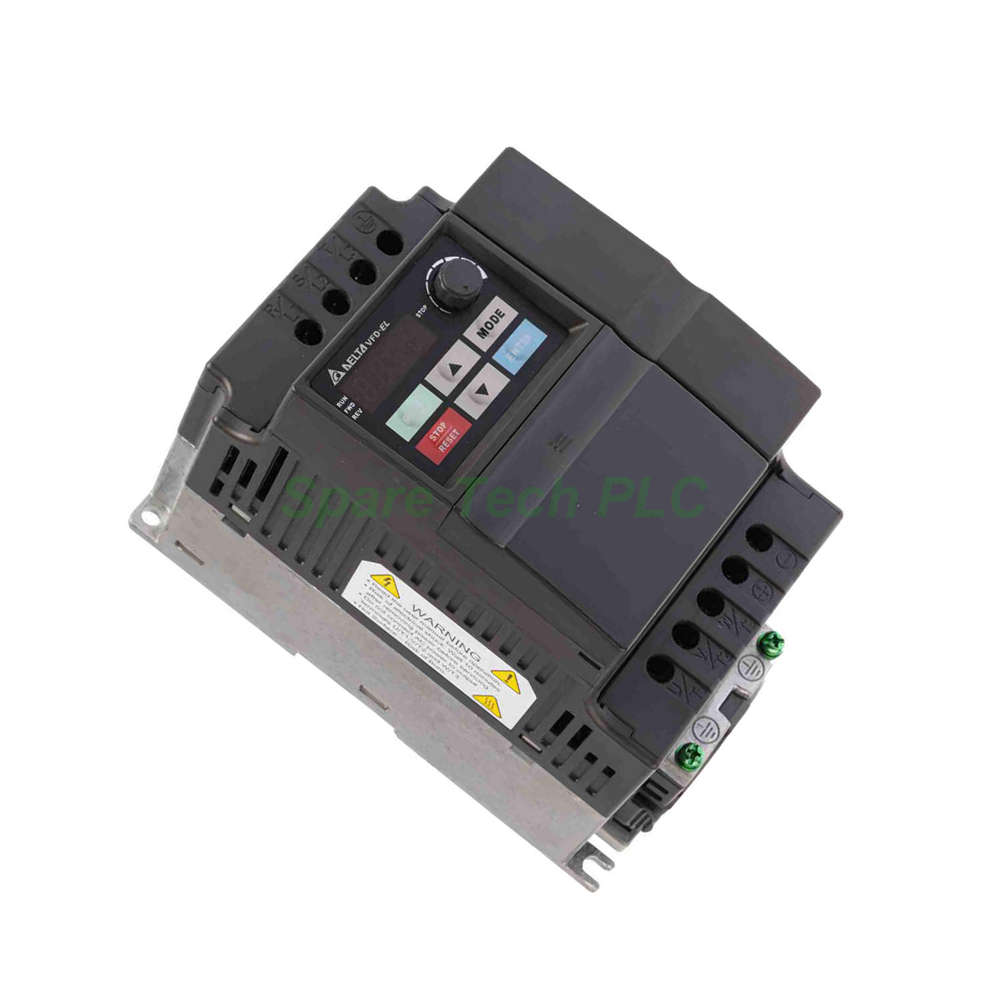

The Delta VFD022EL43A belongs to the versatile VFD-EL Series of micro-type AC drives. This unit delivers 3 Horsepower at 480 Volts AC with a rated output current of 5.5 Amps. It accepts a three-phase input and produces a three-phase output for reliable motor speed control. This drive employs V/Hz (scalar) control, which suits many general-purpose applications effectively. Moreover, it includes a built-in EMI filter and an RFI switch, which simplifies installation and reduces electromagnetic interference. The integrated keypad allows for convenient parameter setting and monitoring without requiring any external accessories. Additionally, the easy DC bus sharing feature supports side-by-side installation for multi-drive systems. Consequently, the VFD022EL43A works well for small conveyors, fans, pumps, and packaging machinery.

Technical Specifications

The VFD022EL43A operates at a nominal 480 Volts AC, with a wide input range from 380 to 480 Volts AC. This drive covers a maximum output frequency of 600 Hertz, accommodating various speed requirements. For braking, it provides both DC injection braking and dynamic braking capabilities. The dynamic braking transistor resides internally, so you do not need an additional external module. For motor control, this unit uses V/Hz (scalar) control, which delivers reliable performance for standard constant torque and variable torque loads. The drive carries an IP20 enclosure rating, making it suitable for installation inside control cabinets. Its frame size is B, with dimensions of 6.85 inches in height, 3.94 inches in width, and 5.35 inches in depth.

Built-in Features for Simplified Installation

The VFD022EL43A includes several built-in features that reduce installation time and external component costs. First, the built-in EMI filter helps suppress conducted electromagnetic interference, so you may not need an additional external filter for many applications. The RFI switch allows you to disable the filter when connecting to an ungrounded power system, which prevents unwanted ground leakage currents. Furthermore, the easy DC bus sharing capability enables multiple drives to share a common DC bus. This feature proves particularly valuable for multi-axis systems where regenerative energy from one drive can power another. The built-in keypad offers full programming and monitoring functions, eliminating the need for a separate operator panel. Additionally, high-precision current detection ensures accurate overload protection for your connected motor.

Mechanical and Environmental Parameters

The Delta VFD022EL43A performs reliably across a wide spectrum of operating conditions. Its operating temperature spans from -10°C to +50°C for normal operation. Storage temperatures can extend from -20°C to +60°C without causing damage. Furthermore, it withstands up to 95% relative humidity, non-condensing. The drive also meets international standards for vibration resistance, ensuring stable performance in industrial environments. However, its IP20 rating indicates it is not waterproof, so it belongs inside a clean, dry, and well-ventilated control panel. The compact design includes an integrated heatsink that manages heat dissipation effectively. Therefore, maintaining proper clearance around the unit ensures optimal thermal performance and long-term reliability.

Installation Guidance

Proper installation of the VFD022EL43A ensures maximum performance and extended service life. First, mount the drive vertically on a flat, non-flammable surface within a suitable enclosure. The compact B frame size permits side-by-side installation using the DC bus sharing feature, so you can place multiple units close together. Maintain a minimum clearance of 50mm above and below the unit to allow proper airflow. Next, select appropriately sized wiring for the input power, motor output, and control connections based on the current ratings. The drive accepts three-phase input and outputs three-phase power to the connected motor. For control wiring, you can use the terminal block, which supports digital and analog I/O signals. The built-in EMI filter requires proper grounding for effective performance, so ensure your grounding connection meets the specifications. Finally, connect a dynamic braking resistor to the built-in brake chopper terminals if your application involves rapid deceleration of high-inertia loads. Always disconnect all power sources before performing any wiring or maintenance procedures.

Packaging List

When you receive the Delta VFD022EL43A, the package includes these items:

1. Delta VFD022EL43A AC Drive unit, 1 piece

2. User manual, printed version

3. Mounting screws and hardware set

4. Terminal cover, pre-installed on the unit

5. Control terminal connector block, supplied separately

Please note that the built-in keypad comes integrated on the drive, so you do not need to purchase any separate operator controls. The EMI filter is also built in, eliminating the need for an external filter in most installations. All components arrive in a sturdy cardboard box with foam protection to prevent damage during transit.

Shipping Information

We dispatch all orders for the VFD022EL43A through major international courier services. Specifically, we use FedEx, UPS, and DHL to ensure fast and reliable delivery worldwide. Shipping costs depend on the gross weight of 1.8 kg and the destination zone. Once we ship the order, we provide a tracking number promptly. Most deliveries reach global destinations within 3 to 7 business days. For urgent requirements, we also offer expedited shipping options upon request.

Frequently Asked Questions

Q1: Does the Delta VFD022EL43A include a built-in keypad?
A1: Yes, this drive comes with an integrated keypad for full programming and monitoring. You do not need to purchase any separate operator controls.

Q2: What control method does the VFD022EL43A use?
A2: This drive employs V/Hz (scalar) control, which provides reliable performance for general-purpose applications such as fans, pumps, and small conveyors.

Q3: Can I install multiple VFD022EL43A drives side by side?
A3: Yes, the compact design and DC bus sharing feature allow side-by-side installation. This arrangement saves panel space and enables energy sharing between drives.

Q4: Does the VFD022EL43A come with a built-in EMI filter?
A4: Yes, this drive includes a built-in EMI filter with an RFI switch. You can disable the filter using the RFI switch when connecting to ungrounded power systems.

Q5: Is the dynamic braking resistor included with the Delta VFD022EL43A?
A5: No, the braking resistor itself is not included. However, the dynamic braking transistor is built into the drive. You only need to purchase an external resistor and connect it to the designated terminals for rapid deceleration applications.
