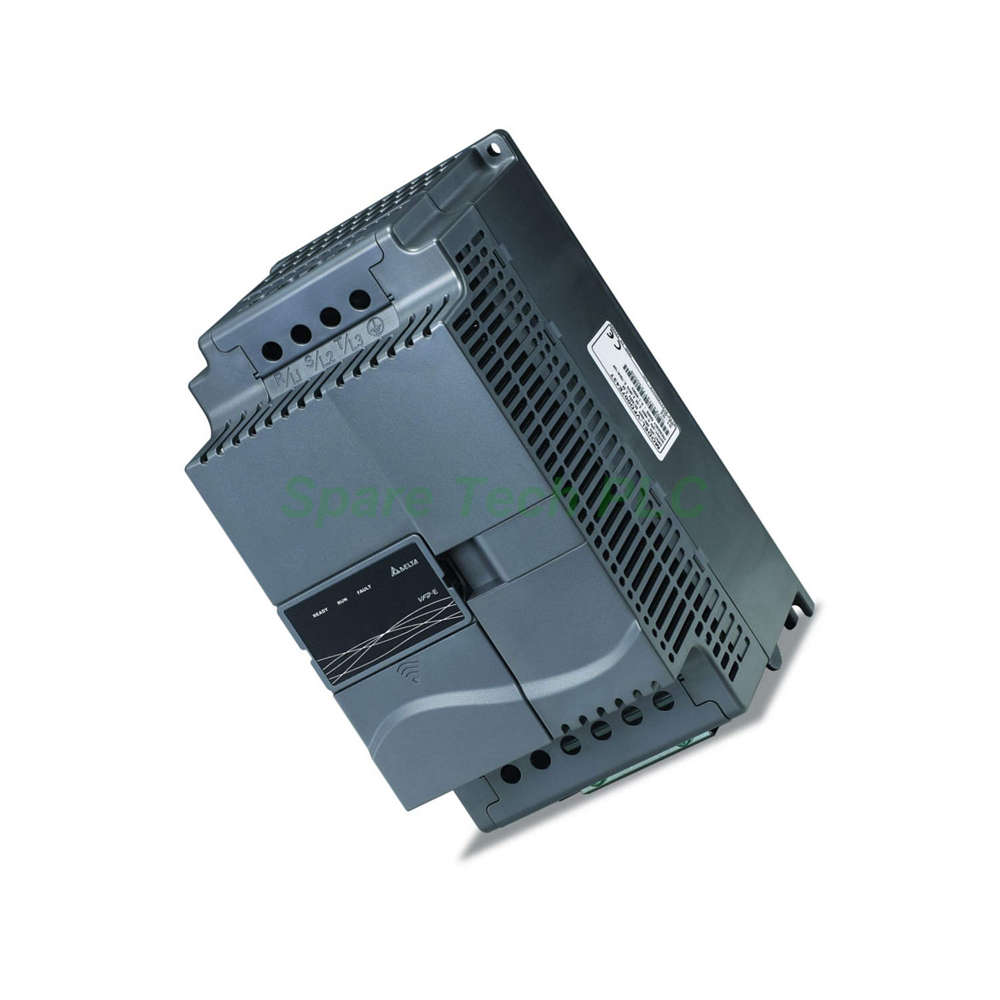

Delta VFD075E43A VFD-E Series 7.5kW AC Drive

VFD075E43A 10HP 460V Sensorless Vector AC Drive

Product Introduction

The Delta VFD075E43A comes from the well-known VFD-E Series of AC micro drives. This unit delivers 10 Horsepower at 460 Volts AC with an output current of 18 Amps. It accepts a three-phase input and provides a three-phase output for variable motor speed control. Sensorless vector technology gives this drive excellent torque performance even without an encoder. Furthermore, the built-in PLC function lets users write and run simple ladder logic programs directly on the drive. Additionally, the modular construction supports various extension cards, which adds flexibility for many applications. Therefore, the VFD075E43A works well for conveyors, pumps, and general machinery control.

Technical Specifications

The VFD075E43A operates at a nominal 480 Volts AC, with a wide range from 380 to 480 Volts AC. This drive can reach a maximum output frequency of 600 Hertz, which suits high-speed spindle applications. For motor control, it offers open-loop vector control as its primary mode, giving accurate speed regulation. Besides that, this drive also provides V/F control for standard motor applications. For braking, it includes DC injection braking and dynamic braking features. The dynamic braking transistor sits inside the unit, so you do not need an external transistor module. This drive carries an IP20 enclosure rating, making it ideal for cabinet installation in industrial settings. Its frame size is C, with compact dimensions of 10.24 inches in height, 4.57 inches in width, and 6.66 inches in depth.

Mechanical and Environmental Parameters

The Delta VFD075E43A performs reliably across a wide range of environmental conditions. It operates between -10°C and +50°C, with derating required above 40°C. Storage temperatures can range from -20°C to +60°C. Moreover, it withstands up to 95% relative humidity, non-condensing. The drive also meets IEC 60068-2-6 standards for vibration resistance. However, its IP20 rating means it is not waterproof, so it belongs inside a clean, dry control panel. The internal fan and heatsink work together to manage heat dissipation efficiently. Therefore, proper ventilation remains essential for long-term reliability.

Installation Guidance

Installing the VFD075E43A properly ensures optimal performance and a long service life. First, mount the drive vertically on a flat, non-flammable surface inside an enclosure. Ensure a minimum clearance of 50mm above and below the unit to allow free airflow. Next, select appropriate gauge wiring for the input power, motor output, and control terminals. The drive accepts 3-phase input and outputs 3-phase to the connected motor. For control connections, you can use the terminal block, which supports digital and analog I/O plus RS-485 communication. Additionally, installing an AC line reactor or EMI filter on the input side reduces harmonic distortion. Finally, connect a dynamic braking resistor to the designated terminals if your application involves high-inertia loads. Always disconnect power before performing any wiring or maintenance work.

Packaging List

When you receive the Delta VFD075E43A, the package contains these items:

1. Delta VFD075E43A AC Drive unit, 1 piece

2. Quick start guide, multilingual printed version

3. Mounting screws and hardware set

4. Terminal cover, already fitted on the unit

5. Control terminal connector block, included separately

6. Dust protection labels for unused openings

Please note that the LED status indicator comes integrated on the drive. However, the digital keypad for programming and monitoring is optional and sold separately. All components arrive in a sturdy cardboard box with foam inserts to prevent transit damage.

Shipping Information

We ship all orders for the VFD075E43A through major global couriers. Specifically, we use FedEx, UPS, and DHL for fast and reliable worldwide delivery. Shipping costs depend on the gross weight of 4.5 kg and the destination zone. Once we dispatch the shipment, we provide a tracking number promptly. Most deliveries reach global destinations within 3 to 7 business days. For urgent requirements, we also offer expedited shipping options on request.

Frequently Asked Questions

Q1: Does the Delta VFD075E43A come with a built-in keypad?
A1: No, the digital keypad is optional and you must purchase it separately. Nevertheless, the drive includes LED status indicators for basic monitoring, and you can also program it via RS-485 communication using a PC or PLC.

Q2: Can I run the VFD075E43A from a single-phase power supply?
A2: No, this model specifically requires a three-phase input supply for correct operation. Single-phase input may cause under-voltage faults and reduce performance significantly.

Q3: What control modes does the Delta VFD075E43A support?
A3: This drive supports sensorless vector control for superior torque performance and V/F control for general-purpose applications. You can select your preferred mode via parameter settings based on your motor type.

Q4: Does the package include a dynamic braking resistor?
A4: No, the braking resistor itself is not included. However, the dynamic braking transistor is already built into the VFD075E43A. You only need to purchase an external resistor and connect it to the designated terminals.

Q5: Which communication protocols work with the Delta VFD075E43A?
A5: The drive supports Modbus RTU through its built-in RS-485 port. Additionally, you can add optional extension cards for other fieldbus protocols like Profibus, DeviceNet, or CANopen for broader system integration.
