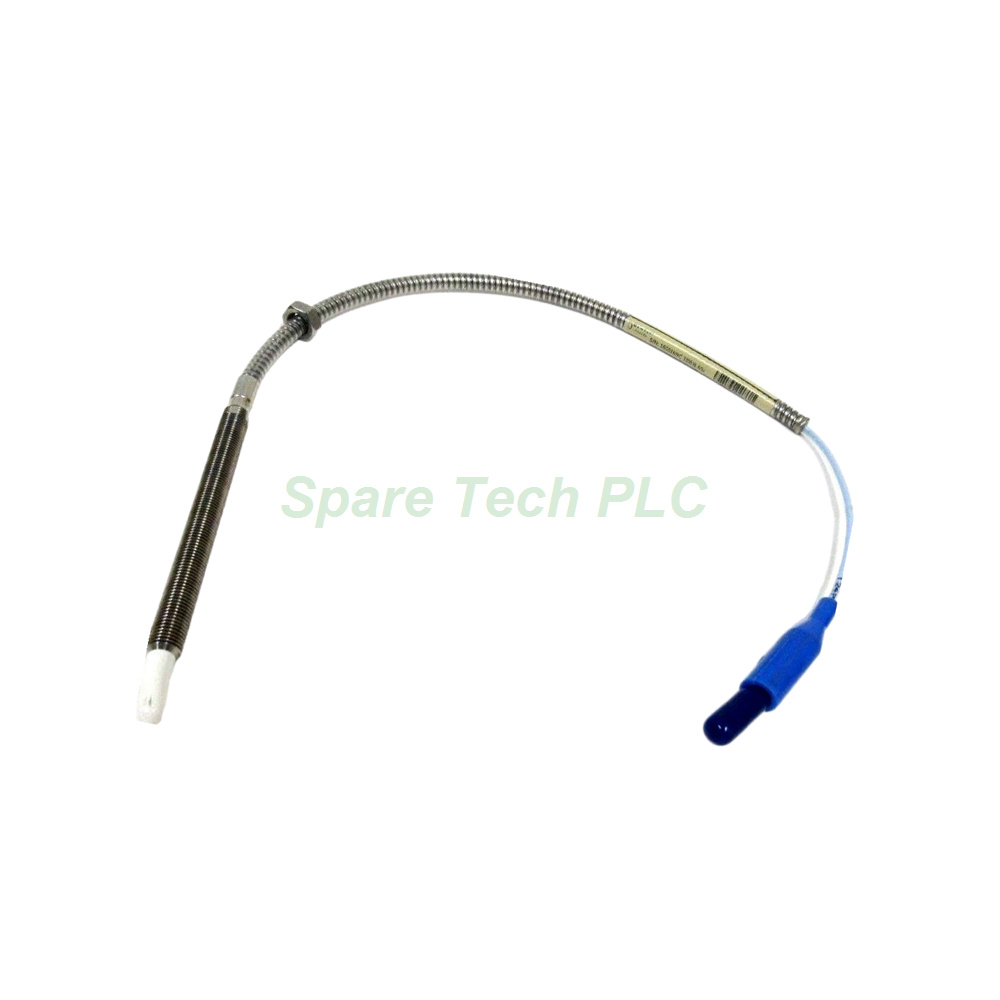

The Bently Nevada 330909-00-50-10-01-05 is a precision-engineered proximity probe from the 3300 NSv series. This probe provides non-contact vibration and position measurements in turbines, compressors, and other critical rotating equipment. It delivers accurate, repeatable data essential for predictive maintenance and machine protection systems.
Furthermore, this model features the "50" overall case length, measuring 5.0 inches, and the "10" total length option, which designates a 1.0-meter (39 inches) cable. The "01" connector option includes a miniature coaxial ClickLoc connector with a connector protector for enhanced reliability in harsh environments. Additionally, the "05" agency approval option confirms compliance with multiple international standards.
The Bently Nevada 330909-00-50-10-01-05 offers consistent electrical and mechanical performance for demanding monitoring applications.
Thread Size: 3/8-24 UNF thread for secure mounting.
Unthreaded Length: 0.0 inches (Option 00).
Overall Case Length: 5.0 inches (Option 50).
Total Cable Length: 1.0 meter (39 inches) (Option 10).
Probe Cable: 75 Ω coaxial cable with FEP insulation.
DC Resistance: The resistance from the center conductor to the outer conductor (RPROBE) is 5.3 ± 0.7 ohms.
Probe Tip Material: Polyphenylene sulfide (PPS) provides excellent durability and chemical resistance.
Probe Case Material: AISI 304 stainless steel (SST) ensures corrosion resistance and structural integrity.
This probe is designed to withstand severe industrial conditions. Its robust construction ensures long-term reliability.
Armor: The cable includes armor for enhanced mechanical protection.
Temperature Range: The 3300 NSv probe has an operating and storage temperature range of -52°C to +177°C (-62°F to +351°F) . Note that exposing the probe to temperatures below -34°C (-30°F) for a sustained period may cause premature failure of the pressure seal.
Pressure Sealing: The probe is designed to seal differential pressure between the probe tip and case using a Viton O-ring. Probes are not pressure tested prior to shipment.
Weight: The probe weighs approximately 14 to 150 g (0.5 to 5.3 oz), depending on configuration.
Proper installation is critical for achieving optimal performance. Follow these guidelines carefully.
Connector Type: The probe uses a miniature coaxial ClickLoc connector with a connector protector. This design ensures secure connections and protection against moisture and contamination.
Recommended Torque: For 3/8-24 probe cases, the maximum rated torque is 33.9 N•m (300 in•lb), while the recommended torque is 11.3 N•m (100 in•lb). For the first three threads, the maximum is 22.6 N•m (200 in•lb) and the recommended is 7.5 N•m (66 in•lb).
Thread Engagement Limits: The maximum length of thread engagement for 3/8-24 probe cases is 0.563 inches.
System Length Compatibility: Make sure to pair this probe with a compatible 3300 NSv extension cable and Proximitor Sensor to achieve the correct total system length for accurate measurement.
Your shipment for the Bently Nevada 330909-00-50-10-01-05 will include the following:
1 x 3300 NSv Proximity Probe (with 1.0m cable, armor, ClickLoc connector, and connector protector)
1 x Installation Guide (Quick Start)
Shipping & Logistics
All orders are processed promptly and shipped via global courier services.
Shipping Methods: FedEx, UPS, DHL.
Packaging: The probe is securely packaged to prevent damage during transit.
1. What is the cable length of the Bently Nevada 330909-00-50-10-01-05?
This model has a 1.0-meter (39 inches) cable length, as indicated by the "10" in its part number. It is a high-quality 3300 NSv proximity probe designed for industrial monitoring applications.
2. What does the "05" agency approval option mean?
The "05" option confirms that this Bently Nevada 330909-00-50-10-01-05 meets multiple agency approval requirements, making it suitable for installations worldwide where compliance is mandatory.
3. What are the temperature limits for this probe?
This probe operates reliably in extreme environments. Its operating and storage temperature range is from -52°C to +177°C (-62°F to +351°F) . However, avoid sustained exposure below -34°C (-30°F) to prevent premature seal failure.
4. What torque should I use when installing this probe?
For the 3/8-24 probe case, the recommended installation torque is 11.3 N•m (100 in•lb). For the first three threads, use 7.5 N•m (66 in•lb). Do not exceed the maximum rated torque of 33.9 N•m (300 in•lb).
5. Is this probe compatible with existing 3300 NSv systems?
Yes, this 3300 NSv probe is fully compatible with the 3300 NSv series extension cables and Proximitor Sensors. Ensure that the total system length (probe + extension cable) matches the Proximitor Sensor's specified total length.
