The Bently Nevada 330130-060-03-05 Extension Cable is a high-quality accessory engineered specifically for the 3300 series and 3300 XL 8 mm Proximitor sensor systems. Manufactured in the U.S.A., this cable is built to extend the reach between the sensor and the monitor while maintaining signal integrity. Furthermore, its rugged design and robust connector system make it suitable for a wide range of industrial applications, from petrochemical plants to power generation facilities.
The 330130-060-03-05 model combines a generous length with robust construction. Specifically, the "060" cable length option provides 6.0 meters (19.7 feet). This facilitates flexible installation between the probe and the Proximitor sensor, even in large machinery configurations.

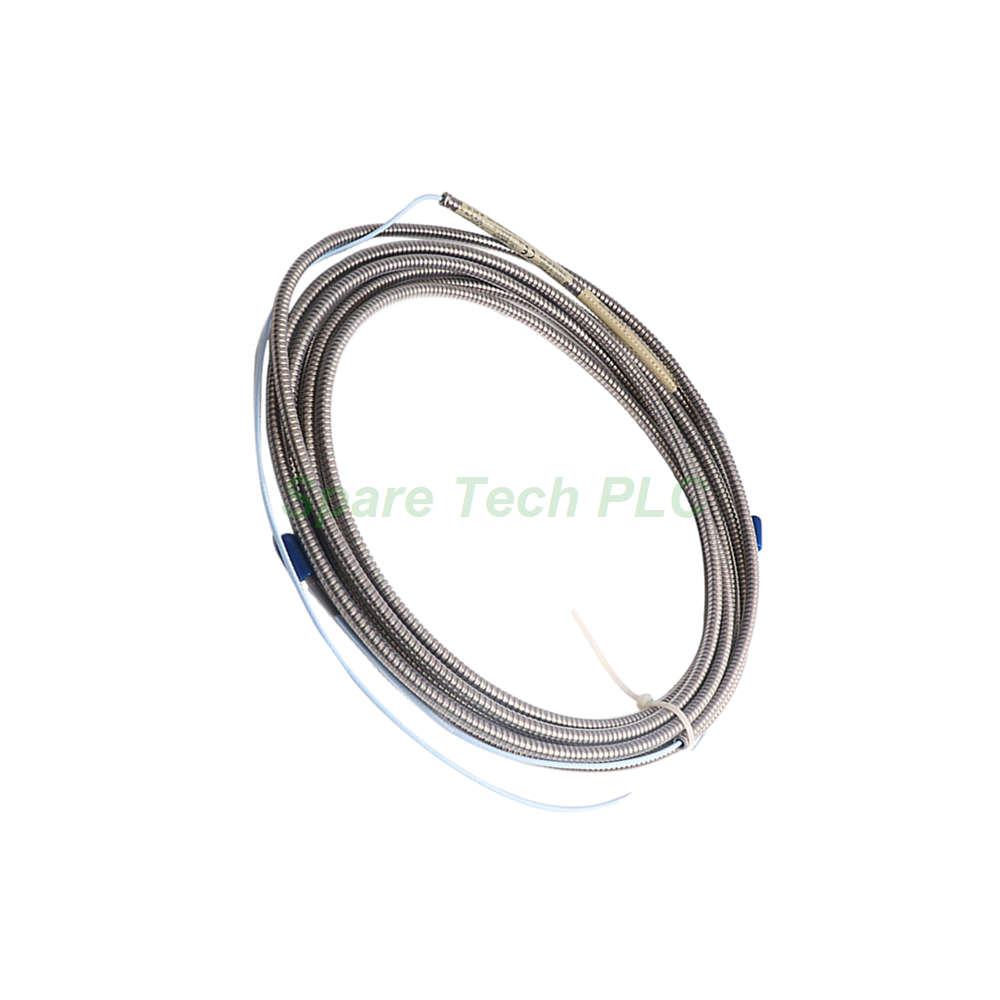

The "03" connector protector and cable option indicates that this is an armored cable with a connector protector. This armoring significantly enhances the cable's durability, offering superior resistance to physical damage and wear from environmental hazards. Consequently, the total weight of the armored extension cable is 0.618 kg, compared to 0.204 kg for the non-armored version. The cable also features corrosion-resistant, gold-plated ClickLoc™ connectors. These connectors provide a secure and reliable connection, minimizing signal loss and ensuring long-term performance.
Safety is a primary concern in industrial monitoring, and the Bently Nevada 330130-060-03-05 meets stringent requirements. The "05" approval option signifies that the cable is certified with CSA, ATEX, and IECEx approvals. Therefore, you can confidently install this cable in potentially hazardous environments.
From an electrical perspective, the 330130-060-03-05 is carefully specified to ensure accurate data transmission. The nominal DC resistance from the center conductor (RCORE) to the center conductor is 1.32 ± 0.21 Ω. Additionally, the resistance from the outer conductor (RJACKET) to the outer conductor is 0.39 ± 0.08 Ω. The typical cable capacitance is 69.9 pF/m (21.3 pF/ft). This electrical stability is crucial for maintaining the overall performance of the 3300 XL system, ensuring that the output signal remains true to the measured vibration or position.
When integrating the 330130-060-03-05 with a Proximitor sensor, note the specific power requirements. The system requires -17.5 Vdc to -26 Vdc without barriers and -23 Vdc to -26 Vdc with barriers. Operation at a more positive voltage than -23.5 Vdc can result in reduced linear range. Therefore, it is important to adhere to these specifications for optimal performance.
The 3300 XL probe and extension cable incorporate significant engineering improvements over previous designs. For instance, a patented TipLoc™ molding method provides a more robust bond between the probe tip and the probe body. Meanwhile, the probe’s cable uses a patented CableLoc™ design, which provides up to 330 N (75 lbf) pull strength for a more secure attachment. Moreover, the system can be ordered with an optional FluidLoc™ cable option to prevent oil and other liquids from leaking out of the machine through the cable’s interior, which is a valuable feature for turbine applications.
Note: Each 3300 XL extension cable includes silicone tape that you can use instead of connector protectors. However, the manufacturer does not recommend silicone tape for applications where the probe-to-extension cable connection will be exposed to turbine oil. For such applications, the connector protector included with this model provides a superior seal.
Performance characteristics are specified for a 3300 XL 8 mm Proximitor sensor, extension cable, and 8 mm probe under standard conditions (between +18˚C and +27˚C, maximum altitude of 2000 meters, with a -24 Vdc power supply and a 10 kΩ load). The system's performance remains stable over a wide range of environmental conditions. For example, the Average Scale Factor (ASF) changes by less than 3% when tested in 93% humidity, in accordance with IEC standard 68 2 3 for up to 56 days. This demonstrates the system's exceptional resistance to moisture and environmental degradation.
Field Wiring: The recommended field wiring is a 3-conductor shielded triad cable with tinned wiring, ranging from 0.2 to 1.5 mm² (16 to 24 AWG). The maximum distance between the 3300 XL Proximitor Sensor and the monitor is 305 meters (1,000 feet). It is essential to consult the frequency response graphs for signal rolloff at high frequencies when using longer field wiring lengths.
Mechanical Installation: When installing, ensure the connectors are properly mated and tightened to maintain the environmental seal. The probes are designed with a Viton® O-ring to seal differential pressure between the probe tip and case. However, probes are not pressure tested prior to shipment, and it is recommended to contact the custom design department if a pressure seal test is required.
1 x Bently Nevada 330130-060-03-05 Armored Extension Cable (6.0 meters)
1 x Silicone Tape (included as per manufacturer standards)
Shipping: All orders are shipped via reputable couriers including FedEx, UPS, and DHL to ensure fast and secure delivery to your location.
1. Is the Bently Nevada 330130-060-03-05 compatible with all 3300 series probes?
Yes, the 330130-060-03-05 accepts one non-contacting 3300-series 5 mm, 3300 8 mm, or 3300 XL 8 mm Proximity Probe and Extension Cable, making it a versatile accessory for this product line.
2. What does the "03" designation mean in this product number?
In the 330130-060-03-05 model, the "03" option signifies an armored cable with a connector protector, which provides enhanced mechanical protection and sealing for the connection.
3. Can this extension cable be used in hazardous areas?
Yes, the 330130-060-03-05 includes the "05" approval option, meaning it holds CSA, ATEX, and IECEx certifications, making it suitable for use in many hazardous locations.
4. What is the typical capacitance of this extension cable?
The typical capacitance is 69.9 pF/m (21.3 pF/ft), which is a key parameter for maintaining signal integrity and ensuring the system operates within its specified linear range.
5. Should I use the included silicone tape instead of the connector protector?
The manufacturer does not recommend using the silicone tape for applications where the connection is exposed to turbine oil. For such applications, the robust connector protector on the 330130-060-03-05 is the preferred method for protecting the connection.
| Brand Name | |
| Model No. | 330130-060-03-05 |
| Product Type | Extension Cable |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
