Bently Nevada 330930-060-01-00 Extension Cable
Product Introduction

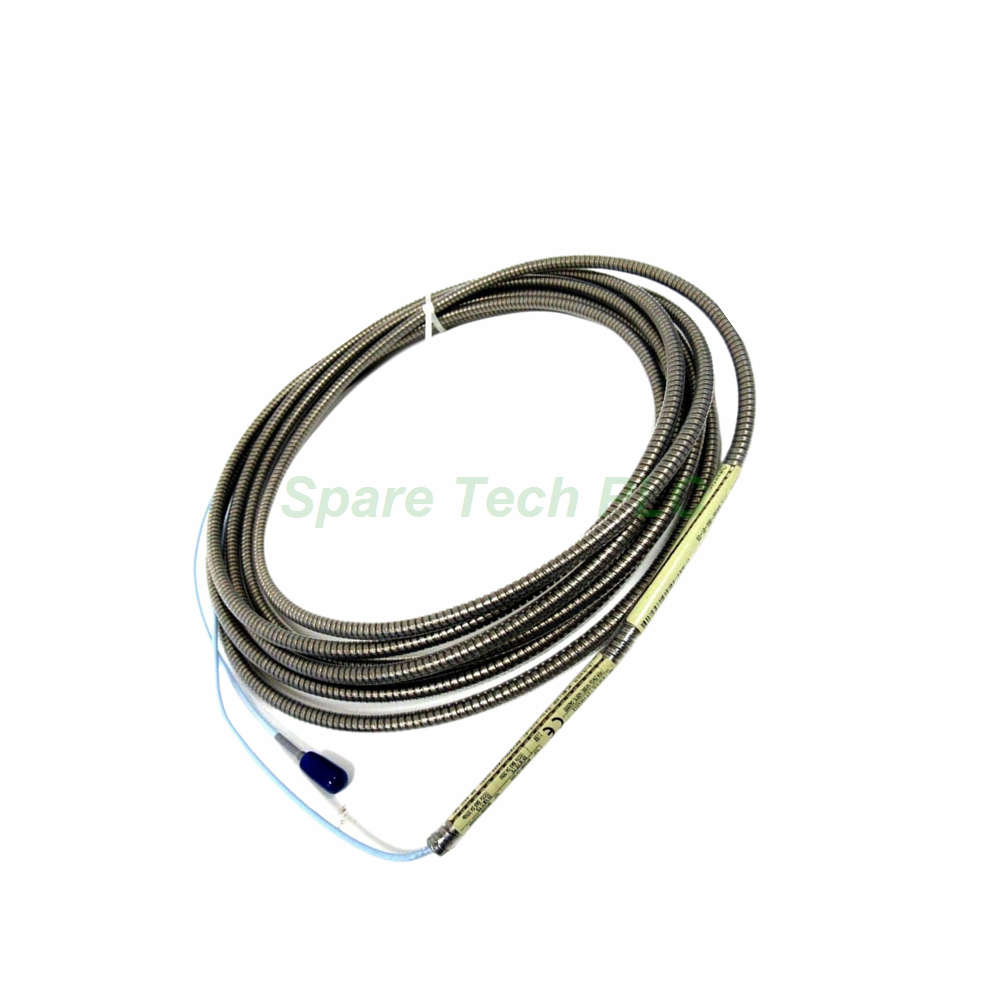

The 330930-060-01-00 is an extension cable from the Bently Nevada 3300 NSv series. This cable links a proximity probe to a Proximitor Sensor. Moreover, it transmits vibration and position signals in turbines, compressors, and other rotating machinery.
Plant engineers select this model for its armored FEP-jacketed design. The 330930-060-01-00 offers a 6.0 metre length, which equals 19.7 feet. In addition, the stainless steel armor resists abrasion and crushing. Furthermore, the FEP outer jacket adds chemical and moisture protection.
Technical Specifications
The extension cable uses 75 Ω coaxial construction with fluoroethylene propylene (FEP) insulation. Its armor is flexible AISI 302 stainless steel with an FEP outer jacket. Additionally, the connectors are made of gold-plated brass.
Main parameters appear below:
Cable Length: 6.0 metres (19.7 feet) (red)
Connector and Cable Option: Stainless steel armor with FEP jacket (blue)
Agency Approval: Not Required (red)
Capacitance: 69.9 pF/m (21.3 pF/ft) typical (blue)
Center Conductor Resistance: 0.220 Ω/m (0.067 Ω/ft)
Shield Resistance: 0.066 Ω/m (0.020 Ω/ft)
Operating and Storage Temperature: -51°C to +177°C (blue)
The 6.0 metre length gives a center conductor resistance near 1.32 ohms. Meanwhile, the shield resistance stays near 0.40 ohms. These values help technicians confirm cable health after installation.
Mechanical and Environmental Parameters
Tensile strength reaches 220 N (50 lb) from probe case to probe lead. The same 220 N (50 lb) rating applies at the probe lead to extension cable connectors. Moreover, the probe case to stainless steel armor joint also holds 220 N (50 lb).
Operating and storage temperature spans -52°C to +177°C. The FEP insulation resists oil, moisture, and most industrial chemicals. Besides, the flexible AISI 302 armor shields the cable from mechanical damage.
Field wiring accepts 0.2 to 1.5 mm² (16 to 24 AWG). With ferrules, the range narrows to 0.25 to 0.75 mm² (18 to 23 AWG). Bently Nevada recommends a three-conductor shielded triad cable. The maximum field wiring length between the 3300 XL NSv Proximitor Sensor and the monitor is 305 metres (1,000 feet).
Linear range reaches 1.5 mm (60 mils). This range begins about 0.25 mm (10 mils) from the target and extends to 1.75 mm (70 mils). The recommended gap setting is 1.0 mm (40 mils).
Installation Guide
First, confirm the cable length and connector type against the system drawing. Next, add the extension cable length and the probe length together. Then, check that the total matches the Proximitor Sensor total length.
After that, mate the ClickLoc connectors until they lock. Route the armored cable away from sharp edges and hot surfaces. Finally, secure it with clamps and measure the DC resistance.
Packaging List
1 × Bently Nevada 330930-060-01-00 Extension Cable
1 × Stainless steel armor sleeve with FEP jacket
1 × Anti-static protective bag
1 × Foam-lined shipping carton
Shipping methods: Fedex, UPS, DHL.
FAQ
Q1: What is the length of the 330930-060-01-00 cable?
A: The cable measures 6.0 metres, or 19.7 feet.
Q2: Does this extension cable include an FEP outer jacket?
A: Yes, it uses stainless steel armor with an FEP jacket.
Q3: What is the typical capacitance of this cable?
A: The typical capacitance is 69.9 pF/m, or 21.3 pF/ft.
Q4: What is the recommended gap setting?
A: The recommended gap setting is 1.0 mm, or 40 mils.
Q5: How should I ship this Bently Nevada extension cable?
A: Use Fedex, UPS, or DHL for safe and tracked delivery.
