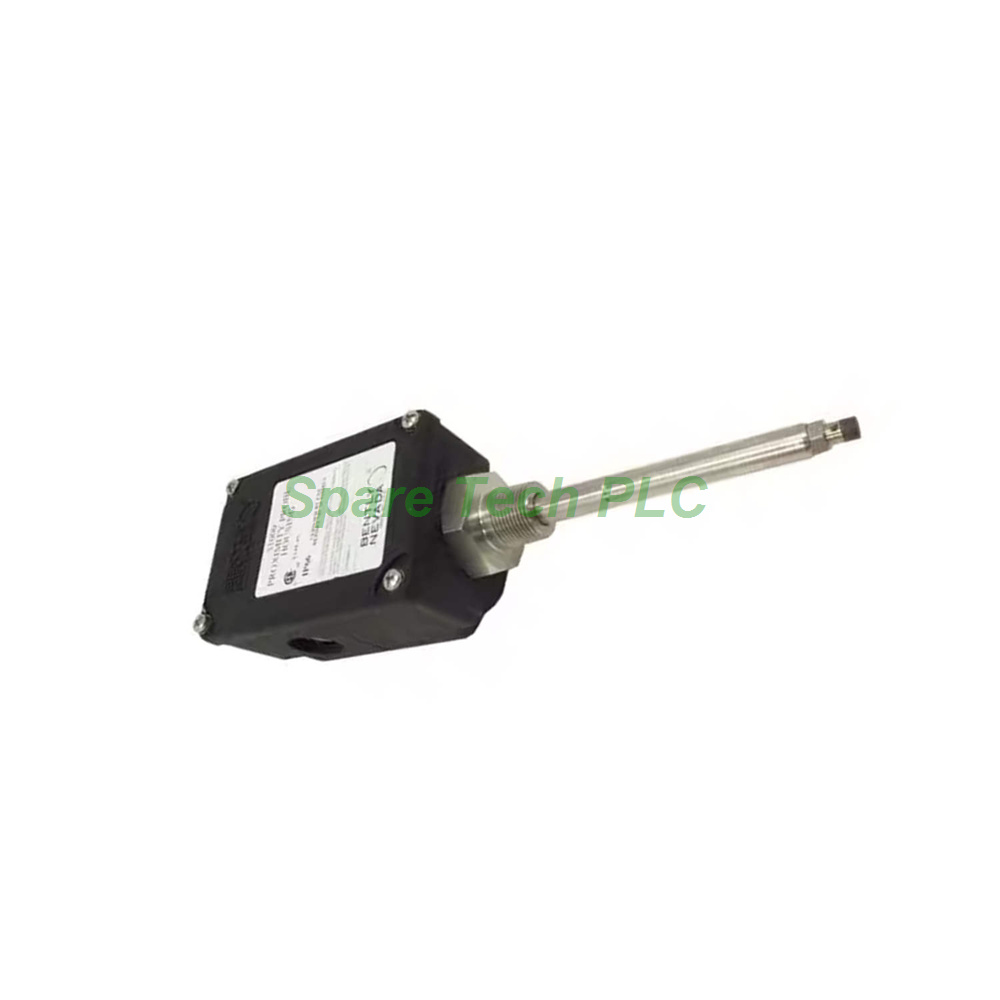

Bently Nevada 31000-00-00-00-070-03-02 Housing

Product Introduction

The 31000-00-00-00-070-03-02 belongs to the Bently Nevada 31000 series of proximity probe housings. This assembly provides a mechanical interface for vibration and position measurement in rotating machinery. It ships without a probe or probe cable, so users can install their own 3300 XL 8 mm probe. The housing seals differential pressure between the probe tip and the main body when used with a compatible 3300 XL 8 mm probe.

Technical Specifications

The 31000-00-00-00-070-03-02 includes several configurable options. First, the probe option is 00, which means no probe is required. Next, the probe cable length option is 00, so no probe cable is included. The standoff adapter option is 00, which means no standoff adapter. Additionally, the probe penetration option is 070, equal to 7.0 in. The fittings option is 03, which includes two plugs, one 3/4-14 NPT fitting, one 3/4-14 to 1/2-14 NPT SST reducer, and one cable seal grip with grommets for cable sizes 1/8 to 3/16 inches, 1/4 to 5/16 inches, and 5/16 to 3/8 inches. Finally, the mounting thread option is 02, a 3/4-14 NPT thread required when ordering a standoff adapter.

Mechanical and Environmental Parameters

The housing material is glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic with conductive fibers. The sleeve material and retaining chain use AISI 304 stainless steel. Moreover, the outer sleeve and exterior screws are AISI 303 stainless steel. The O-ring material is Neoprene. The recommended torque for the retaining nut is 29.4 N·m (260 in·lb). The temperature rating spans -51°C to +105°C (-60°F to +221°F). The weight is 1.2 kg (2.6 lb) typical.

Protection ratings include a Type 4X rating certified by CSA. Furthermore, the IP66 rating was verified by SC115582-1 (e) 106. The CENELEC standard EN50014 covers electrostatic dissipation for plastic materials in hazardous areas. The housing impact strength was certified by BASEEFA to withstand two separate 4 Joule (3.0 ft·lb) impacts at -39°C and at 115°C. Samples also withstood a 7 Joule (5.2 ft·lb) impact at ambient room temperature. In addition, the housing supported 912 N (205 lb) placed about 38 mm from the unsupported end during a typical strength test.

Pressure Sealing and Installation Notes

The 31000/32000 assembly seals differential pressure between the probe tip and the housing main body when used with a 3300 XL 8 mm probe. The internal sealing material of the probe case is a Viton O-ring. Meanwhile, the O-ring between the sleeve and the housing is Neoprene. The plastic housing seals against hose-directed water per NEMA 4X and IP66 standards. However, it is not designed to resist internal or external pressure. Probes are not pressure tested before shipment. Therefore, contact the custom design department if a pressure seal test is required.

Installation Guide

First, verify the mounting thread is 3/4-14 NPT. Next, install the cable seal grip with the correct grommet for your cable size. Then, insert a compatible 3300 XL 8 mm probe into the housing. After that, tighten the retaining nut to 29.4 N·m (260 in·lb). Finally, connect the probe cable to the extension cable and monitor system. Ensure the grounding liner is in place before fastening the cover.

Packaging List

• 1 x Bently Nevada 31000-00-00-00-070-03-02 Proximity Probe Housing

• 1 x 3/4-14 NPT Fitting

• 1 x 3/4-14 to 1/2-14 NPT SST Reducer

• 2 x Plugs

• 1 x Cable Seal Grip with Grommets

• 1 x Retaining Chain

• 1 x Neoprene O-Ring

• 1 x Installation Sheet
