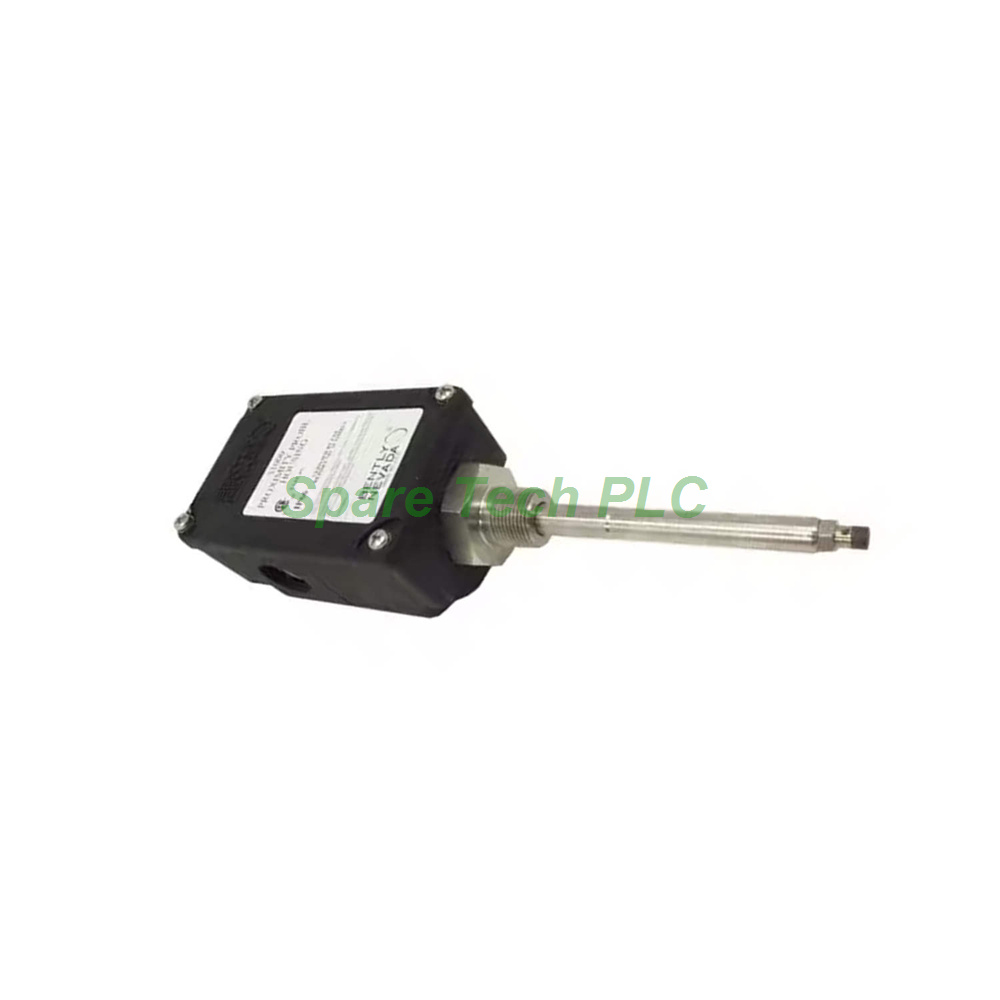

Bently Nevada 32000-16-05-08-070-03-02 Probe Housing

32000-16-05-08-070-03-02 Bently Nevada 32000 Metric Housing

Product Introduction for Bently Nevada 32000 Metric Housing

The Bently Nevada 32000-16-05-08-070-03-02 belongs to the 32000 Metric Proximity Probe Housing series, explicitly designed for metric measurement applications. This U.S.-manufactured unit comes factory-configured with a 3300 XL 8 mm probe. Moreover, it includes an 80 mm standoff adapter that provides extra clearance for challenging mounting scenarios. Its advanced sealing and rugged build make it a top choice for protecting critical turbomachinery sensors.

Technical Specifications of the 32000 Metric Probe Enclosure

The 32000-16-05-08-070-03-02 incorporates a 3300 XL 8 mm probe with a factory-installed connector. Specifically, the probe cable measures 0.5 meters in length. In addition, this configuration features an 80 mm standoff adapter alongside a fixed probe penetration of 70 mm. The fittings package includes two plugs, one M20 fitting, and a cable seal grip with grommet for armored probe cable. Meanwhile, the mounting thread is 3/4-14 NPT, which becomes mandatory when ordering any standoff adapter option.

For environmental protection, this 32000 housing achieves a Type 4X rating certified by CSA. Similarly, it holds an IP66 rating verified by SC115582-1 (e) 106. Furthermore, it complies with CENELEC standard EN50014 for electrostatic dissipation in hazardous locations. The housing material is glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic containing conductive fibers. Meanwhile, the sleeve and retaining chain use AISI 304 stainless steel. Likewise, the outer sleeve and exterior screws are crafted from AISI 303 stainless steel. A Neoprene® O-ring completes the comprehensive sealing system.

Mechanical and Environmental Ratings for Bently Nevada 32000-16-05-08-070-03-02

This probe enclosure demonstrates outstanding impact resistance across extreme temperatures. For instance, BASEEFA has certified its ability to withstand two separate 4 Joule (3.0 ft·lb) impacts at -39°C (-38°F) and at 115°C (239°F). Additionally, CSA verified that samples can endure a 7 Joule (5.2 ft·lb) impact at ambient room temperature. The 32000 series housing typically supports 912 N (205 lb) placed 38 mm from the unsupported end.

The operating temperature range extends from -51°C to +105°C (-60°F to +221°F) . Consequently, the 32000-16-05-08-070-03-02 performs reliably in environments with severe thermal cycling. The recommended tightening torque for the retaining nut is 29.4 N·m (260 in·lb) . Overall, the complete metric probe housing weighs approximately 1.2 kg (2.6 lb) .

Installation Guidance for the 32000-16-05-08-070-03-02 Probe Housing

Installing the Bently Nevada 32000-16-05-08-070-03-02 requires attention to the standoff adapter and mounting thread. First, clean the mounting surface and threads thoroughly before beginning. Next, engage the 3/4-14 NPT thread carefully with the mating fitting. Then, apply the recommended torque of 29.4 N·m to the retaining nut for a secure seal. This step ensures leak-proof performance and maintains the IP66 integrity.

When routing the probe cable, use the supplied cable seal grip with grommet. This component preserves the environmental seal around the armored cable. Additionally, the 80 mm standoff adapter provides valuable clearance for specific machine configurations. For optimal vibration measurement, mount the outer sleeve with its axis parallel to the horizontal plane. Finally, verify the 0.5 m probe cable length adequately reaches your monitoring system before final tightening.

Packaging List for Bently Nevada 32000 Metric Enclosure

Your purchase of the Bently Nevada 32000-16-05-08-070-03-02 includes these complete components:

• 1 x 32000 Metric Proximity Probe Housing assembly

• 1 x 3300 XL 8 mm probe with connector (pre-installed)

• 1 x 80 mm standoff adapter (factory-installed)

• 2 x Plugs for unused ports

• 1 x M20 fitting

• 1 x Cable seal grip with grommet for armored cable

• Mounting hardware and retaining chain

We carefully package all items to prevent damage during transit. Each component is brand new and sourced directly from Bently Nevada's original production line.

Shipping Information for the 32000-16-05-08-070-03-02 Unit

We ship this 32000-16-05-08-070-03-02 housing worldwide through premier logistics partners. Your order will depart via FedEx, UPS, or DHL for prompt and secure delivery. Moreover, we will email your tracking number as soon as the shipment leaves our warehouse.

Frequently Asked Questions About the 32000 Series Probe Housing

1. Which probe works with the 32000-16-05-08-070-03-02?
This Bently Nevada 32000 housing accepts a 3300 XL 8 mm probe with a connector, as indicated by option code 16.

2. What standoff length does this 32000 metric enclosure include?
The 32000-16-05-08-070-03-02 comes with an 80 mm standoff adapter for extra mounting clearance.

3. Can I install this 32000 series probe housing outdoors?
Yes, its IP66 and Type 4X ratings guarantee full protection against dust, water, and corrosion.

4. Is this Bently Nevada 32000 housing safe for hazardous area use?
Absolutely. It meets CENELEC standard EN50014 for electrostatic dissipation in hazardous locations.

5. What is the probe penetration depth on this 32000-16-05-08-070-03-02 unit?
The probe penetration is fixed at 70 mm for this particular metric probe housing configuration.
