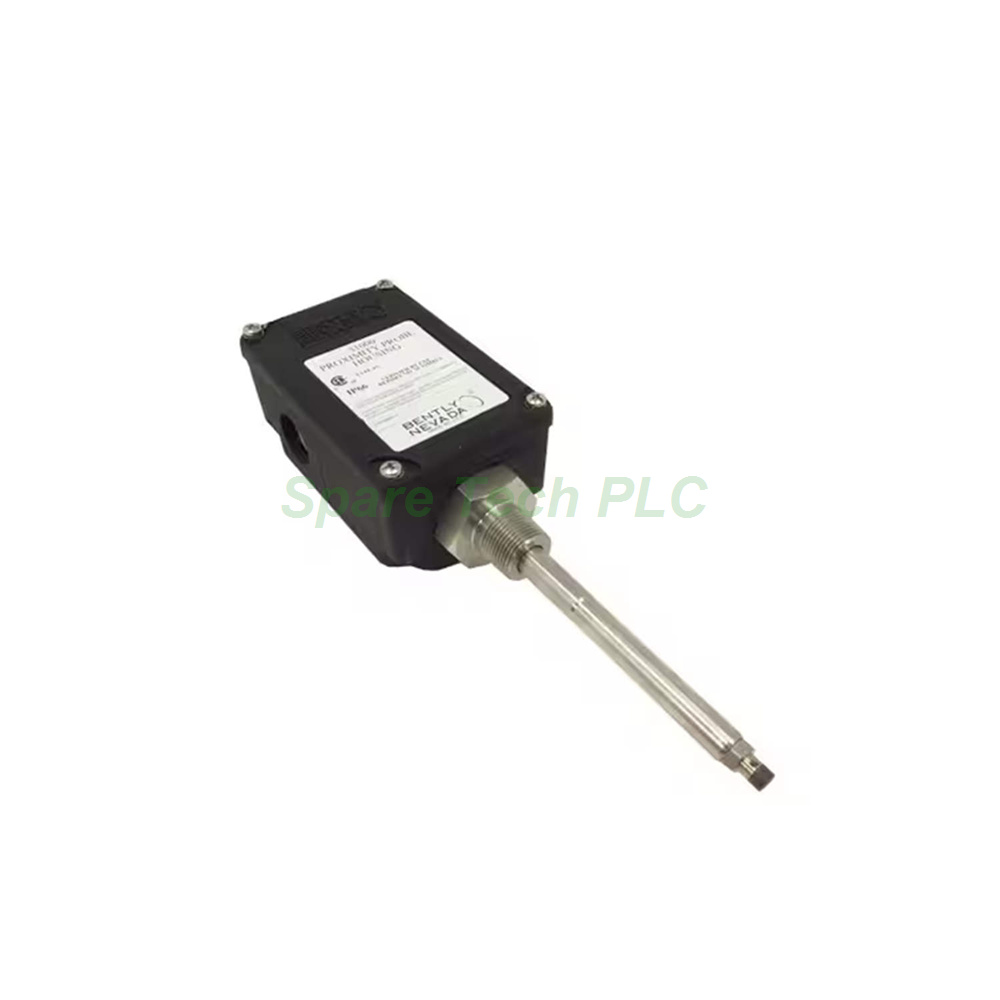

The 32000-16-05-00-080-03-02 is a fully-equipped housing solution from Bently Nevada within the 31000 series. This model comes complete with a 3300 XL 8 mm probe and a 0.5-metre cable. Therefore, it eliminates the need for separate component sourcing. It offers 80mm probe penetration and includes no standoff adapter. Consequently, this configuration suits standard casing thicknesses perfectly.
This housing meets the American Petroleum Institute (API) 670 Standard for externally mounted probe housings. Thus, it delivers reliable performance in critical turbomachinery monitoring applications. The external adjustment feature allows technicians to set the probe gap without opening the machine casing. As a result, this significantly reduces maintenance downtime and improves operational efficiency.
The product number 32000-16-05-00-080-03-02 clearly defines each selected option. First, the "16" probe option specifies the 3300 XL 8 mm probe with a connector. This ensures compatibility with Bently Nevada monitoring systems. Second, the cable length option "05" provides a 0.5-metre (20-inch) cable. This length is ideal for installations where the junction box is located close to the housing.
Third, the standoff adapter option "00" indicates that no standoff adapter is included. This configuration is appropriate when the machine casing has standard thickness. Moreover, the penetration option "080" delivers an 80mm depth, which suits most industrial turbomachinery casings.
The fittings option "03" is a notable feature of this model. Specifically, it includes two plugs, one M20 fitting, and one cable seal grip with grommets designed for armored probe cables. This specialized fitting ensures a secure and sealed entry point for reinforced cables. Additionally, it provides extra mechanical protection and superior environmental sealing.
This housing carries the same robust certifications as other models in the 31000 series. For instance, it holds a Type 4X rating certified by the Canadian Standards Association (CSA). Furthermore, the IP66 rating verified by SC115582-1 (e) 106 guarantees protection against powerful water jets and dust ingress.
The CENELEC standard EN50014 rating confirms safe electrostatic dissipation for plastic materials in hazardous locations. Consequently, the 32000-16-05-00-080-03-02 is suitable for use in potentially explosive atmospheres. Typical applications include refineries, chemical plants, and gas processing facilities.
The housing body consists of glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic with conductive fibers. This material offers excellent chemical resistance and maintains dimensional stability across a wide temperature range. Meanwhile, the sleeve and retaining chain are fabricated from AISI 304 stainless steel, providing good corrosion resistance.
For the outer sleeve and exterior screws, Bently Nevada uses AISI 303 stainless steel. This grade delivers improved machinability and a smooth surface finish. Additionally, the Neoprene O-ring creates a dependable seal against moisture and airborne contaminants. Together, these materials ensure long-term durability in harsh industrial settings.
This housing operates reliably between -51°C and +105°C (-60°F to +221°F). Such thermal capability makes it suitable for both cold climate installations and high-temperature processes. Furthermore, impact strength is another key attribute.
BASEEFA certified this housing to withstand two separate 4 Joule (3.0 ft·lb) impacts at -39°C and at 115°C. Meanwhile, CSA verified that samples withstand a 7 Joule (5.2 ft·lb) impact at ambient room temperature. This ruggedness protects the internal components from accidental blows during operation or maintenance.
The outer sleeve demonstrates substantial load-bearing ability. In standard testing, the sleeve was mounted horizontally on a test stand. The housing attached through an end hole. The assembly then supported 912 N (205 lb) placed approximately 38 mm from the unsupported end. Therefore, this strength ensures the 32000-16-05-00-080-03-02 remains stable under heavy vibration or external forces.
Installing the Bently Nevada 32000-16-05-00-080-03-02 requires proper preparation. First, clean the mounting hole on the machine casing thoroughly. Remove any burrs or sharp edges that might damage the O-ring. Next, apply a suitable thread sealant to the 3/4-14 NPT threads.
Then, thread the housing assembly into the casing opening. Since no standoff adapter is included, the probe tip will be positioned at the standard depth. After that, tighten the retaining nut to the recommended torque of 29.4 N·m (260 in·lb). Avoid over-torquing, which could cause thread damage or O-ring extrusion.
Following this, route the probe cable through the M20 fitting with the cable seal grip. The grommets are specifically designed for armored probe cables. Thus, they provide strain relief and environmental sealing. Finally, connect the cable to the monitoring system and perform a gap adjustment using the external adjustment mechanism. Set the probe to the specified air gap based on the machine's operational requirements.
This housing is ideal for turbines, compressors, pumps, and fans with standard casing thickness. The 80mm penetration depth accommodates most industrial machinery configurations. Moreover, it is well-suited for radial vibration monitoring, thrust position monitoring, and Keyphasor speed measurements.
The M20 fitting with cable seal grip makes this model particularly useful for installations requiring armored probe cables. For example, this is common in offshore platforms, mining operations, and heavy industrial environments. Because of its IP66 and Type 4X ratings, the 32000-16-05-00-080-03-02 performs reliably in outdoor installations exposed to rain, snow, or dust storms.
1 x Bently Nevada 32000-16-05-00-080-03-02 Probe Housing Assembly
1 x 3300 XL 8 mm proximity probe with connector (pre-installed)
1 x 0.5-metre probe cable (pre-attached)
1 x AISI 304 stainless steel retaining sleeve with chain
1 x AISI 303 stainless steel outer sleeve
1 x Neoprene O-ring seal
1 x M20 metric fitting
1 x Cable seal grip with grommets for armored probe cable
2 x M20 plugs
1 x Grounding liner (pre-installed)
1 x Printed installation instruction sheet
All orders are dispatched via FedEx, UPS, or DHL. Tracking numbers are provided within 24 hours of shipment. Express delivery typically takes 3 to 7 business days to major industrial regions worldwide.
1. What probe is included with this housing?
This model includes a Bently Nevada 3300 XL 8 mm probe with a connector. The probe is pre-installed and ready for connection to your monitoring system.
2. What is the cable seal grip for?
The cable seal grip with grommets is designed for armored probe cables. It provides strain relief, prevents cable movement, and maintains the IP66 seal when armored cables are used.
3. Why does this model not include a standoff adapter?
The "00" standoff adapter option indicates none is included. This configuration is suitable for standard casing thicknesses where the probe tip reaches the correct measurement position without an extension.
4. Can I use this housing without the cable seal grip?
The M20 fitting accommodates standard cable entries. However, the cable seal grip is recommended when using armored cables to maintain the IP66 protection rating.
5. How do I adjust the probe gap after installation?
External adjustment is possible using the housing's built-in mechanism. You can adjust the gap without removing the housing or opening the machine casing, which minimizes downtime during maintenance.
