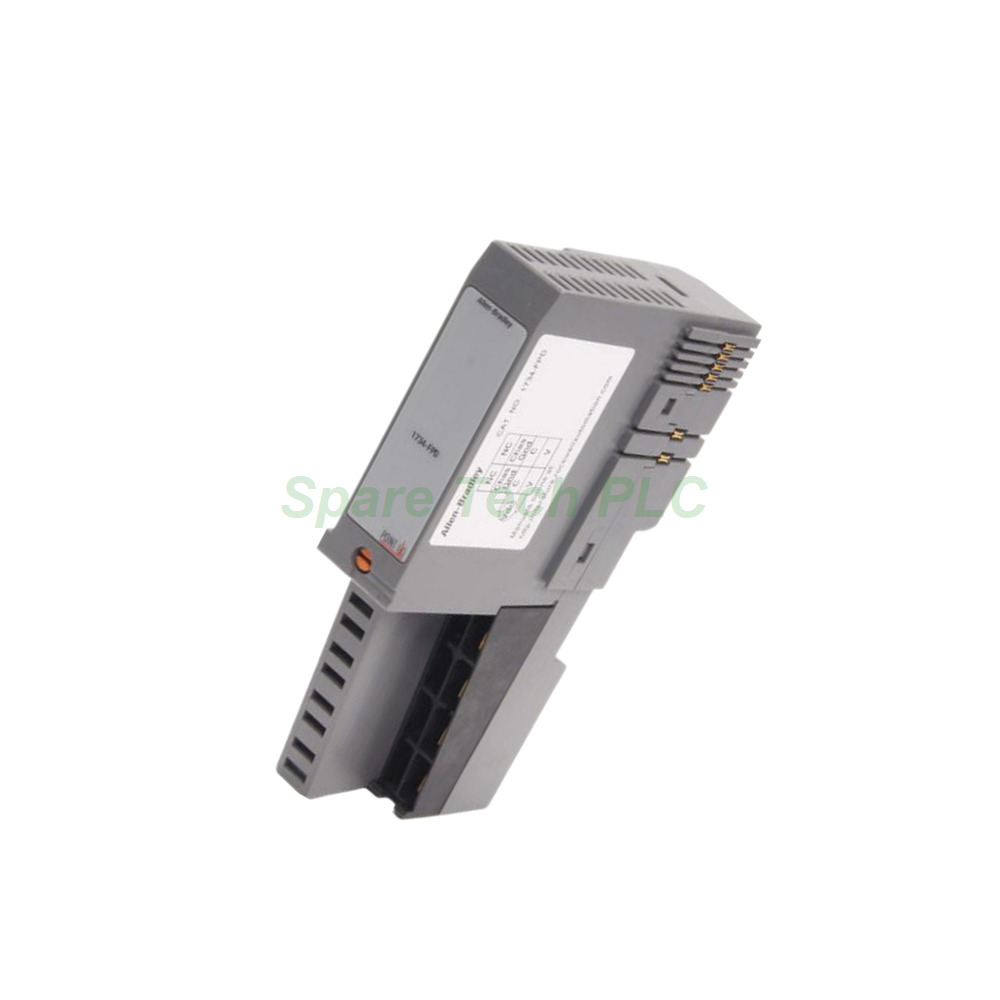

Allen-Bradley 1734-FPD POINT I/O Field Power Distributor

1734-FPD | Allen-Bradley Field Power Distributor 10A

Product Introduction

The Allen-Bradley 1734-FPD is a POINT I/O Field Power Distributor engineered specifically for field-side voltage distribution. This module breaks down field power distribution within your POINT I/O system, providing clean and organized power delivery to connected modules. It operates with either AC or DC voltage, accepting inputs of 12/24 Volts DC or 120/240 Volts AC. Notably, the 1734-FPD has no power consumption, thermal dissipation, or power dissipation, making it an exceptionally efficient component. Its compact design and versatile mounting options make it suitable for various cabinet layouts and industrial applications.

Key Technical Specifications

The 1734-FPD delivers a field power supply current of 10 amps, providing ample power for connected field devices. Its continuous isolation voltage is rated at 250 Volts, with testing performed at 2600 Volts DC for 60 seconds to ensure reliability. The working voltage ranges are 10-28.8V DC or 120-240V AC, offering flexibility for different power sources. Furthermore, the module features a removable terminal block (RTB) and terminal handle, simplifying wiring and maintenance. The terminal base screw torque is specified at 0.6 Nm or 7 lb-in, ensuring secure connections.

Mechanical and Environmental Specifications

This field power distributor measures 76.2 mm x 25.4 mm x 133.4 mm, making it compact and space-efficient. It weighs only 0.12 kg, reducing overall cabinet weight. The 1734-FPD requires a wire size of 0.25-2.5 mm² or 22 AWG to 14 AWG, using stranded or solid copper wire rated at 75°C. It features an open-style enclosure type rating and can be mounted either horizontally or vertically, providing installation flexibility. The operating temperature ranges from -20 to 55°C, accommodating various industrial environments.

Network Connectivity and Compatibility

The 1734-FPD integrates seamlessly with the POINT I/O system architecture. It supports network connectivity through various protocols including ControlNet, DeviceNet, and EtherNet/IP, using 1734-adapters. This compatibility ensures smooth integration with existing automation networks. Additionally, the module works with other open networks, expanding its application possibilities. When combined with other POINT I/O components, the 1734-FPD contributes to a comprehensive and scalable I/O solution for diverse industrial control requirements.

Installation and Wiring Guidelines

Proper installation ensures optimal performance of the 1734-FPD. First, mount the module onto a standard DIN-rail in either horizontal or vertical orientation. Next, connect the field power wires using the removable terminal block, ensuring proper torque of 0.6 Nm. Use appropriate wire sizes between 22 AWG and 14 AWG for reliable connections. Always turn off power before installing or wiring the module. Additionally, verify that the input voltage matches your application requirements before energizing the system. For best results, follow standard wiring practices and maintain proper clearance around the module for ventilation.

Packaging and Shipping Information

Each package contains the Allen-Bradley 1734-FPD Field Power Distributor module. The removable terminal block and terminal handle are included for immediate installation. All orders ship through leading global carriers, including FedEx, UPS, and DHL. This ensures reliable and timely delivery to your facility worldwide. The module is carefully packaged to prevent damage during transit.

Frequently Asked Questions (FAQ)

1. What power input options does the 1734-FPD support?
The 1734-FPD accepts either 12/24 Volts DC or 120/240 Volts AC input. This flexibility allows it to work with various power sources commonly found in industrial environments.

2. What is the field power supply current rating of this module?
This field power distributor delivers 10 amps of field power supply current. This rating ensures adequate power for multiple connected field devices.

3. Does the 1734-FPD consume any power itself?
No, it does not. The 1734-FPD has zero power consumption and no thermal or power dissipation. This makes it highly efficient for power distribution applications.

4. What mounting options are available for this module?
The 1734-FPD can be mounted either horizontally or vertically on a standard DIN-rail. This flexibility accommodates various cabinet layouts and space constraints.

5. What network protocols are compatible with this module?
The 1734-FPD supports various network protocols including ControlNet, DeviceNet, and EtherNet/IP. It works with 1734-adapters for seamless system integration.
