Allen-Bradley 1794-ACN15 Flex I/O ControlNet Adapter

1794-ACN15 | Allen-Bradley ControlNet Adapter Module 5Mbps

Product Introduction

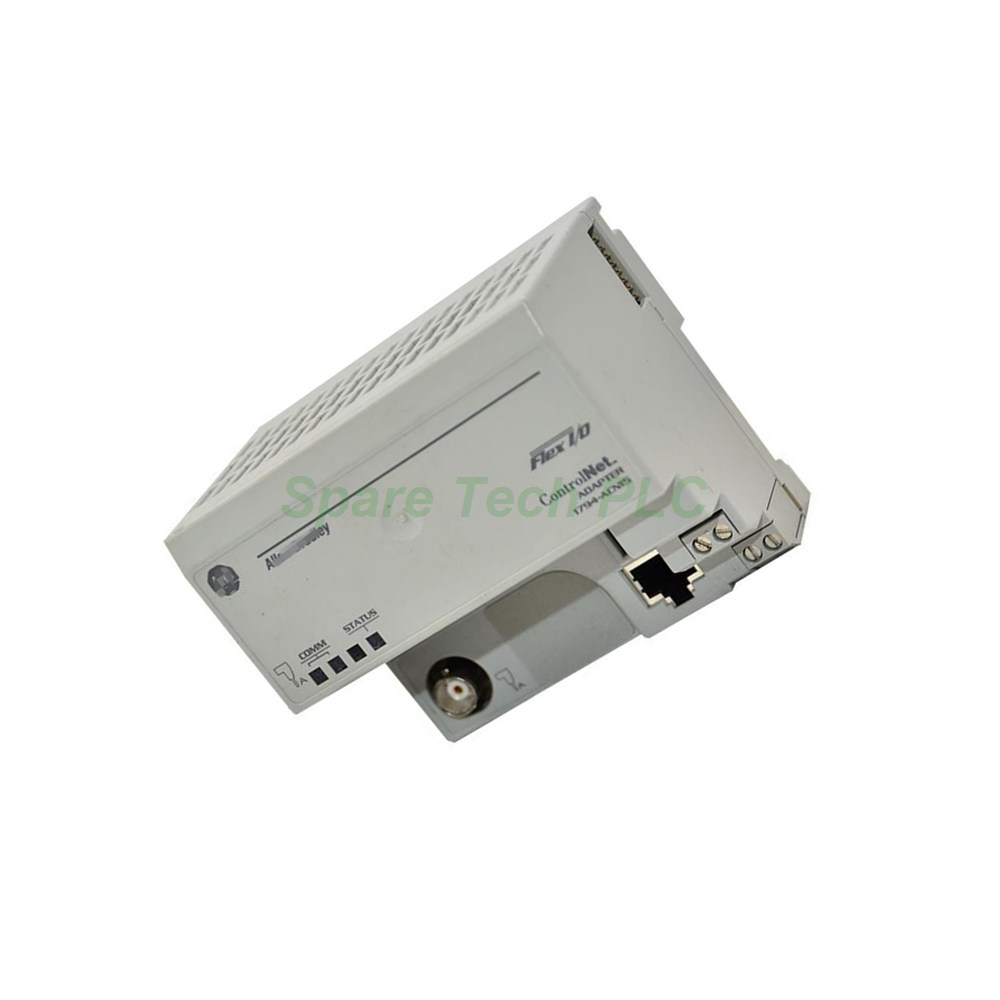

The Allen-Bradley 1794-ACN15 is a Flex I/O communication adapter module designed to enable ControlNet network connectivity. This module serves as the gateway between your ControlNet network and the Flex I/O system, allowing I/O modules to transfer and receive data seamlessly. The 1794-ACN15 supports communication rates of up to 5 Mbps, ensuring fast and reliable data exchange. Furthermore, it converts incoming power from the Flex I/O power supply to backplane power, which adjacent I/O modules consume to perform their designed functions. One adapter can support up to 8 Flex I/O modules, making it suitable for medium-scale automation applications.

Key Technical Specifications

This communication adapter features one ControlNet port that uses Belden RG-6/U or equivalent cable. Its communication rate is 5 Mbps, providing efficient data transfer across the network. The 1794-ACN15 operates on a supply voltage of 24 Volts DC with an input voltage range of 19.2 to 31.2 Volts DC. The Flexbus output current reaches 640 mA maximum, while the current draw is 450 mA maximum. Inrush current is rated at 23A for 2 milliseconds, protecting the module during startup. Its isolation voltage is 850 Volts DC, ensuring robust electrical separation between circuits. Power dissipation is 4.6 W maximum at 19.2 Volts DC.

Status Indicators and Diagnostics

The 1794-ACN15 comes equipped with three built-in status indicators for effective diagnostics. The I/O Status LED shows red or green, indicating the operational state of connected modules. Additionally, two communication indicators, Comm A and Comm B, each display red or green to show network activity and status. These LEDs provide immediate visual feedback during troubleshooting and system startup. For instance, a solid green indicator typically signals normal operation, while a red indicator may alert you to potential issues requiring attention.

Environmental and Mechanical Specifications

This module operates reliably across a temperature range of 0 to 55°C (32 to 131°F). Its storage temperature extends from -40 to 85°C (-40 to 185°F), accommodating various shipping and storage conditions. The 1794-ACN15 has been tested for vibration at 5 g @ 10-500Hz per IEC 68-2-6, ensuring durability in industrial environments. It also withstands operating shock of 30 g peak acceleration with an 11(+1)ms pulse width. The module measures 87 x 94 x 69 millimeters and weighs approximately 0.136 kilograms. Its IP20 protection rating prevents injuries and damage from incidental contact.

Installation and Wiring Guidelines

Proper installation ensures reliable operation of the 1794-ACN15. Mount the module on a DIN rail or use panel mounting for secure attachment. For grounding, mount it on a zinc-plated yellow-chromate steel DIN rail with an open-type design. The recommended wire sizes are 0.33 to 2.5 mm² (22 to 12 AWG) for single wire connections, and 0.33 to 1.3 mm² (22 to 16 AWG) for double wire connections. Use stranded or solid copper wire rated at 75°C or greater. The power wiring must not exceed 10 meters (32.8 feet) in length. Additionally, always turn off power before installation to prevent electrical hazards.

Network Connectivity and System Integration

The 1794-ACN15 integrates seamlessly into ControlNet networks, supporting a communication rate of 5 Mbps. It works with up to 8 Flex I/O modules, providing a compact and scalable I/O solution. The module is approved for European Zone 2 and North American Hazardous Locations, expanding its application possibilities. It features Basic Insulation Type with isolation tested at 860V AC for 60 seconds, although there is no isolation between ControlNet channels. For optimal performance, install the module in an enclosure suitable for your specific environment.

Packaging and Shipping Information

Each package contains the Allen-Bradley 1794-ACN15 ControlNet Adapter Module. All orders ship through leading global carriers, including FedEx, UPS, and DHL. This ensures reliable and timely delivery to your facility worldwide. The module is carefully packaged to prevent damage during transit.

Frequently Asked Questions (FAQ)

1. What communication protocol does the 1794-ACN15 support?
The 1794-ACN15 supports the ControlNet communication protocol. It enables Flex I/O modules to transfer I/O data over ControlNet networks at speeds up to 5 Mbps.

2. How many I/O modules can one adapter support?
This adapter can support up to 8 Flex I/O modules. This capacity makes it suitable for medium-scale automation applications requiring multiple I/O points.

3. What is the input voltage range for this module?
The 1794-ACN15 operates on a nominal voltage of 24 Volts DC with an input voltage range of 19.2 to 31.2 Volts DC, accommodating typical industrial power variations.

4. What status indicators are available on this module?
This module features three status indicators: I/O Status (red/green), Comm A (red/green), and Comm B (red/green). These LEDs provide clear diagnostic information for troubleshooting.

5. What are the mounting options for the 1794-ACN15?
The 1794-ACN15 supports both DIN rail and panel mounting. For proper grounding, mount it on a zinc-plated yellow-chromate steel DIN rail with an open-type design.
