Allen-Bradley 1734-EXT1 POINT I/O Extension Cable 1M

1734-EXT1 | Allen-Bradley 1-Meter I/O Bus Cable

Product Introduction

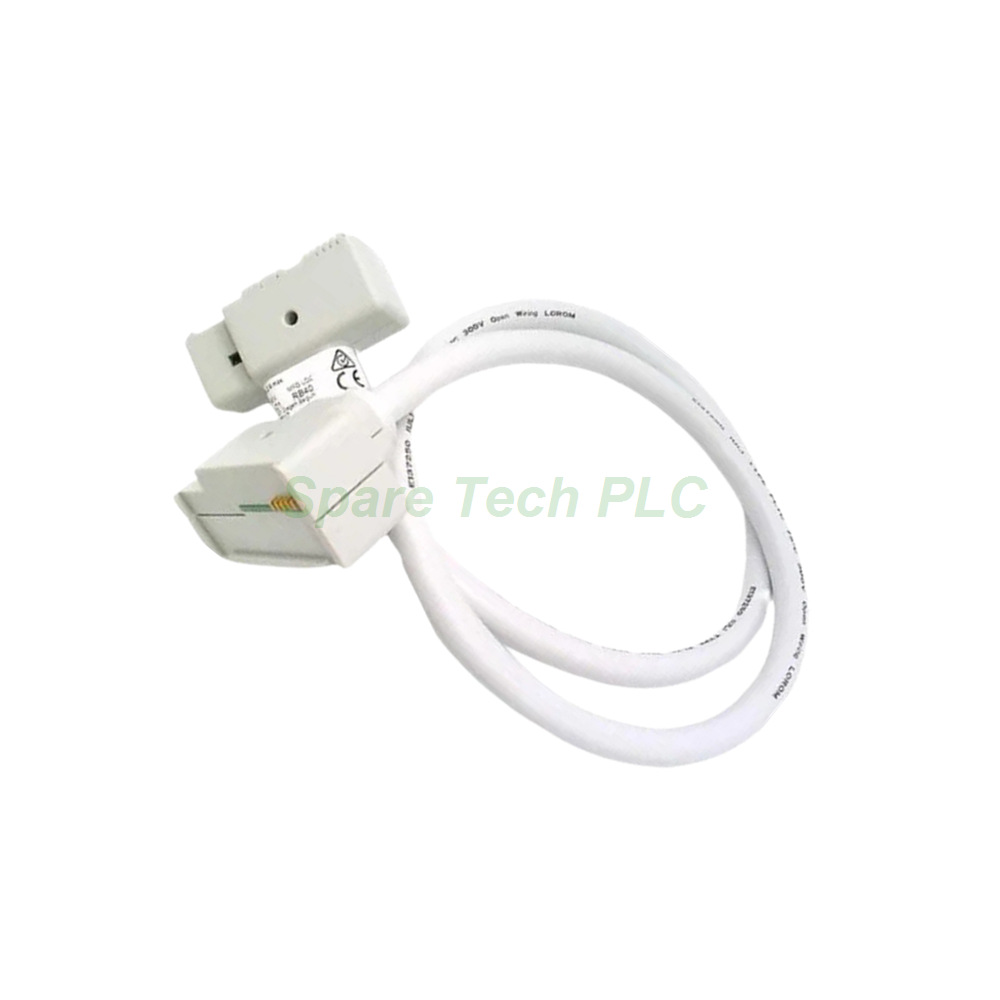

The Allen-Bradley 1734-EXT1 is a POINT I/O Extension Cable designed specifically for the 1734 modular I/O platform. This 1-meter cable serves as a critical link between terminal bases and other system accessories. It transports digital signals and data at high speeds from sensors and encoders to the main POINT I/O System. Standard cables often cannot handle the demanding data flow required in modern automation. Therefore, the 1734-EXT1 steps in to deliver the necessary performance. It supports various industrial processes, including plant management, data collection, configuration, and time-critical control applications.

Technical Specifications

The 1734-EXT1 features a standard length of 1 meter, providing ample reach for connecting components within your control cabinet. It belongs to the POINT I/O series and functions specifically as an I/O point-bus extension cable. This accessory enables high-speed data and signal transmission between field devices and the central I/O system. Furthermore, the cable facilitates proper wiring between the in-cabinet modular I/O Platform and other fundamental parts of your process. It allows multiple types of connections simultaneously, thereby enhancing system integration. This cable is essential for applications demanding flexibility and low ownership cost, as it simplifies system expansion and reconfiguration.

Key Features and Benefits

The 1734-EXT1 ensures robust and reliable communication within your automation network. Its design focuses on maintaining signal integrity over its 1-meter length. For instance, it effectively handles the transmission of digital signals from sensors to their corresponding display units. Additionally, this extension cable is vital for maintaining high transmission and data flow rates. It supports seamless integration with adapters and encoders, ensuring accurate data reaches the controller without delays. Meanwhile, its construction meets the rigorous quality standards associated with the Allen‑Bradley brand, guaranteeing durability in industrial environments.

Application Scenarios

This extension cable is indispensable in numerous industrial settings. It is commonly used in manufacturing integration projects where distributed I/O points are necessary. The 1734-EXT1 also excels in time-critical applications with no fixed schedule, where reliable data transmission is paramount. Moreover, it supports regular sending of data for monitoring and control purposes. It simplifies the wiring of complex systems, grouping modules and accessories according to functional zones. Consequently, maintenance and troubleshooting become more straightforward, reducing downtime and improving overall operational efficiency.

Installation and Usage Guidelines

Installing the 1734-EXT1 is straightforward and user-friendly. Simply connect it between the designated terminal bases of your POINT I/O system. Ensure the cable is routed properly to avoid stress or damage. Proper installation guarantees optimal signal quality and prevents data loss. Although installation is simple, always verify that the system is powered off before connecting or disconnecting this cable. This practice ensures safety and protects both the cable and connected devices. For best results, keep the cable away from high-voltage wires to minimize electromagnetic interference.

Packaging and Shipping Information

Your package includes the Allen‑Bradley 1734-EXT1 POINT I/O Extension Cable, measuring 1 meter in length. The cable is carefully coiled and packaged to prevent damage during transit. All orders ship via leading global carriers, including FedEx, UPS, and DHL. This ensures timely and secure delivery to your facility, regardless of your location.

Frequently Asked Questions (FAQ)

1. What is the primary purpose of the 1734-EXT1 cable?
The 1734-EXT1 connects terminal bases and accessories within the POINT I/O system. It transmits high-speed digital signals and data between sensors, adapters, and the main controller, facilitating efficient automation processes.

2. How long is this Allen-Bradley extension cable?
This cable has a fixed length of 1 meter. This length is sufficient for most in-cabinet connections between POINT I/O components and provides flexibility for system layout designs.

3. Can I use this cable with other I/O platforms?
This cable is specifically designed for the Allen‑Bradley POINT I/O platform. While it may physically fit other connectors, using it with other systems is not recommended as it might compromise performance and signal integrity.

4. Why is a dedicated bus cable necessary for my system?
Standard cables cannot handle the high-speed data flow required by modern I/O systems. The 1734-EXT1 is engineered for this specific purpose, ensuring reliable, high-speed transmission without data loss or interference.

5. Is the 1734-EXT1 suitable for time-critical applications?
Yes, it is. The 1734-EXT1 supports time-critical applications and tasks with no fixed schedule. Its reliable data transmission capability ensures stable performance even in demanding real-time control environments.
