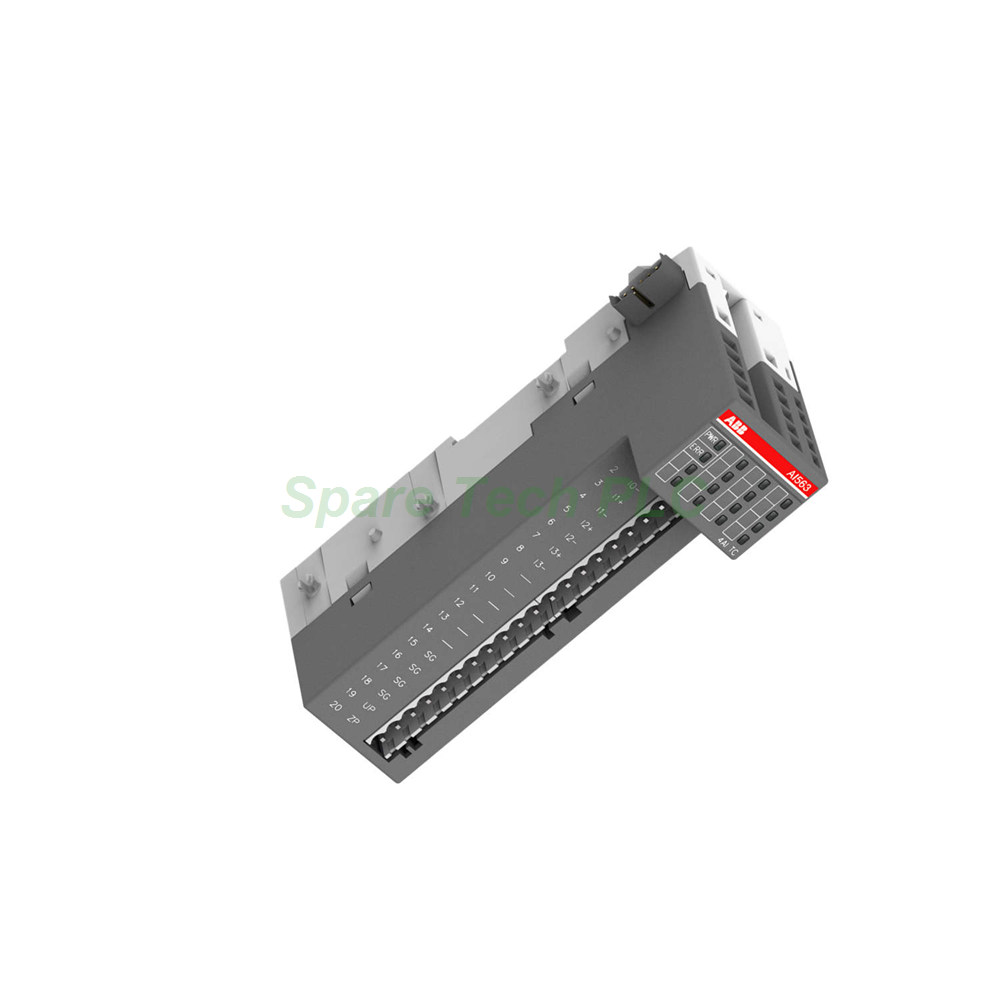

The ABB AI563 analog input module supports up to four configurable thermocouple inputs. You can connect floating thermocouples directly to terminals 1 through 8. This device operates with a rated supply voltage of 24V DC on terminals 19 (UP) and 20 (ZP).
Additionally, the module includes built-in protection against reversed voltage. Its current consumption is only 0.10 A, while the CPU interface draws about 5 mA. For safe startup, the inrush current is rated at 0.07 A²s.
The ABB AI563 provides four channels grouped into one isolated group. Each channel delivers a temperature resolution of 0.1°C and a voltage resolution of 16 bits including sign. The analog-to-digital conversion takes 400 ms per channel, and the total module update time stays below 1.6 seconds for all channels.
Galvanic isolation exists between the channels and the rest of the module. This unit can withstand a surge voltage of 35V DC for 0.5 seconds. Overvoltage protection is available up to 30V DC. Furthermore, the common mode rejection exceeds 120 dB at 120V AC, which reduces noise effectively.
The maximum power dissipation inside the ABB AI563 is 2.6 W. A rated protection fuse for UP is not necessary. The allowed ripple on the supply is maximum 5%. For cooling, natural convection must not be blocked by cable ducts or other parts inside the cabinet.
You can mount this module horizontally or vertically on a top hat rail according to IEC 60715 (35 mm width, 7.5 mm or 15 mm depth). Alternatively, use M4 screws with a fastening torque of 1.2 Nm. The AI563 weighs approximately 120 g.
Connect signals I0+ to I3+ on terminals 1, 3, 5, and 7. Then connect I0- to I3- on terminals 2, 4, 6, and 8. If you leave any input unused, you must configure it as "unused" in the software. The wire loop resistance should stay below 100 Ω.
First, ensure the 24V DC supply is stable and within the allowed ripple range. Next, attach the module to the DIN rail or use M4 screws for panel mounting. After that, wire the thermocouple signals to the correct terminals.
For the best performance, keep the control cabinet well-ventilated. Do not block airflow around the module. Finally, configure the unused channels in your PLC software to avoid false readings.
ABB AI563 analog input module – 1 unit
Terminal number labels – 1 set
Quick installation guide – 1 copy
Note: Cables, certificates, and warranty documents are not included in the package.
We ship worldwide via Fedex, UPS, or DHL.
1. Can I leave unused inputs on the ABB AI563 disconnected?
Yes, you can leave them open. However, you must configure those channels as "unused" in your control software to prevent errors.
2. What happens if I reverse the 24V DC supply polarity?
The module includes protection against reversed voltage. Therefore, no damage will occur when you reverse the UP and ZP connections.
3. How long does the module take to update all four channels?
The total update time for all channels is less than 1.6 seconds. Each channel requires 400 ms for analog-to-digital conversion.
4. Do I need an external fuse for the UP supply terminal?
No, a rated protection fuse for UP is not necessary. The module does not require an additional external fuse.
5. Can I use this module in a vertical mounting position?
Yes, the ABB AI563 supports both horizontal and vertical mounting. Just make sure natural convection cooling is not obstructed.
