ABB AI523 Analog Input Module 16 Channels

ABB AI523 Analog Input Module 16 Channels

Product Introduction

The 1SAP250300R0001 also known as ABB AI523 offers sixteen configurable analog inputs. You can use it for voltage, current, RTD, or even digital input signals. This module operates with a 1-wire connection, which simplifies wiring significantly.

Furthermore, the device belongs to the ABB AC500 PLC family. Its compact dimensions of 76 mm height and 67.5 mm width save valuable cabinet space. The product net weight is only 0.125 kg, making it very lightweight.

Technical Specifications

Input Channels and Configuration

The ABB AI523 provides sixteen analog channels in total. Each channel supports multiple signal types including voltage (U), current (I), RTD temperature sensors, and digital inputs (DI). You can configure each channel independently based on your application needs.

The module uses a 1-wire connection technology. This feature reduces the number of wires required for field devices. Consequently, installation becomes faster and less error-prone.

Power and Protection

This analog input module carries an IP20 degree of protection. Therefore, it is suitable for installation inside control cabinets. The 1SAP250300R0001 is not within the WEEE scope, which simplifies disposal procedures at end of life.

Environmental and Standards Compliance

The UNSPSC code for this product is 32151700. This classification helps with procurement and inventory management. Additionally, the module meets standard industrial environmental requirements for temperature and humidity.

Mechanical Dimensions

The ABB AI523 has a product net depth of 62 mm. Its net height measures 76 mm, and the net width is 67.5 mm. For shipping, the package level 1 dimensions are 84 mm in depth, 72 mm in height, and 71 mm in width. The total gross weight including packaging is 0.149 kg.

Installation Guidelines

First, mount the 1SAP250300R0001 inside an IP20 rated control cabinet. Next, connect the field wiring to the appropriate terminals according to your signal type. Then configure each channel in the AC500 PLC software as voltage, current, RTD, or digital input.

For unused channels, you can leave them disconnected. However, you should disable them in the software to avoid unexpected readings. The minimum order quantity is one piece, and you can order multiples of one piece.

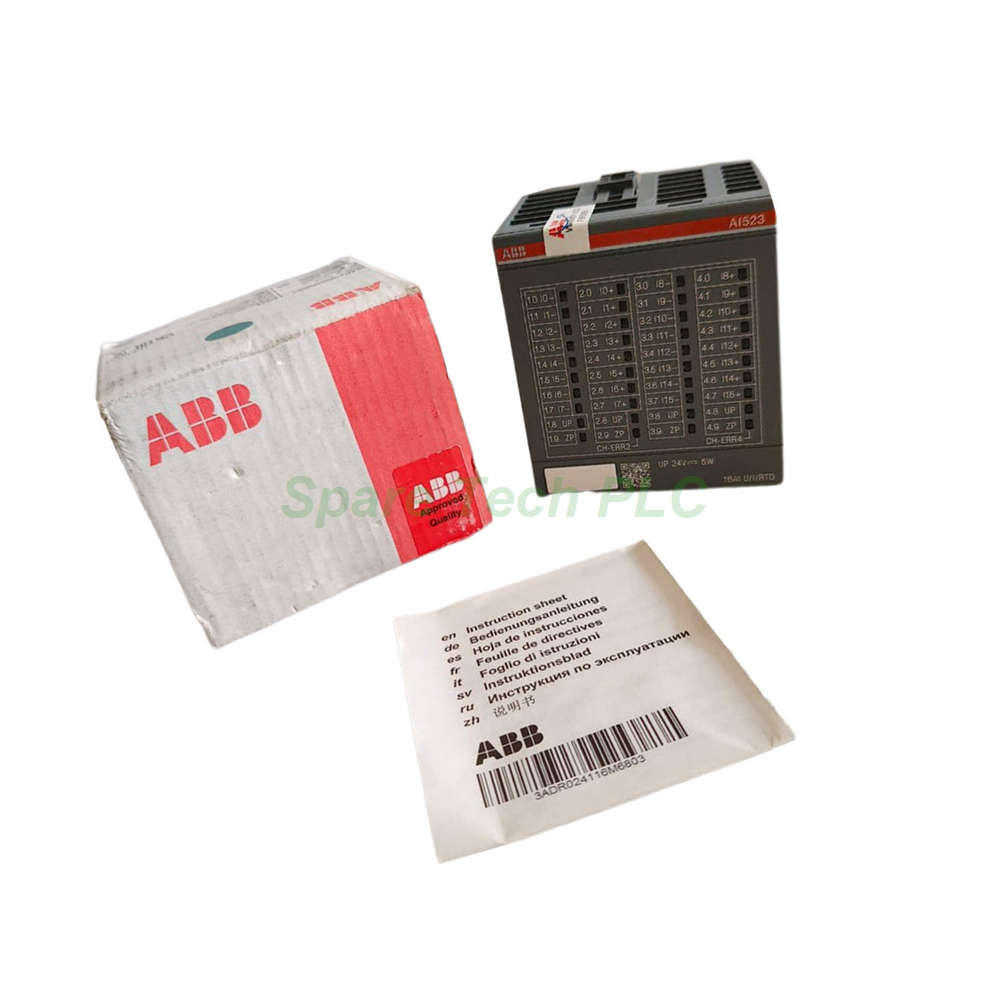

Packaging List

• ABB AI523 analog input module (1SAP250300R0001) – 1 unit

• Product label – 1 piece

• Quick reference card – 1 copy

Note: Cables, mounting hardware, certificates, and warranty documents are not included.

Shipping Methods

We ship worldwide using Fedex, UPS, or DHL.

Frequently Asked Questions (FAQ)

1. What signal types does the ABB AI523 support?
It supports voltage (U), current (I), RTD temperature sensors, and digital input (DI). All sixteen channels are configurable.

2. Is this module a standard stock item?
Yes, it is not made to order. The 1SAP250300R0001 is a standard product with a minimum order quantity of one piece.

3. What is the 1-wire feature used for?
The 1-wire technology simplifies field wiring. It reduces the number of connections needed for each sensor or transmitter.

4. Can I mount this module outdoors?
No, the IP20 protection rating means it must be installed inside a control cabinet. Outdoor use requires an additional enclosure.

5. Does this module require special disposal handling?
No, the ABB AI523 is not within the WEEE scope. You can dispose of it following standard industrial electronic waste rules.
