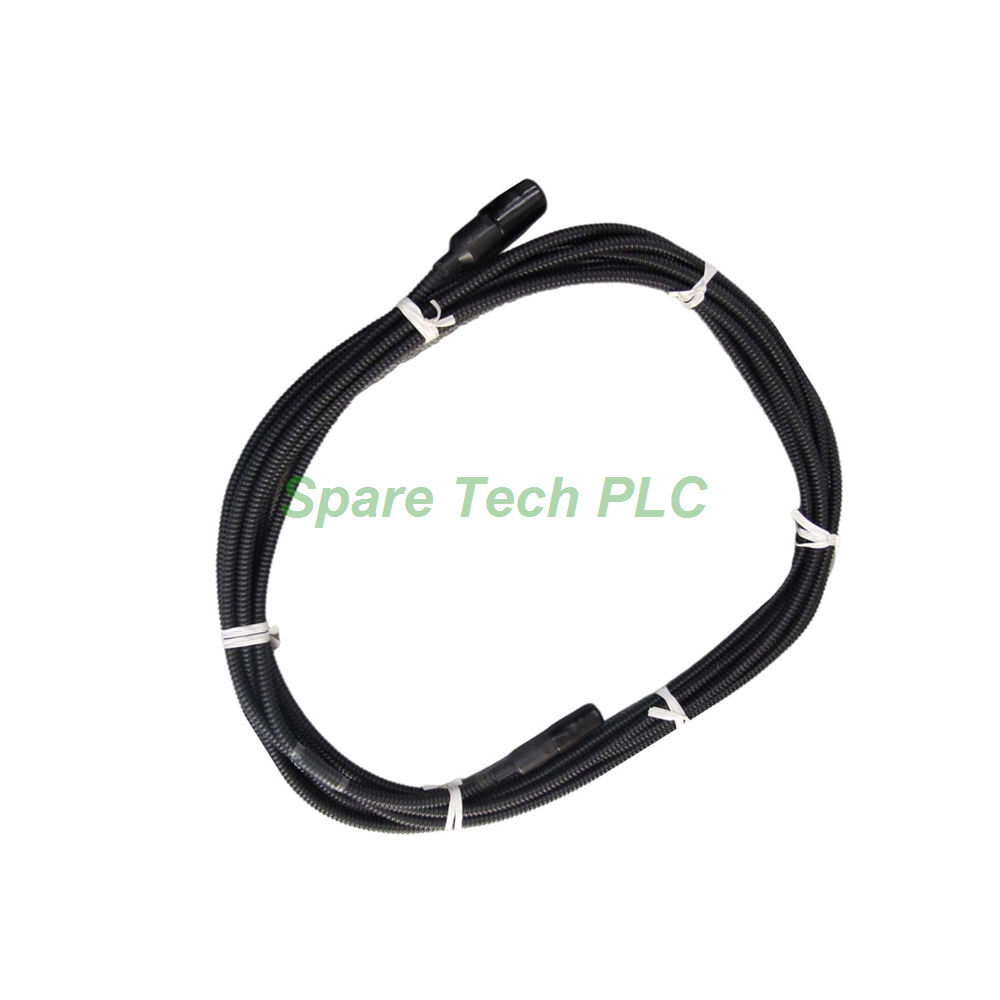

The Bently Nevada 45358-07 Softline Extension Cable offers a flexible and dependable interconnection solution for accelerometer monitoring systems. This 7-meter cable employs a twisted shielded pair configuration with low-noise construction, ensuring clean signal transmission for accurate vibration measurements. The entire assembly utilizes convoluted Teflon tubing for protection, which provides excellent chemical resistance and mechanical safeguarding while maintaining flexibility. Unlike hardline cables designed for extreme heat, this softline variant suits standard industrial environments where temperatures do not exceed +204°C. This product is brand new and arrives in its original factory-sealed packaging.
The 45358-07 cable delivers reliable performance in typical industrial settings. Its detailed specifications are outlined below.
Length: 7.0 meters (23.0 feet).
Cable Type: Softline, twisted shielded pair with low-noise construction.
Outer Protection: Convoluted Teflon tubing for chemical resistance and mechanical protection.
Connector Potting: The rear of both connectors features potting to provide strain relief and environmental sealing.
Accelerometer Mating Connector: Mates to an MS 3100R-10SL-4P receptacle and includes a Viton insert for high-temperature sealing.
Interface Module Mating Connector: Mates to an MS 3112-8-3P connector.
Furthermore, the twisted shielded pair design effectively minimizes electromagnetic interference, preserving signal integrity in electrically noisy environments. It is worth noting that the 45358-07 uses a different interface connector than hardline cables, which employ an MS 3106-10SL-4S connector. Therefore, always verify that your interface module accepts an MS 3112-8-3P connector before purchasing.
The 45358-07 specifically suits moderate temperature applications where hardline cables are unnecessary. Its thermal limits are clearly defined.
Cable Body: -65°F to +400°F (-54°C to +204°C).
Accelerometer Connector (MS 3100R-10SL-4P): -65°F to +392°F (-54°C to +200°C).
Interface Module Connector (MS 3112-8-3P): -50°F to +200°F (-45°C to +93°C).
The interface module connector limits the system's overall temperature capability to +93°C. This makes the 45358-07 ideal for use in areas such as motor rooms, pump houses, and general process areas where temperatures remain moderate. The convoluted Teflon tubing offers excellent protection against oils, solvents, and other industrial chemicals commonly encountered in these environments.
Proper installation ensures optimal performance and longevity of the Bently Nevada 45358-07. Following these recommendations will help you achieve reliable operation.
Cable Routing: Plan the cable path to avoid sharp edges, hot surfaces, and moving machinery parts. The Teflon tubing provides good abrasion resistance, but physical damage should still be prevented.
Connector Mating: Hand-tighten the connectors firmly. Do not use tools to over-tighten, as this can damage the pins or the Viton insert.
Bend Radius: Maintain a minimum bend radius of approximately 75mm (3 inches) to prevent kinking and internal conductor damage.
Cable Support: Secure the cable using appropriate cable ties or clamps at regular intervals, typically every 12 to 18 inches. This prevents strain on the connectors and reduces the risk of accidental disconnection.
Strain Relief: Ensure that both connectors receive proper support and that the cable does not experience tension. The potted rear connectors provide some strain relief, but external support is still recommended.
Every Bently Nevada 45358-07 Softline Extension Cable arrives ready for immediate use.
Package Contents: The cable assembly includes both required connectors, protective caps, and a sealed plastic bag for packaging.
Documentation: A product data sheet and installation instructions accompany the cable in the shipping box.
Shipping: We ship all orders using FedEx, UPS, or DHL for fast, reliable, and trackable delivery worldwide.
Q: What is the length of the 45358-07 cable?
A: The 45358-07 measures exactly 7.0 meters long, which equals 23.0 feet. The model number suffix "-07" indicates the length in meters.
Q: Can I use the 45358-07 Softline Cable in high-temperature areas above +204°C?
A: No, this cable is not suitable for extreme heat. For temperatures above +204°C, you should consider a hardline cable such as the 83387-100 or 83387-132, which feature mineral insulation and stainless steel overbraid for operation up to +649°C.
Q: Does the 45358-07 work with hardline interface modules?
A: No, it does not. The 45358-07 uses an MS 3112-8-3P connector for the interface module, while hardline cables use an MS 3106-10SL-4S connector. Check your module's connector type before ordering.
Q: What purpose does the convoluted Teflon tubing serve?
A: The Teflon tubing provides excellent chemical resistance against oils, solvents, and other industrial fluids. It also offers mechanical protection and maintains flexibility across the cable's operating temperature range.
Q: Which shipping carriers do you use for this cable?
A: We ship the 45358-07 via FedEx, UPS, or DHL. All shipments include full tracking information, allowing you to monitor your delivery from dispatch to arrival.
| Brand Name | |
| Model No. | 45358-07 |
| Product Type | Extension Cable |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
