140DAI74000 Modicon Quantum AC Input Module Schneider

140DAI74000 Modicon Quantum AC Input Module

Product Introduction

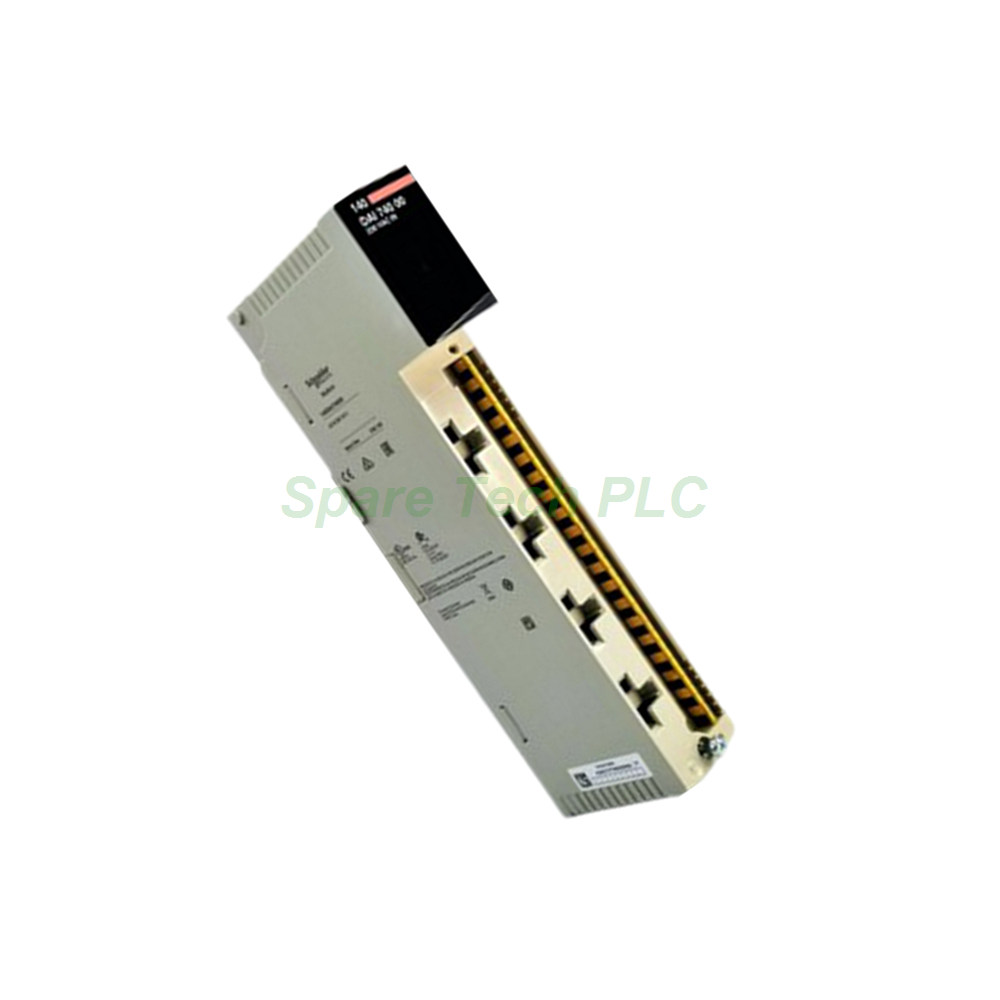

The Schneider Electric 140DAI74000 is a dedicated AC discrete input module designed for the Modicon Quantum automation platform. It provides 16 input channels for monitoring AC-powered field devices such as limit switches, pushbuttons, and proximity sensors in industrial environments. This module operates at a nominal voltage of 230V AC and supports a wide frequency range from 47 to 63Hz. Additionally, its robust isolation and surge protection ensure reliable signal acquisition even in electrically noisy settings. Therefore, the 140DAI74000 is an ideal solution for applications that require direct AC input monitoring without external interfacing.

Input Specifications and Electrical Characteristics

First, let us examine the core input parameters. The 140DAI74000 offers 16 discrete input channels arranged in a single group of 16, simplifying wiring organization. Each input accepts a nominal voltage of 230V AC with a frequency range of 47 to 63Hz. For guaranteed ON-state detection, the module requires a voltage between 165-264V AC at 57-63Hz or 175-264V AC at 47-53Hz. Conversely, the OFF-state is guaranteed at 0-40V AC across the entire frequency range. The input current is 11.5 mA at 57-63Hz and 9.7 mA at 47-53Hz, while input impedance is capacitive at 26,500 Ohms (57-63Hz) and 31,800 Ohms (47-53Hz).

Response Time and Performance

Understanding response time is crucial for time-sensitive applications. The 140DAI74000 exhibits a variable response time depending on the line cycle. For OFF-to-ON transitions, the response ranges from 4.9 ms to 0.75 ms times the line cycle; for ON-to-OFF, it ranges from 7.3 ms to 12.3 ms. This means at 50Hz, the response is approximately one line cycle, providing reliable detection of AC signals. Moreover, the module supports absolute maximum inputs of 264V continuous, 300V for 10 seconds, and 400V for 1 cycle, offering robust protection against voltage transients and surges common in industrial power systems.

Protection and Diagnostic Features

Reliability is enhanced through comprehensive protection and diagnostics. The Schneider 140DAI74000 features high isolation of 1780V RMS between channels and between channels and the bus, protecting the PLC backplane from voltage spikes. For diagnostics, the module includes a clear LED array: an Active LED (green) indicates bus communication is present, a red F LED lights up when an external fault is detected, and 16 green LEDs provide individual visual status for each input channel. This diagnostic capability significantly reduces troubleshooting time during system maintenance and commissioning.

Power and Environmental Specifications

The 140DAI74000 draws 180 mA from the Quantum rack's backplane and dissipates a maximum of 5.5W of power. This low power consumption minimizes heat generation within the control cabinet. For environmental resilience, the module operates in temperatures from 32 to 140 °F (0 to 60 °C) and can be stored between -40 and 185 °F (-40 to 85 °C). It tolerates 95% relative humidity without condensation and operates at altitudes up to 5000 meters (16,404 feet). These specifications make it suitable for factories worldwide, from humid coastal environments to high-altitude facilities.

Software Compatibility and Programming

The 140DAI74000 is fully compatible with leading Schneider Electric programming software. Specifically, it works with Concept, ProWORX 32, and Unity Pro, providing flexibility for system integrators using different development environments. The module requires 1 input word for addressing, simplifying configuration within the Quantum rack. This broad software compatibility ensures seamless integration into new or existing Modicon Quantum systems.

Compliance and Certifications

The Schneider 140DAI74000 holds several key certifications, including FM Class 1 Division 2, cUL, UL 508, and CSA C22.2 No 142. These certifications ensure safe use in hazardous locations and compliance with North American electrical standards. Additionally, it meets electromagnetic compatibility standards, including IEC 801-2 for electrostatic discharge (4 kV contact, 8 kV air) and IEC 801-3 for radiated immunity (10 V/m at 80-2000 MHz). Therefore, you can deploy this module with confidence in electrically noisy industrial settings worldwide.

Installation and Mounting

The 140DAI74000 uses the standard Quantum module format and installs directly into a Quantum rack. It draws its internal power from the rack's backplane, requiring no external power supply. Simply insert the module into any available slot in the chassis. For field wiring, the module connects via a removable terminal block (sold separately) that accommodates up to 16 AC input signals plus commons. Always ensure the rack is powered off before inserting or removing the module to prevent damage. Additionally, route input wiring away from high-power AC lines to minimize noise pickup.

Packaging List

• 1 x 140DAI74000 Modicon Quantum AC discrete input module

• 1 x Product documentation leaflet

Note: Terminal blocks, cables, and programming software are not included in the package.

Frequently Asked Questions (FAQ)

1. What is the nominal input voltage for the 140DAI74000?
The 140DAI74000 operates at 230V AC with a frequency range of 47 to 63Hz.

2. How fast does the 140DAI74000 respond to input changes?
Response time varies with line cycle: OFF-to-ON takes 4.9 ms to 0.75 ms times the line cycle, while ON-to-OFF takes 7.3 ms to 12.3 ms.

3. Does the 140DAI74000 provide individual channel status indication?
Yes, it features 16 green LEDs that display the live status of each input channel.

4. What software is compatible with the 140DAI74000?
This module supports Concept, ProWORX 32, and Unity Pro programming software.

5. Does this module offer isolation between channels?
Yes, the 140DAI74000 provides 1780V RMS isolation between channels and between channels and the bus.
