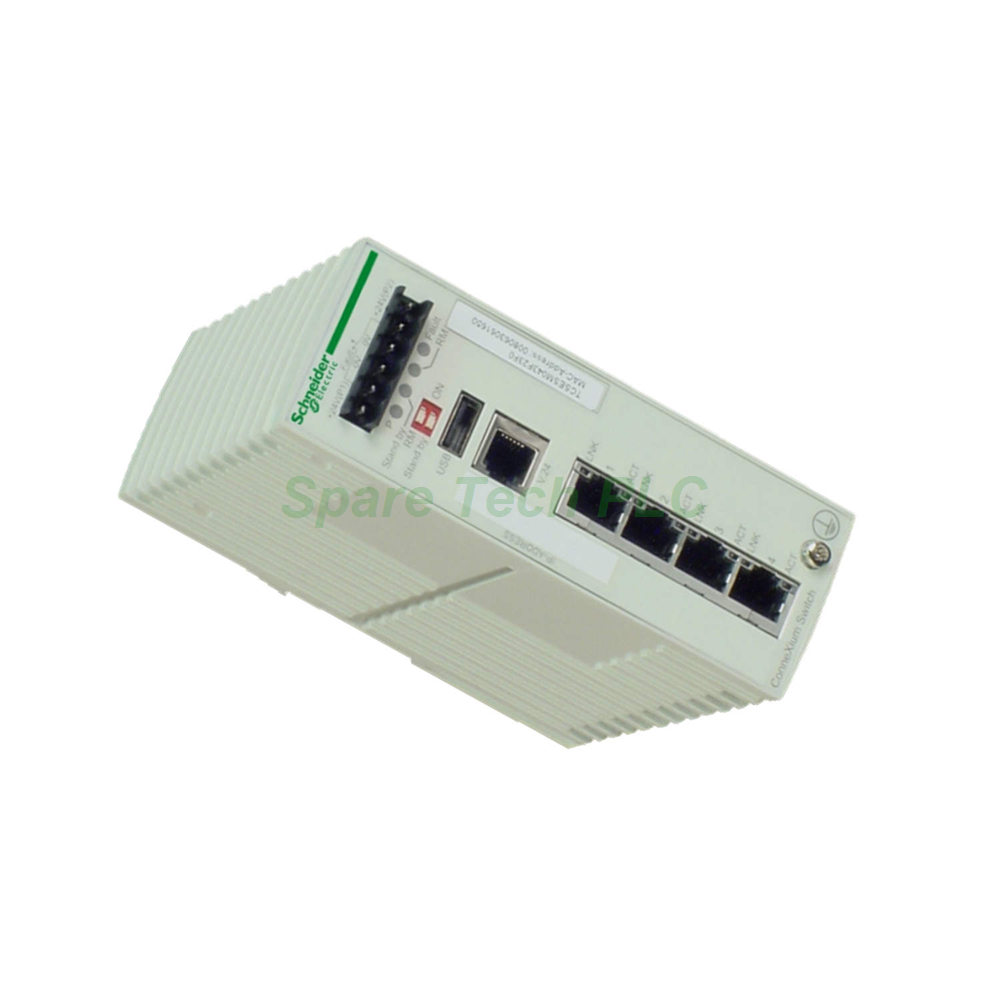

The Schneider Electric TCSESM043F23F0 is a reliable managed switch from the ConneXium product range. This device offers four 10/100BASE-TX copper ports in a compact form factor, making it perfect for space-constrained control cabinets. It provides advanced features including Rapid Spanning Tree Protocol (RSTP), VLAN support, and IGMP Snooping to ensure efficient and secure network communication. Therefore, the TCSESM043F23F0 delivers robust network performance for demanding automation applications.
This section details the core technical attributes of the TCSESM043F23F0 managed switch.
Port Configuration: The switch features 4 copper ports (10BASE-T/100BASE-TX) with shielded RJ45 connectors. This configuration provides flexible connectivity for local devices in industrial networks.
Transmission Medium: For copper connections, use CAT 5E shielded twisted pair cables to ensure reliable data transmission and noise immunity.
Network Management: The TCSESM043F23F0 includes comprehensive Ethernet services: configuration via web server, data stream control, FDR (Fast Device Replacement), IGMP Snooping, multicast filtering, priority port, RSTP, secure port, SMTP V3, SNTP client, and VLAN support.
Redundancy: It supports redundant power supplies and redundant single ring topologies. Furthermore, up to 50 switches can be connected in a single ring, providing robust network resilience.
The Schneider Electric TCSESM043F23F0 is equipped with features that enhance network performance and security.
VLAN Support: Virtual LANs allow network segmentation, improving security and reducing broadcast traffic for better overall performance.
Rapid Spanning Tree Protocol (RSTP): This protocol prevents network loops and ensures rapid recovery from link failures, minimizing downtime in critical applications.
IGMP Snooping: This feature optimizes multicast traffic by forwarding it only to ports that have requested it, reducing unnecessary network congestion.
Priority Port and Multicast Filtering: These functions allow for traffic prioritization, ensuring that critical control data is transmitted with minimal latency.
Redundant Ring Support: The ability to form a ring topology with up to 50 switches provides a self-healing network that maintains connectivity even if a single link fails.
Understanding the physical and environmental limits of the TCSESM043F23F0 is crucial for proper deployment.
Power Supply: The switch operates on a flexible supply voltage range: 18 to 30 V AC SELV or 9.6 to 60 V DC SELV. It consumes approximately 5.3 W and features a removable 6-way connector for easy wiring.
Mounting: It is designed for 35 mm symmetrical DIN rail mounting, which simplifies installation in standard industrial control cabinets.
Dimensions and Weight: The unit measures 47 mm (width) x 131 mm (height) x 111 mm (depth) and weighs only 0.40 kg.
Operating Temperature: The device supports an ambient air temperature range of 0°C to 60°C and a relative humidity range of 10% to 95% without condensation.
Protection and Standards: It carries an IP20 protection rating and complies with EN/IEC 61131-2, UL 1604 Class 1 Division 2, UL 508, CSA C22.2 No 213 Class I Division 2, and CSA C22.2 No 214. Additionally, it holds GL and C-Tick certifications.
Proper installation of the TCSESM043F23F0 ensures optimal network performance. First, mount the switch securely on a 35 mm DIN rail. Next, connect the power supply to the 6-way removable connector, ensuring the voltage is within the specified range. For copper ports, use CAT 5E STP cables with shielded RJ45 connectors. Additionally, configure the IP address and other network parameters via the built-in web server. Finally, set up redundancy features like RSTP and ring coupling according to your network architecture requirements.
Your shipment for the TCSESM043F23F0 includes the following items:
1x Schneider Electric TCSESM043F23F0 Managed Switch
1x 6-way removable power supply connector
1x Product documentation and quick installation guide
How many ports does the TCSESM043F23F0 switch have?
This switch has a total of 4 copper RJ45 ports supporting 10/100BASE-TX.
What is the maximum number of switches in a ring topology?
The TCSESM043F23F0 supports up to 50 switches connected in a single redundant ring.
Does this switch support VLAN configuration?
Yes, the Schneider Electric TCSESM043F23F0 includes full VLAN support for network segmentation.
What type of power supply does this switch require?
It accepts either 18-30 V AC SELV or 9.6-60 V DC SELV power input.
Is the TCSESM043F23F0 suitable for marine applications?
Yes, it holds GL certification, making it suitable for marine and offshore applications.
| Brand Name | |
| Model No. | TCSESM043F23F0 |
| Product Type | Ethernet TCP/IP Managed Switch |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
