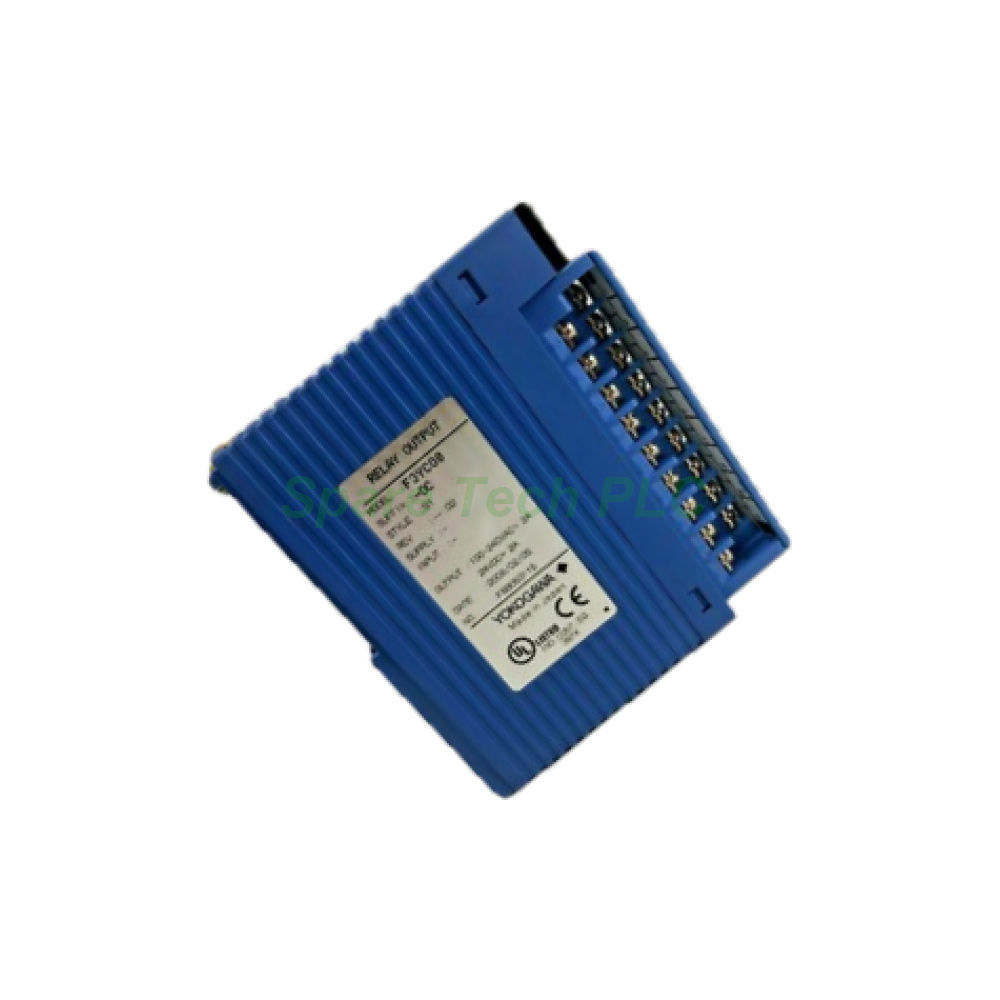

The F3YC08-0C belongs to the Yokogawa FA-M3 and FA-M3V programmable logic controller families. This module offers a relay contact output interface for switching a wide variety of external loads. Specifically, it provides eight output points, and every point is fully independent with its own common terminal. As a result, engineers can mix different load voltages on a single module without interference between channels. This flexibility makes the unit suitable for panels that combine DC solenoids, AC contactors, and indicator lamps.
Furthermore, the F3YC08-0C supports a rated load voltage of DC 5-24V and AC 100-240V. Each point carries a maximum load current of 2A, which covers most small and medium industrial loads. The isolation method uses mechanical contacts rather than semiconductors, so the output presents a true dry contact to the field wiring. Moreover, the response time is 10ms maximum for both OFF to ON and ON to OFF transitions, which suits general-purpose switching tasks.
Additionally, the relay contacts offer a long service life. Mechanical life reaches 20,000,000 operations or more, while electrical life reaches 100,000 operations or more. Besides, the module draws 205mA from the 5V DC backplane and needs no external power supply. The CPU error output HOLD/RESET function is not required for this model, and no surge protector is built in. Therefore, users should add external surge suppression when switching inductive loads.
The F3YC08-0C delivers eight relay contact outputs with all points independent. First, the rated load voltage covers DC 5-24V and AC 100-240V. The maximum load current is 2A per point. In addition, the response time is 10ms maximum in both directions. The isolation method relies on mechanical separation, which blocks DC and AC leakage paths between channels.
Moreover, mechanical life is rated at 20,000,000 operations or more, and electrical life is rated at 100,000 operations or more. Specifically, current consumption is 205mA at 5V DC, and no external power supply is required. The external connection uses an 18-point terminal block with M3.5 screws. Finally, the module has no built-in surge protector, so external protection is recommended for inductive loads.
The F3YC08-0C weighs approximately 180g and connects through an 18-point terminal block with M3.5 screws. The operating temperature range is 0 to 55°C, while storage covers -20°C to 75°C. Besides, both operating and storage humidity range from 10 to 90% RH, non-condensing. The surrounding atmosphere must be free of corrosive gases, flammable gases, or heavy dust. However, note that the relays are not hermetically sealed, so dust and corrosive gases shorten relay life.
Silicone gases deserve special attention. Relays switched in an atmosphere containing silicone gases may form SiO2 deposits on contact surfaces, causing poor electrical contact. The risk is especially high under load conditions below 24V DC and 500mA. Therefore, in such environments, we recommend transistor output modules or other semiconductor-based modules instead.
Installing the F3YC08-0C starts with choosing a panel location that meets the temperature and humidity limits. Next, mount the module in the FA-M3 base unit and confirm it seats firmly on the backplane. After that, wire the loads to the 18-point terminal block using M3.5 screws, and tighten each screw securely. Additionally, keep the enclosure free of dust and silicone-based materials to protect the relay contacts. Finally, add external surge suppression for inductive loads before applying power.
1 x Yokogawa F3YC08-0C Relay Output Module
1 x Terminal Block Cover
1 x Installation Guide
Q1: How many output points does the F3YC08-0C provide?
A1: The F3YC08-0C provides eight relay output points, and all points are fully independent with separate commons.
Q2: What load voltages does this module support?
A2: The F3YC08-0C supports DC 5-24V and AC 100-240V loads, with a maximum current of 2A per point.
Q3: What is the service life of the relay contacts?
A3: Mechanical life reaches 20,000,000 operations or more, while electrical life reaches 100,000 operations or more.
Q4: Why should silicone gases be avoided in the installation environment?
A4: Silicone gases can form SiO2 deposits on relay contacts, causing poor electrical contact, especially below 24V DC and 500mA loads.
Q5: What shipping methods are available for this product?
A5: We ship via Fedex, UPS, and DHL to ensure fast and reliable delivery worldwide.
| Brand Name | |
| Model No. | F3YC08-0C |
| Product Type | Output Module |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
The F3YA08-2N is an 8-point TRIAC output module for Yokogawa FA-M3 series PLCs. It switches 100-240V AC loads at up to 1A per point with photocoupler isolation, CR absorber surge protection, and fast 1ms response for reliable AC control.
The Yokogawa F3YD04-7N is a compact 4-point transistor output module for industrial control systems. It delivers 24V DC at 2A per point with photocoupler isolation, ensuring reliable switching and fast response for demanding automation tasks.
The Yokogawa F3XC08-0N is an 8-point no-voltage contact input module for FA-M3 series PLCs. It combines transformer isolation, a shared 8-point common, and selectable 2 ms or 17 ms response, giving dry-contact panels a compact and cost-efficient input block.
The Yokogawa F3XC08-0C is an 8-point no-voltage contact input module for FA-M3 series PLCs. It uses transformer isolation with separate commons and supports interrupt per point, making it ideal for dry-contact switches and field interlocks.
The F3YC08-0N is an 8-point relay output module for Yokogawa FA-M3 series PLCs. It switches DC 5-24V and AC 100-240V loads at 2A per point and 8A per common, using mechanical isolation and a compact 10-point terminal block.
The Yokogawa F3YD08-6A is an 8-point transistor sink output module for FA-M3 systems. It handles 12-24 V DC loads up to 1 A per point and 4 A per common, with photocoupler isolation and 1 ms response time.

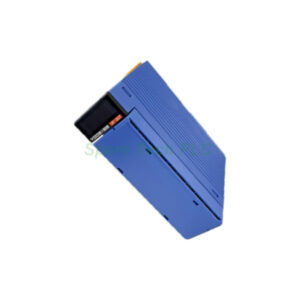

This Yokogawa F3YD08-6B is a source-type transistor output module for FA-M3 series PLCs. It provides 8 output points with a 12-24 VDC load capacity and 1 A per point, ensuring reliable switching for industrial control applications.

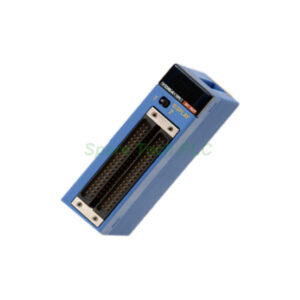

This Yokogawa F3YD08-7A is a sink-type transistor output module for FA-M3 series PLCs. It offers 8 points rated at 12-24 VDC with 2 A per point and 8 A per common, ideal for switching high-current DC loads.
