Siemens 6ES7461-1BA01-0AA0 IM 461-1 Receiver Module

6ES7461-1BA01-0AA0 Siemens SIMATIC S7-400 Interface Module

Product Introduction

The 6ES7461-1BA01-0AA0 belongs to Siemens’ renowned SIMATIC S7-400 series. This interface module works as an IM 461-1 receiver for central coupling applications. It supports PS transfer but does not include a C bus. You can use it to connect remote I/O racks to a central controller reliably.

For instance, this module draws only 120 mA from the 5 V DC backplane bus. Its maximum power loss is just 600 mW, which keeps heat low inside the cabinet. Additionally, the cable length between the first and last interface module can reach up to 1.5 meters. This flexibility simplifies system layout in crowded control panels.

Technical Specifications

The Siemens 6ES7461-1BA01-0AA0 operates with a 5 V DC supply voltage from the backplane. Its current consumption is 120 mA max, ensuring low energy use. Power loss stays at 600 mW max, which reduces cooling requirements.

Furthermore, the hardware configuration allows a maximum cable length of 1.5 meters between the first and last interface module. This distance supports typical central coupling setups without signal degradation. The module has no C bus, so it focuses purely on receiver functions for PS transfer.

Mechanical and Environmental Data

Dimensions are compact: 25 mm width, 290 mm height, and 280 mm depth. The 6ES7461-1BA01-0AA0 weighs approximately 610 g, and the gross weight with packaging is 0.68 kg. Its slim 25 mm width saves valuable rail space in crowded cabinets.

Meanwhile, the module is built for industrial environments. It operates reliably within standard S7-400 temperature and humidity ranges. Therefore, you can deploy it in factories, process plants, and automation cells without concern.

Installation Guidelines

First, mount the 6ES7461-1BA01-0AA0 on a standard S7-400 DIN rail. Ensure the backplane bus connector aligns correctly with adjacent modules. Next, connect the cable between the IM 461-1 receiver and its corresponding transmitter module. Keep the cable length within the 1.5 m maximum limit.

Then, verify the 5 V DC supply from the backplane is stable. The module draws only 120 mA, so power budgeting is straightforward. Finally, configure your hardware in STEP 7. Assign parameters to match your central coupling with PS transfer requirements.

Packaging List

• One Siemens 6ES7461-1BA01-0AA0 IM 461-1 receiver module

• One backplane bus connector (pre-installed)

• One product information sheet

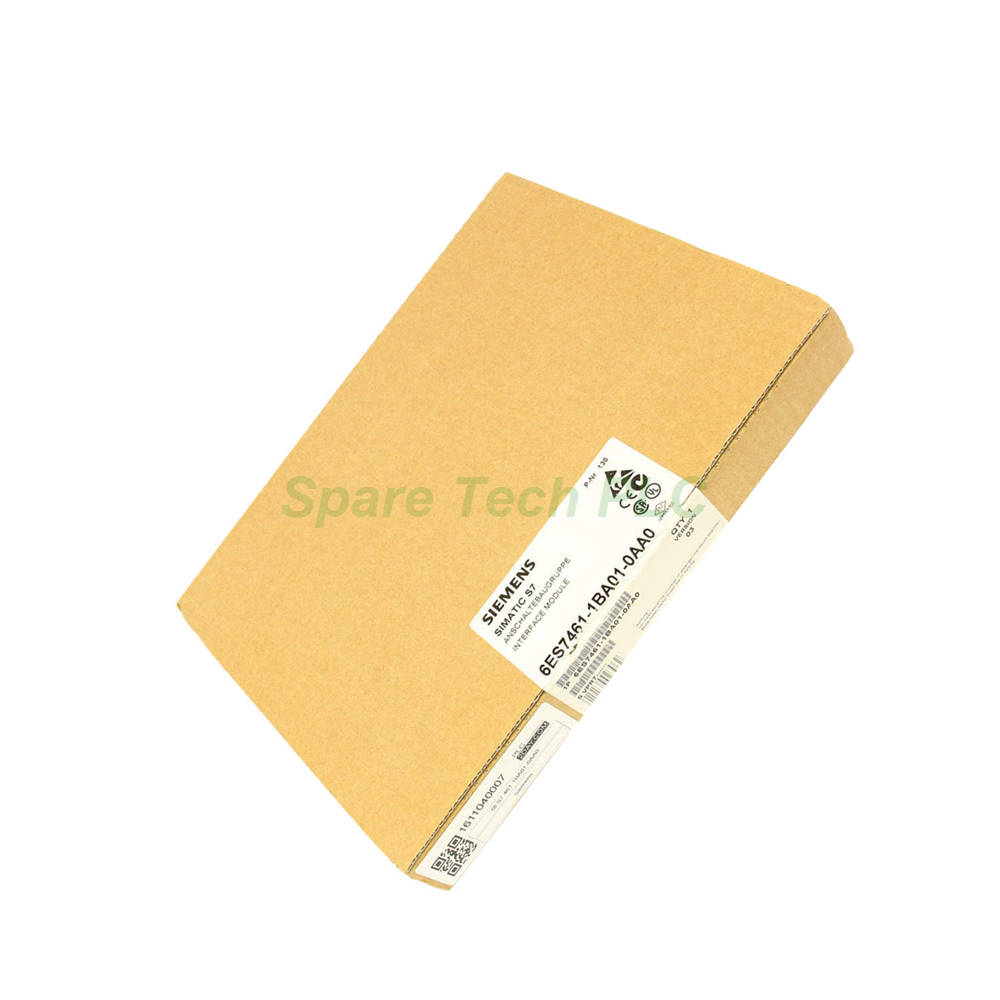

• Anti-static protective packaging

Note: This package does not include certificates or warranty documents.

Shipping Methods

We ship via FedEx, UPS, or DHL to ensure fast and traceable delivery worldwide.

Frequently Asked Questions (FAQ)

1. Can I use the 6ES7461-1BA01-0AA0 with a C bus?
No, this module has no C bus. It is designed for central coupling with PS transfer only.

2. What is the maximum cable length supported by this receiver module?
The maximum cable length between the first and last interface module is 1.5 meters.

3. Does the Siemens 6ES7461-1BA01-0AA0 require an external power supply?
No, it draws 120 mA directly from the 5 V DC backplane bus of the S7-400 rack.

4. How much heat does this IM 461-1 module generate?
Its maximum power loss is 600 mW, so heat dissipation is very low. No additional cooling is typically needed.

5. Is the 6ES7461-1BA01-0AA0 compatible with all S7-400 CPUs?
Yes, it works with S7-400 CPUs that support central coupling via IM 461-1 receiver modules. Always check your hardware configuration in STEP 7.
