The 6ES7323-1BL00-0AA0 is a versatile digital combo module from Siemens. It belongs to the SIMATIC S7-300 product family. This SM 323 module integrates 16 digital inputs and 16 digital outputs. It provides a compact and cost-effective I/O solution. Each channel is optically isolated for enhanced signal integrity. The module operates reliably across a wide temperature range. Its design supports both horizontal and vertical installation. This makes it suitable for various industrial automation applications.
The Siemens 6ES7323-1BL00-0AA0 requires a 24V DC load voltage. The permissible range is from 20.4V to 28.8V DC. It draws a maximum of 80 mA from the load supply without load. It also consumes 80 mA from the backplane bus. Typical power loss for this SM 323 is 6.5 W.
For the digital inputs, there are 16 channels available. They comply with type 1 according to IEC 61131. The input voltage rating is 24V DC. Typical input current is 7 mA per channel. Input delay ranges from 1.2 ms to 4.8 ms for both transitions. For cable connections, shielded cables can run up to 1000 meters. Unshielded cables are limited to 600 meters.
The total current per output group varies with temperature. For horizontal installation at 40°C, the maximum is 4 A. At 60°C, it drops to 3 A. For vertical installation, the maximum is 2 A at 40°C. At 60°C for vertical mounting, it is 1 A. These limits ensure reliable operation under all conditions.
The number of simultaneously controllable inputs also depends on temperature. Up to 40°C, you can use all 16 inputs. Up to 60°C, the limit is 8 inputs. This derating ensures thermal stability.
The 6ES7323-1BL00-0AA0 provides optical isolation for both inputs and outputs. The digital inputs are isolated in groups of 16. The digital outputs are isolated in groups of 8. Additionally, isolation exists between channels and the backplane bus. This protects your system from electrical interference.
Diagnostic indication is provided via green LEDs. Each input and output channel has its own status indicator. However, this module does not support diagnostic alarms. It does not offer isochronous mode either.
Follow these steps for a successful installation.
First, ensure the S7-300 rack is de-energized.
Next, mount the 6ES7323-1BL00-0AA0 onto the rail.
Then, connect it to adjacent modules using the bus connector.
After that, attach the 24V DC supply to the front connector.
Finally, wire your field devices to the 40-pin front connector.
Always observe the current derating curves for your installation. Use shielded cables for long runs to reduce noise. Ensure proper grounding to maintain signal quality.
The package includes the following items:
6ES7323-1BL00-0AA0 digital I/O module (1 unit)
40-pin front connector (1 unit)
Product information sheet (1 copy)
Note: Cables and mounting hardware are not included.
We ship all orders via reliable carriers. These include FedEx, UPS, and DHL. Your module will arrive safely and promptly. Tracking details will be provided after dispatch.
1. How many inputs and outputs does the Siemens 6ES7323-1BL00-0AA0 have?
It has 16 digital inputs and 16 digital outputs. This provides a total of 32 I/O points in a single module.
2. What is the maximum output current per channel?
The nominal output current is 0.5 A per channel. The maximum is 0.6 A within the temperature range.
3. Can I use this module in a vertical mounting position?
Yes, vertical installation is supported. However, total group current is reduced to 2 A at 40°C.
4. Does this SM 323 module support diagnostic alarms?
No, it does not support diagnostic alarms. It only provides status indication via green LEDs for each channel.
5. What is the maximum cable length for the inputs?
For shielded cables, the maximum length is 1000 meters. For unshielded cables, it is 600 meters.
| Brand Name | |
| Model No. | 6ES7323-1BL00-0AA0 |
| Product Type | Digital Combination Module |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
The Siemens 6GK7343-1EX30-0XE0 is a communications processor for the S7-300 system. It connects your PLC to Industrial Ethernet via ISO and TCP/IP protocols. This CP 343-1 module functions as a PROFINET IO controller or device. It includes an integrated 2-port switch for flexible network topologies.
The Siemens 6ES7332-5HB01-0AB0 is a compact analog output module for the SIMATIC S7-300 series. This SM 332 unit provides 2 isolated outputs with 11/12-bit resolution. It supports voltage and current signals with fast 0.8 ms conversion time. The module supports removal and insertion under power with an active backplane bus.
The Siemens 6ES7331-7PF11-0AB0 is a specialized thermocouple input module for the SIMATIC S7-300 series. This SM 331 unit provides 8 isolated inputs with 16-bit resolution. It supports a wide range of thermocouple types including B, E, J, K, L, N, R, S, T, U, C, and TXK. The module includes internal cold junction compensation and comprehensive diagnostic functions.
The Siemens 6ES7331-7NF10-0AB0 is a high-precision analog input module for the SIMATIC S7-300 series. This SM 331 unit delivers 8 isolated inputs with 16-bit resolution. It supports voltage and current signals with excellent accuracy of 0.05%. The module features high-speed conversion (10 ms in 4-channel mode) and comprehensive diagnostic capabilities.
The Siemens SIMATIC S7-300 CPU 317-2 DP is a high-performance central processing unit designed for medium to large automation systems. Featuring 1 MB of integrated work memory and dual PROFIBUS DP interfaces, this module ensures fast processing times and flexible communication. Its robust MMC backup guarantees data integrity, making it ideal for complex industrial applications.
The Siemens 6ES7326-2BF10-0AB0 is a fail-safe digital output module designed for SIMATIC S7 F-systems. It provides ten 24 V DC/2 A outputs with diagnostic alarms, meeting the highest safety standards including SIL3, Cat. 4, and PLe. Its robust design ensures reliable performance in safety-critical applications.

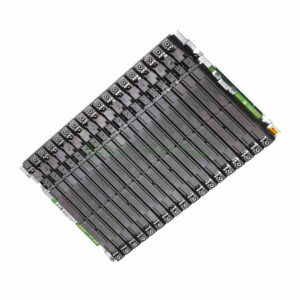

The Siemens 6ES7400-2JA10-0AA0 is an aluminum UR2-H rack for the SIMATIC S7-400 system. It features 18 slots organized into two separate segments of 9 slots each, supporting both central and distributed configurations. This robust rack includes separated communication and P buses, making it ideal for high-availability and redundant automation setups.
