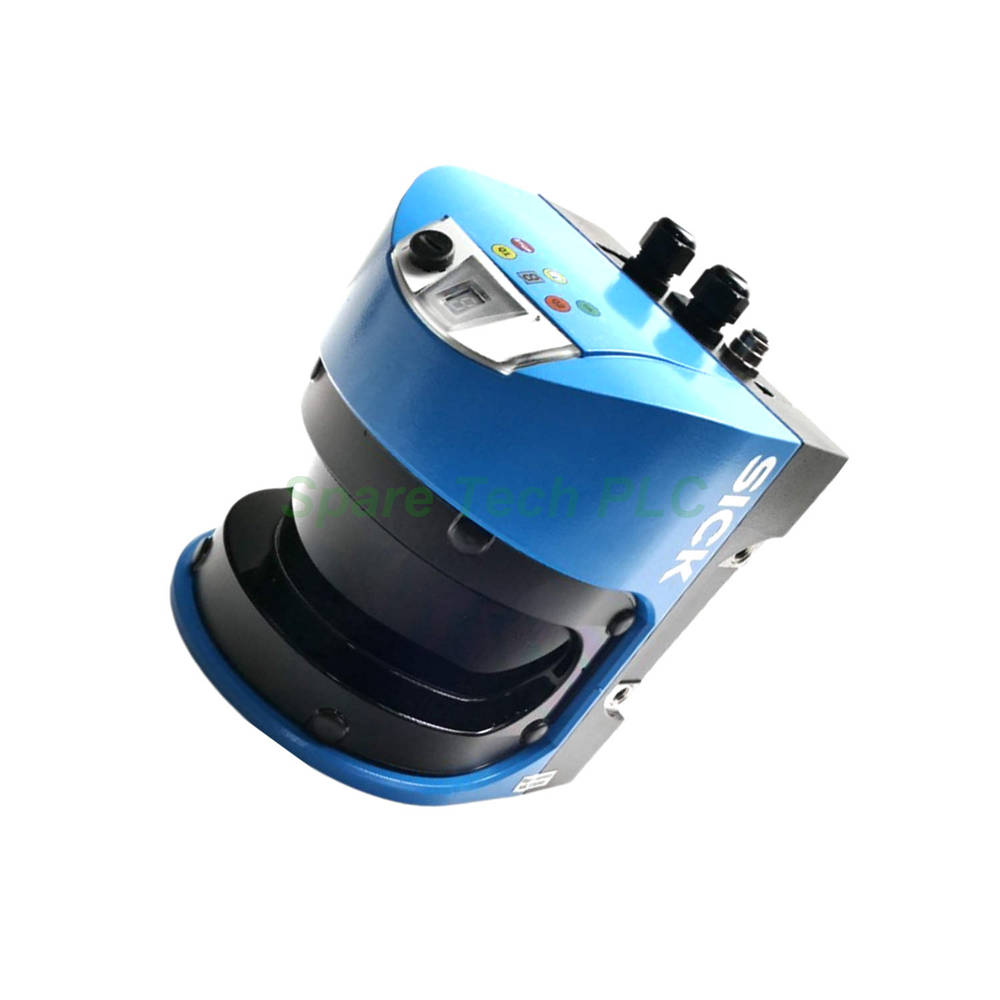

The Sick LMS500-20000 PRO belongs to the LMS500 series. This sensor combines lidar and radar technologies for indoor applications. It uses an infrared light source at 905 nm with laser class 1 safety. The device delivers high-resolution scanning across a 190° horizontal aperture. Furthermore, it supports scanning frequencies from 25 Hz to 100 Hz. Therefore, it suits dynamic industrial environments. The LMS500-20000 PRO also offers flexible angular resolution from 0.042° to 1°. This makes it a strong choice for field evaluation and object detection.
The Sick LMS500-20000 PRO provides a working range of 0.2 m to 80 m. At a 10% remission factor, the scanning range reaches 26 m. Measurement accuracy is ±12 mm. Additionally, the sensor evaluates up to 5 echoes. The spot size divergence is 4.7 mrad. At the viewing window, the spot size is 13.5 mm. In 26 m, it becomes 136 mm. In 40 m, it reaches 202 mm. The response time is ≥10 ms.
Angular resolution options include 0.042°, 0.083°, 0.1667°, 0.25°, 0.333°, 0.5°, 0.667°, and 1°. The scan field flatness is ±0.72° combined. Typical conical error is 1 sigma value at -0.11° ± 0.1°. Typical tilt is 1 sigma value at +0.15° ± 0.08°. The sensor also features self-heating. However, fog correction is not available. The LMS500-20000 PRO includes 10 field sets and 10 simultaneous evaluation cases. Filter options cover echo, fog, particle, average, and glare filters.
Systematic error is ±25 mm from 1 m to 10 m. It is ±35 mm from 10 m to 20 m. Statistical error is 7 mm from 1 m to 10 m. It is 9 mm from 10 m to 20 m. These values are typical and depend on environmental conditions.
The Sick LMS500-20000 PRO uses an AlSi12 housing in light blue RAL 5012. The window material is polycarbonate with a scratch-resistant coating. Its enclosure rating is IP65 according to EN 60529. Protection class is III per IEC 61140:2016-11. The weight is 3.7 kg. Dimensions are 160 mm x 155 mm x 185 mm. The MTBF and MTTFD both exceed 100 years.
For connectivity, the sensor offers one M12 round connector. It also includes one system plug with a screw terminal block and two cable glands. Supply voltage is 24 V DC with ±20% tolerance. Power consumption is 22 W. The LMS500-20000 PRO supports Ethernet, TCP/IP, UDP/IP, serial RS-232, RS-422, CAN, and USB Mini-USB interfaces. Ethernet data transmission rates are 10/100 MBit/s. Serial rates range from 9.6 kBaud to 500 kBaud.
Digital inputs include 4 channels for digital, encoder HTL, and synchronization. Digital outputs include 6 channels. Optical indicators include 5 LEDs and a 7-segment display. Ambient operating temperature ranges from 0 °C to +50 °C. Storage temperature ranges from –40 °C to +70 °C. Ambient light immunity is 70,000 lx. Object remission ranges from 2% to >1,000% for reflectors.
Vibration resistance covers sine test 10 Hz to 150 Hz. Amplitude is 0.35 mm to 5 g over 20 cycles. Shock resistance is 15 g, 11 ms, 6 single shocks per axis. It also handles 10 g, 16 ms, 1,000 continuous shocks per axis. Impact resistance meets IK05, IK06, and IK07 per DIN EN 50102:09-1997. EMC emitted radiation and immunity follow industrial environment standards.
First, mount the Sick LMS500-20000 PRO on a stable bracket. Use the M12 round connector for power and data. Next, connect the system plug with the screw terminal block. Ensure the supply voltage stays within 24 V DC ±20%. The sensor requires a clear view of the scan field. Avoid direct sunlight above 70,000 lx. Meanwhile, keep the window clean to maintain accuracy.
For network setup, use Ethernet TCP/IP or UDP/IP. The host and AUX functions support NTP. Serial RS-232 and RS-422 are available for legacy systems. CAN supports output extension and synchronization. USB Mini-USB serves as a service interface. After wiring, configure the 10 field sets and 10 evaluation cases. Finally, test the response time and filter settings. The LMS500-20000 PRO works best in indoor environments without fog correction.
1 x Sick LMS500-20000 PRO Lidar and Radar Sensor
1 x M12 Round Connector
1 x System Plug with Screw Terminal Block
2 x Cable Glands
1 x Quick Start Guide
Q1: What is the working range of the Sick LMS500-20000 PRO?
A: The working range is 0.2 m to 80 m. At 10% remission, the scanning range is 26 m.
Q2: How many scanning frequencies does this sensor support?
A: It supports 25 Hz, 35 Hz, 50 Hz, 75 Hz, and 100 Hz. This gives flexibility for different speeds.
Q3: What is the measurement accuracy of the LMS500-20000 PRO?
A: Measurement accuracy is ±12 mm. Systematic error is ±25 mm from 1 m to 10 m.
Q4: Which interfaces are available on this lidar sensor?
A: It offers Ethernet, serial RS-232, RS-422, CAN, and USB. Ethernet supports TCP/IP and UDP/IP.
Q5: How is the Sick LMS500-20000 PRO shipped?
A: We ship via Fedex, UPS, and DHL. Each unit weighs 3.7 kg and comes with a 4.2 kg gross weight.
| Brand Name | |
| Model No. | LMS500-20000 |
| Product Type | Lidar and Radar Sensor |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |

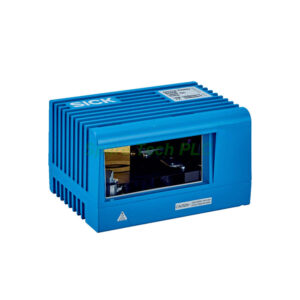

The SICK LMS400-2000 is a compact indoor 2D laser scanner built for level control. It offers a 0.7–3 m working range, 300–500 Hz scanning frequency, and configurable angular resolution. The sensor provides TCP/IP and RS-232 interfaces for easy integration.

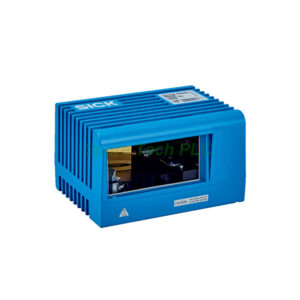

The SICK LMS400-1000 is a compact indoor 2D laser scanner for level control. It offers a 0.7–3 m working range, 230–500 Hz scanning frequency, and configurable angular resolution. The sensor provides TCP/IP and RS-232 interfaces for easy integration.
