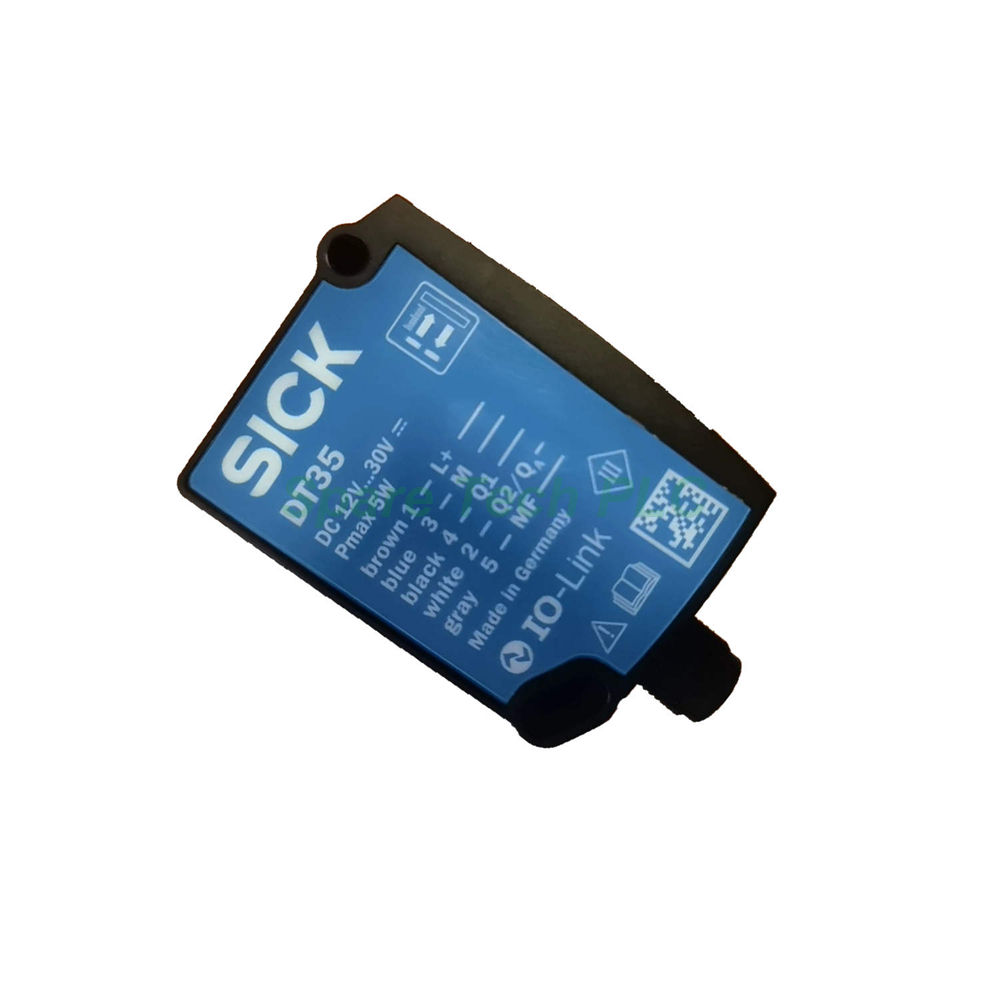

The SICK DT35-B15251 belongs to the Dx35 Distance Sensor series. It uses HDDM™ high definition distance measurement technology. This sensor measures distances from 50 mm to 12,000 mm on 90% remission targets. Furthermore, it works without a reflector on natural surfaces. The device suits fast positioning, packaging lines, and material handling. Additionally, its compact plastic housing saves valuable mounting space.
The DT35-B15251 provides a measuring range of 50 mm to 12,000 mm on 90% remission. On 18% remission, the range reaches 5,300 mm. On 6% remission, it reaches 3,100 mm. It uses a visible red laser diode at 658 nm. The laser class is Class 2 per IEC 60825-1:2014. Average optical power stays below 1 mW. Response time depends on the speed setting. Super Fast mode delivers 2.5 ms, while Super Slow mode reaches 96.5 ms. Repeatability ranges from 0.5 mm to 5 mm. Measurement accuracy is typically ± 10 mm. Moreover, the visible laser spot simplifies optical alignment over long distances.
The sensor includes one digital output Q1. It works as push-pull PNP or NPN. IO-Link V1.1 communication is also supported. A shared configurable output Q2 offers three modes. It can work as analog current from 4 mA to 20 mA with a load up to 450 Ω. It can also provide analog voltage from 0 V to 10 V with a load of at least 50 kΩ. Alternatively, Q2 works as a digital push-pull output. A multifunctional input is included. The supply voltage ranges from DC 12 V to 30 V. Reverse-polarity protection is built in. Power consumption is ≤ 1.7 W at +20 °C without load. For instance, electrical connection uses a male M12 5-pin connector.
The operating temperature range is -30 °C to +55 °C at Uv ≤ 24 V. Storage temperature ranges from -40 °C to +75 °C. The enclosure protection rating is IP65 per EN 60529. Physical dimensions are 32 mm x 58.6 mm x 42.7 mm. The housing uses plastic ABS/PC with an acrylic glass PMMA optical window. The device weighs approximately 65 g. Besides, the lightweight design suits moving gantry and robot applications.
First, mount the sensor on a stable bracket facing the target surface. Next, connect the M12 5-pin cable for power and output signals. Then, select the speed setting that matches your cycle time needs. Meanwhile, verify the supply voltage stays within DC 12 V to 30 V. After that, configure Q2 as analog current, analog voltage, or digital output. If IO-Link is active, keep the supply voltage above 18 V. The visible red laser spot helps with precise alignment. Finally, teach the measuring window using the sensor buttons or IO-Link.
1x SICK DT35-B15251 Distance Sensor
1x M12 5-pin Connector
1x Quick Start Guide
1x Mounting Bracket Set
1. Does the DT35-B15251 need a reflector?
No, it uses direct diffuse measurement. It works on natural surfaces without any reflector.
2. What is the maximum measuring range of this model?
The sensor reaches up to 12,000 mm on 90% remission. On 6% remission, it reaches 3,100 mm.
3. What output types does the DT35-B15251 provide?
Q1 offers push-pull PNP/NPN or IO-Link V1.1. Q2 offers analog current, analog voltage, or digital push-pull.
4. What is the fastest response time of this sensor?
Super Fast mode delivers a 2.5 ms response time. Super Slow mode reaches 96.5 ms for stable readings.
5. What shipping methods are available?
We ship via Fedex, UPS, and DHL. Delivery times vary by destination.
