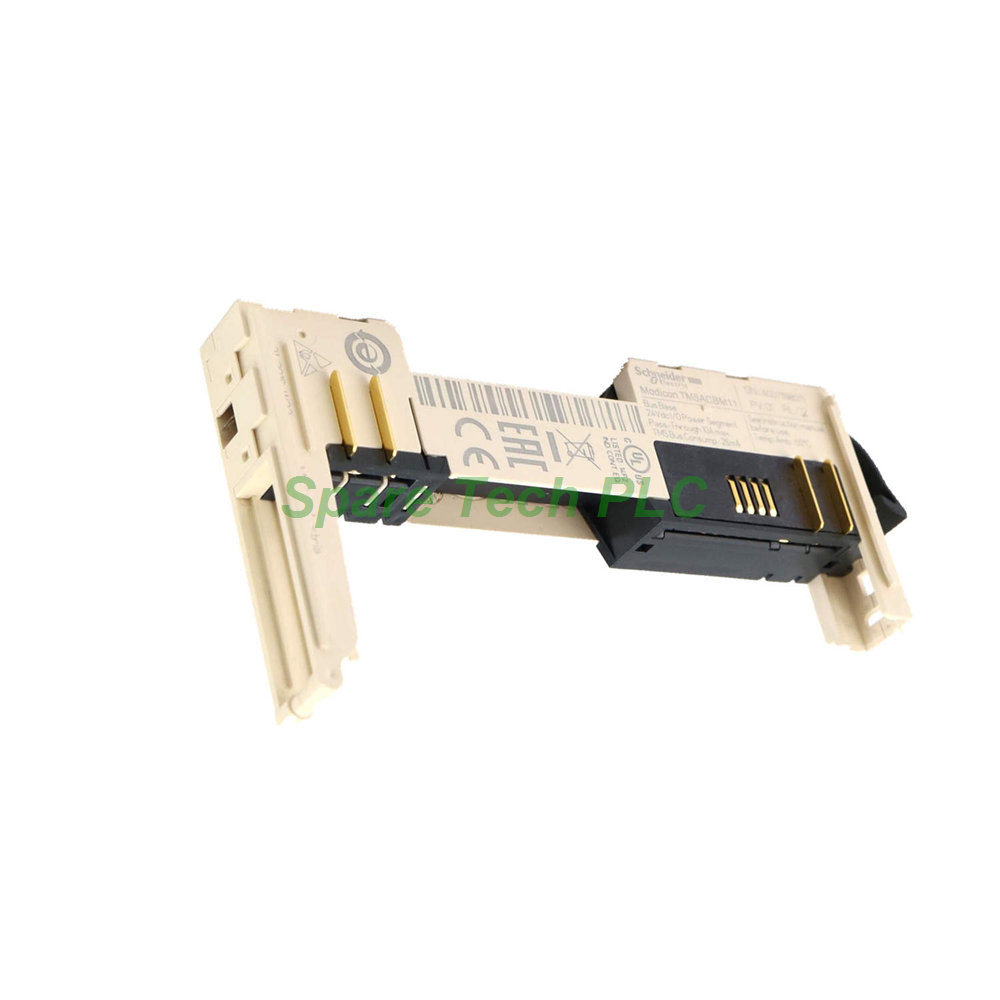

Schneider TM5ACBM11 Bus Base 24V DC Module

Product Introduction

The Schneider Electric TM5ACBM11 serves as a fundamental building block within the Modicon TM5 modular I/O system. This white bus base supports 24V DC electronic modules exclusively. It provides both the physical mounting and the electrical interconnections for a single I/O slice. The TM5ACBM11 establishes the connection points for the electronic module and its removable terminal block. Its primary role involves passing through the 24V DC I/O power segment. Furthermore, it facilitates communication via the internal TM5 bus.

Technical Specifications

Electrical Characteristics

The TM5ACBM11 bus base requires a rated supply voltage of 24V DC. It provides a pass-through for the 24V DC I/O power segment. This feature enables the connected electronic modules to receive operating power. Consequently, field devices attached to those modules also receive the necessary voltage.

Physical Characteristics

This bus base features a distinctive white color. The color-coding system serves as a critical safety indicator. For instance, the white color designates compatibility exclusively with 24V DC electronic modules. The TM5ACBM11 weighs only 0.02 kg. Therefore, it adds minimal weight to your overall control system configuration.

Compatibility

The TM5ACBM11 works seamlessly with numerous 24V DC electronic modules. Specifically, these include remote transmitter modules, counter modules, and discrete I/O modules. Moreover, it supports common distribution modules and various analog modules. Additionally, this bus base integrates perfectly with Modicon LMC058 motion controllers and Modicon M258 logic controllers.

Mechanical and Environmental Specifications

Dimensions and Mounting

The TM5ACBM11 mounts easily onto a standard symmetrical DIN rail. It incorporates a locking mechanism for secure attachment. The bus base also features integrated guides. These guides ensure proper insertion and locking of the slice I/O module.

System Architecture

A "slice" in the TM5 system comprises three distinct components. First, you have the bus base. Next, you install the electronic module. Finally, you attach the terminal block. The TM5ACBM11 serves as the essential foundation for this three-part architecture. Furthermore, it houses the power and data contacts. These contacts enable seamless system operation.

Environmental and Safety

This bus base carries an IP20 rating. Therefore, it suits installation in protected environments. A slice must consist of components with matching colors. The TM5ACBM11 ensures compatibility and safe operation when you use it correctly. Moreover, its compact design saves valuable cabinet space.

Installation and Wiring Guide

Mechanical Installation

First, mount the TM5ACBM11 onto a standard DIN rail. Use the integrated locking mechanism to secure it firmly in place. The lever system allows easy opening and closing of the latch. Ensure the base attaches securely before you proceed to the next step.

Module Assembly

Next, carefully insert your compatible 24V DC electronic module into the guides on the TM5ACBM11. Press down until you hear a distinct click. This sound confirms that the module has seated correctly. Finally, attach the corresponding terminal block to the electronic module. This action completes the slice assembly process.

Color Coding Rule

Remember that the TM5ACBM11 is a white bus base. You must only use it with white 24V DC electronic modules and terminal blocks. This color rule is crucial for safety and proper system function. Do not mix colors, as components may be incompatible. Besides ensuring safety, this rule simplifies troubleshooting and maintenance.

Addressing

Some configurations of the bus base include address setting rotary switches. These switches define the slice position within the I/O island. Refer to your system's manual for specific addressing procedures. Proper addressing ensures correct communication between the controller and the TM5ACBM11.

Packaging and Logistics Information

Packaging Details

• Unit Type of Package: PCE

• Package 1 Height: 1.700 cm

• Package 1 Width: 5.400 cm

• Package 1 Length: 10.700 cm

• Package 1 Weight: 0.027 kg

Shipping and Logistics

We ship this item using premium courier services. Delivery will be handled by Fedex, UPS, or DHL. The module is packaged securely to prevent damage during transit. International shipping is available. Additionally, tracking information will be provided immediately after dispatch.

Frequently Asked Questions (FAQ)

1. What is the function of the TM5ACBM11 bus base?

The TM5ACBM11 provides the physical and electrical foundation for a slice in the Modicon TM5 system. It supports the electronic module and supplies power and data connections.

2. What type of electronic modules does the TM5ACBM11 support?

This white bus base supports 24V DC electronic modules exclusively. For example, it works with digital, analog, counter, and other specialized I/O modules that operate on 24V DC.

3. Can I use a white bus base with a gray electronic module?

No, you must never do this. A slice requires components that all share the same color. The color indicates voltage and module type compatibility.

4. What are the components of a TM5 slice?

A TM5 slice consists of three main components: the bus base (like the TM5ACBM11), the electronic module, and the terminal block. These three parts together form a complete functional unit.

5. Does the TM5ACBM11 support AC modules?

No, it does not. AC modules require a black bus base (reference TM5ACBM12). The white TM5ACBM11 works exclusively with 24V DC electronic modules.
