Schneider Electric TM5ACBM12 Bus Base Module

TM5ACBM12 Modicon TM5 Bus Base for AC Modules

Product Introduction

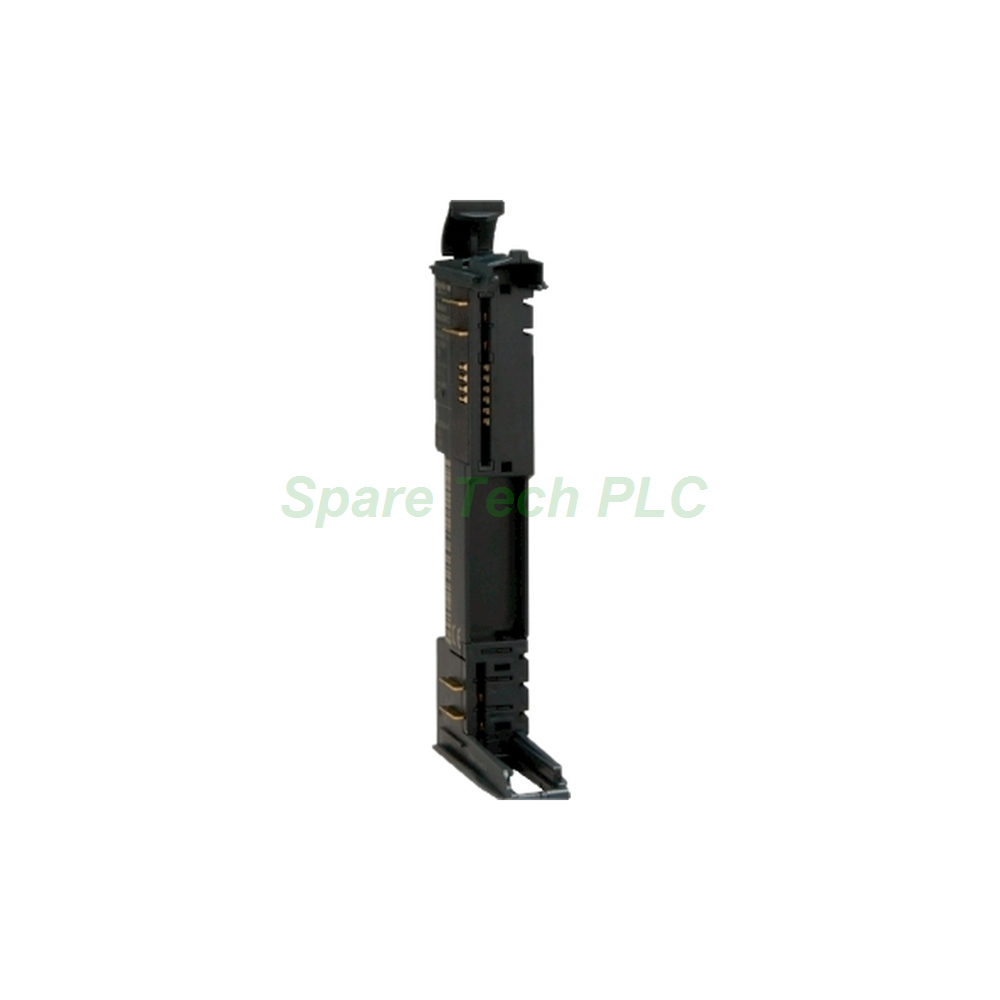

The Schneider Electric TM5ACBM12 bus base provides a foundational building block for the Modicon TM5 IP20 modular I/O system. This black base serves specifically AC electronic modules, offering both mechanical support and electrical connectivity. It mounts directly onto a standard DIN rail and creates the physical and electrical backbone for your I/O slices.

This TM5ACBM12 bus base works with 100…240 V AC discrete input modules and 30 V DC/230 V AC discrete output modules, including relay types. Its primary role involves mounting the electronic module, ensuring proper data transmission to the TM5 bus, and distributing power across the I/O segment. Moreover, the black color coding helps you quickly identify it as the correct base for AC modules, simplifying both installation and future maintenance.

Designed for compatibility with Modicon M258 and LMC058 controllers, this bus base is a key part of building flexible and scalable remote I/O islands. Its compact and lightweight design makes it an efficient choice for control cabinets where space is at a premium.

Key Technical Specifications

The TM5ACBM12 offers clear and dependable electrical characteristics. It has a rated supply voltage of 240 V AC. On the bus side, it draws 26 mA from the TM5 power bus and has a maximum power dissipation of just 0.13 W. This low power consumption contributes to the overall energy efficiency of your control system.

Physically, this bus base is compact. Its dimensions are 12.5 mm in width, 85 mm in depth, and 99 mm in height. The net weight is a mere 0.02 kg, with a single-unit package weighing 27 grams. It mounts on a symmetrical DIN rail, and a lever opens the locking mechanism for quick and secure assembly.

An important compatibility rule for the TM5ACBM12 requires that you assemble it exclusively with other black components—namely, a black electronic module and a black terminal block. This color-matching system, combined with functional compatibility checks, helps prevent dangerous mismatches. Electronic modules with 30 V DC/230 V AC relays specifically require this bus base.

Environmental Durability and Compliance

While the TM5ACBM12 is a passive accessory, it meets the same high standards as the active modules in the TM5 system. It carries an IP20 protection degree, meaning it protects against solid objects larger than 12.5 mm, which is standard for control cabinet installations.

Furthermore, this bus base belongs to Schneider Electric's Green Premium product program. It contains no PVC or toxic heavy metals like mercury. It also complies proactively with the EU RoHS Directive and contains no REACh Substances of Very High Concern (SVHC) above the threshold. The product also holds GOST-R, C-Tick, cULus, and CSA certifications.

Installation and Mounting Guidance

Mounting the TM5ACBM12 is a straightforward process. A standard symmetrical DIN rail works best for this base, making integration into new or existing cabinets easy. A lever on the base opens the locking mechanism, allowing you to clip it directly onto the rail.

After installing the bus base, you can insert the corresponding I/O module and terminal block. Remember to follow the color compatibility rule: black bus base, black module, and black terminal block. This ensures not only a proper physical fit but also that electrical characteristics match correctly, preventing potential hazards. For vertical mounting, ensure you follow the temperature derating guidelines found in the system's installation manual.

Packaging and Logistics

Each individual TM5ACBM12 comes in a single-unit package (PCE type) measuring 10.5 cm (L) x 5.4 cm (W) x 1.6 cm (H) and weighing 27 grams. For high-volume needs, a bulk package (S01 type) is available containing 54 units, with dimensions of 40 cm x 15 cm x 15 cm and a total weight of 1.745 kg.

All shipments go out via trusted global couriers, including FedEx, UPS, and DHL. This ensures your TM5ACBM12 bus bases arrive quickly and safely to support your project timelines. The product carries an 18-month warranty from Schneider Electric.

Frequently Asked Questions

1. Which controllers are compatible with the TM5ACBM12?
The TM5ACBM12 bus base is compatible with the Modicon M258 and LMC058 controller ranges.

2. What type of modules can I use with this bus base?
This base is specifically designed for 100…240 V AC discrete input modules and 30 V DC/230 V AC discrete output modules. Additionally, it is mandatory for electronic modules with relays for 30 V DC/230 V AC.

3. Why is color coding important for this bus base?
The black color indicates that this bus base is for AC modules. A slice must only consist of components of a single color to ensure functional compatibility. Assembling different colors, like a black base with a gray module, is not permitted.

4. Can I mount this bus base on a panel?
The TM5ACBM12 is primarily designed for DIN rail mounting using its built-in locking lever. For panel mounting, you would need to use a separate fixing kit as an accessory.

5. Is the TM5ACBM12 an active component requiring configuration?
No, this is a passive bus base. It does not require any software configuration. Its role is strictly mechanical and electrical, providing the mounting and interconnection foundation for the I/O modules.
