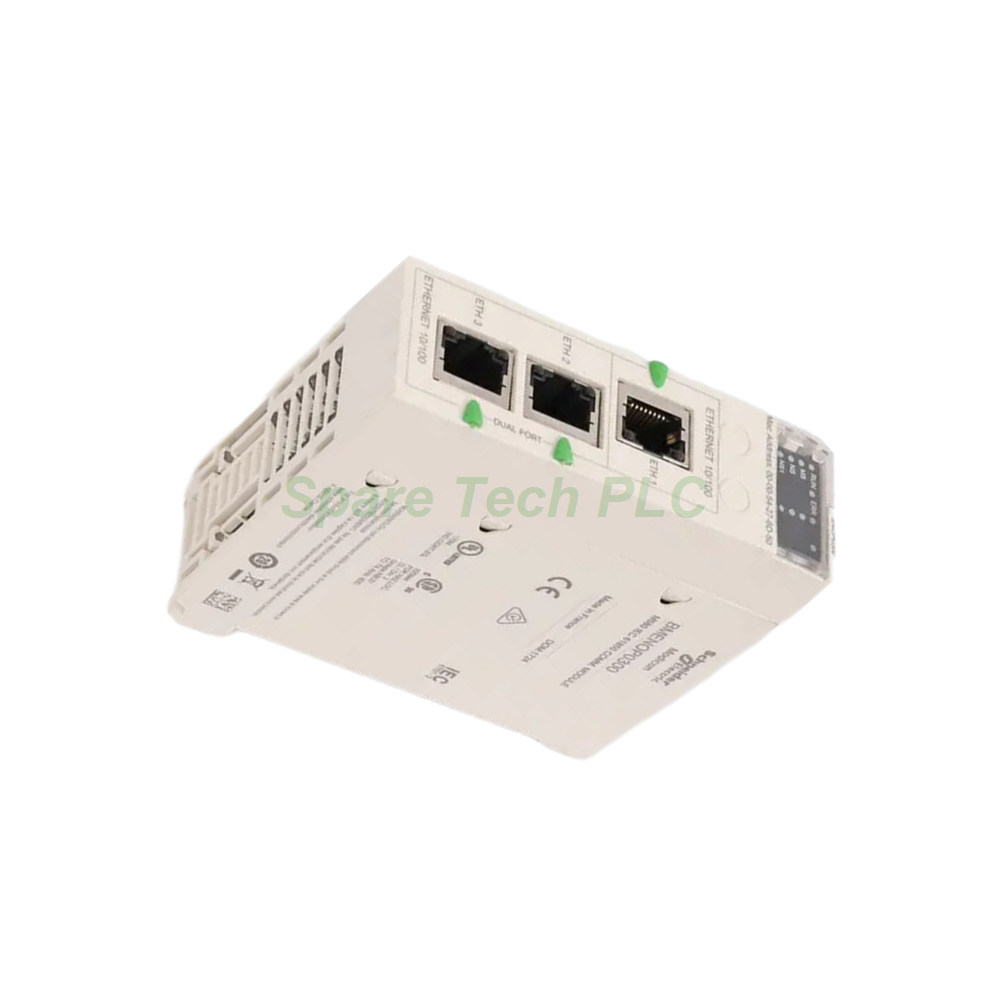

Schneider BMENOP0300 Modicon M580 Communication Module

BMENOP0300 Modicon M580 Communication Module

Product Introduction

The BMENOP0300 belongs to the renowned Modicon M580 range of PACs. Specifically, this communication module expands the networking capabilities of your automation system. It features three independent 10/100BASE-TX Ethernet physical interfaces. Consequently, it serves as a robust gateway for high-speed data transmission. Furthermore, the BMENOP0300 module supports both client and server MMS messaging services per IEC 61850. This makes it an excellent choice for power utility and critical infrastructure projects. Additionally, its support for GOOSE messaging ensures fast peer-to-peer event communication. For standard industrial needs, it also handles Modbus TCP messaging with ease. Therefore, this single module streamlines connectivity and reduces hardware complexity.

Technical Specifications

Focusing on its core capabilities, the BMENOP0300 offers versatile communication services. First, it acts as an MMS messaging client and server simultaneously. This dual role facilitates flexible data access and device control. Second, it supports GOOSE (Generic Object Oriented Substation Event) profiles. This feature enables high-speed, real-time signal exchange between intelligent electronic devices. Third, the module supports Modbus TCP messaging for seamless integration with legacy and modern equipment. Moreover, it includes RSTP (Rapid Spanning Tree Protocol) support for network redundancy. This ensures network resilience and fault tolerance. The module also provides IP forwarding functionality, which extends network addressing capabilities.

The physical interfaces consist of three Ethernet ports. These ports operate at both 10 Mbit/s and 100 Mbit/s speeds. Consequently, you can integrate the BMENOP0300 into various network topologies. The module transmits data over standard Ethernet cables, simplifying installation. It consumes 1250 mA from a 3.3 V DC internal supply. This power draw is typical for modules in the Modicon M580 family. Furthermore, its standard format allows for easy rack mounting. The module fits neatly into existing M580 backplanes.

Mechanical and Environmental Parameters

The BMENOP0300 is built for demanding industrial conditions. Its operational ambient temperature ranges from 32 °F to 140 °F (0 °C to 60 °C). For storage, it can withstand extreme temperatures from -40 °F to 185 °F (-40 °C to 85 °C). Additionally, the module operates reliably in relative humidity levels from 0 % to 95 %, without condensation. This wide humidity tolerance prevents corrosion and short circuits. The maximum operating altitude is 6561.68 feet (2000 meters) above sea level. Therefore, it is suitable for most plant floor and outdoor installations. The module complies with the Low Voltage Directive (2014/35/EU) and EMC Directive (2014/30/EU). This compliance guarantees safety and electromagnetic compatibility in industrial settings.

Installation Guidelines

Installing the BMENOP0300 communication module requires careful planning. First, ensure the M580 PAC chassis is powered off. Next, locate an empty slot in the rack. Align the module with the guide rails and slide it in firmly. Then, secure it by tightening the retaining screws. After physical installation, connect the Ethernet cables to the three RJ45 ports. Use standard Category 5e or better cables for optimal performance. For network redundancy, configure RSTP settings via the programming software. Additionally, set up IP addresses and subnet masks according to your network plan. The module’s LEDs will indicate link status and activity. Refer to the user manual for detailed diagnostic information. Finally, power on the system and verify communication with your PAC.

Packaging List

The package for the BMENOP0300 includes the following items:

• 1 x BMENOP0300 Communication Module

• 1 x Installation Guide (Quick Start)

• Mounting screws (pre-installed on the module)

Note: Cables, software, and terminal blocks are sold separately.

Shipping and Logistics

All orders are shipped using premium express services. We offer reliable delivery through FedEx, UPS, and DHL. Consequently, you can expect timely and secure transportation. Tracking information will be provided once the order is dispatched.

Frequently Asked Questions (FAQ)

1. What is the primary function of the BMENOP0300 module?
The BMENOP0300 serves as a communication interface for the Modicon M580 PAC. It provides three Ethernet ports and supports protocols like IEC 61850 MMS and GOOSE, which are essential for substation automation and industrial networking.

2. Can the BMENOP0300 be used with other Schneider PACs?
Specifically, the BMENOP0300 is designed for the Modicon M580 series. While it is compatible with M580 PACs, it may not physically fit or function with older models like M340. Always check the product compatibility list before purchasing.

3. Does the module support redundant network topologies?
Yes, it supports RSTP (Rapid Spanning Tree Protocol). This feature allows the BMENOP0300 to be part of a redundant network loop, ensuring continuous operation even if one link fails.

4. What type of Ethernet cable is recommended for this module?
For best results, use standard shielded or unshielded twisted-pair cables. Category 5e or Category 6 cables are recommended to support the 100 Mbit/s transmission rate. Ensure the cable length does not exceed 100 meters per segment.

5. How do I check the status of the communication ports?
The BMENOP0300 features diagnostic LEDs on its front panel. These LEDs display link integrity, activity, and speed for each Ethernet port. Additionally, you can monitor the module's health through the PAC's programming software.
