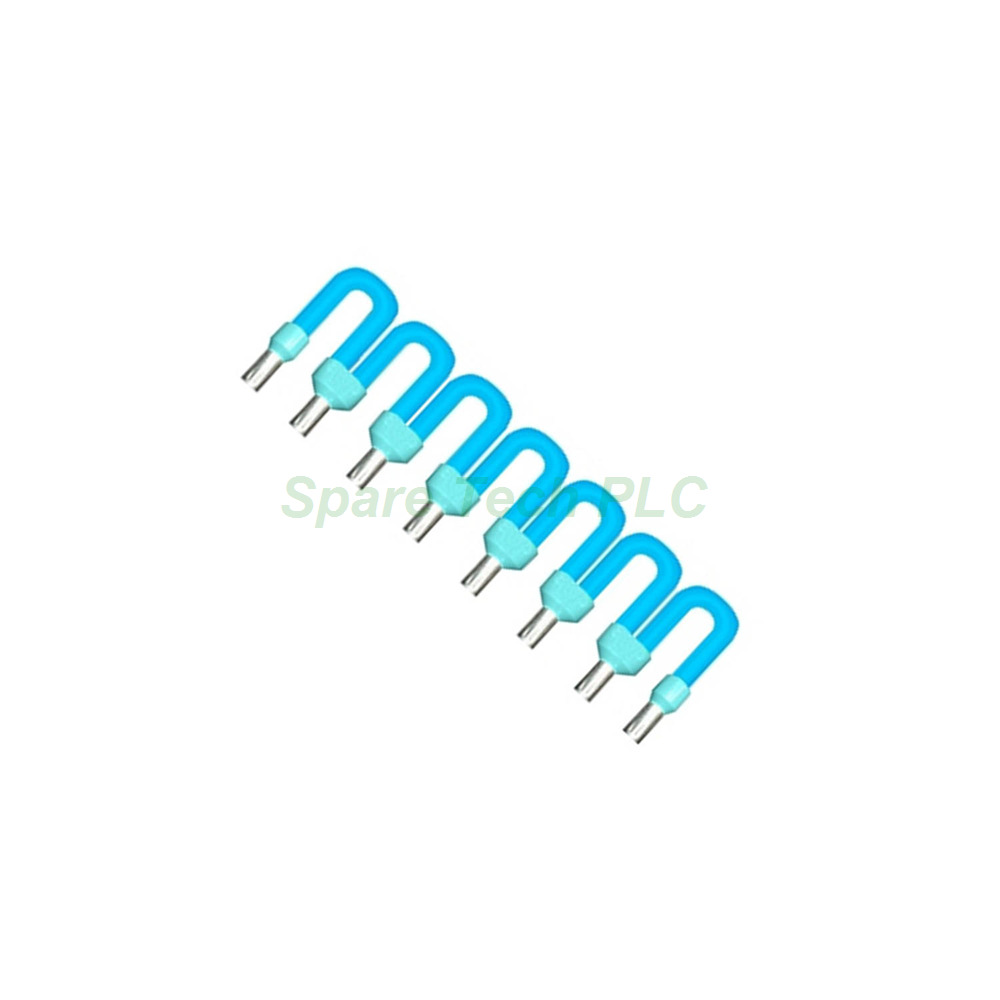

The ABFC08R02B from Schneider Electric provides a simple and effective solution for power distribution within Modicon Momentum systems. This commoning link enables the interconnection of multiple I/O modules, thereby reducing the need for complex wiring. Furthermore, its compact footprint allows it to fit easily into crowded control cabinets. The device operates within a wide ambient temperature range, making it suitable for diverse industrial settings. Consequently, this accessory streamlines system assembly and improves overall wiring organisation.
This section outlines the key parameters of the Schneider Electric ABFC08R02B. The unit functions as a commoning link, specifically designed for the Modicon Momentum product line. It carries a blue exterior finish for easy visual identification. The device dimensions are as follows: a height of 0.2 inches, a width of 1.97 inches, and a length of 2.95 inches. Additionally, it complies with CE standards, confirming its conformity with essential health and safety requirements. The operating ambient temperature range spans from 0°C to a maximum of 60°C, ensuring reliable performance in most factory environments. Meanwhile, the device tolerates both operating and storage humidity levels up to 95% (non-condensing), providing robustness against moisture. Finally, its maximum operational altitude is rated at 1000 metres above sea level, which covers the majority of industrial installations.
The ABFC08R02B boasts a lightweight and space-saving design that simplifies integration. Its compact dimensions contribute to reduced panel space requirements, a valuable attribute in dense control layouts. Moreover, the blue colour coding assists technicians in quickly locating this component during maintenance or troubleshooting. The unit's construction supports dependable performance across a broad spectrum of environmental conditions. For instance, it withstands both high temperature and high humidity scenarios without compromising functionality. Therefore, this commoning link offers a durable and practical accessory for system builders.
Installing the Schneider ABFC08R02B involves a few straightforward steps. First, confirm that the system power is switched off before beginning any installation work. Next, identify the correct slots on the adjacent I/O modules where the link will be inserted. Then, align the commoning link carefully with the corresponding receptacles on the modules. After that, press the unit firmly into place until it clicks securely. Finally, verify that the connection is stable and that no pins are bent or misaligned. For optimal results, avoid forcing the link during insertion, and ensure the modules are properly mounted on the DIN rail beforehand.
Your shipment of the ABFC08R02B includes the following items:
Commoning link unit (1 pc)
Installation instruction sheet
All orders for the Schneider Electric ABFC08R02B are dispatched using premium courier services. We primarily ship via Fedex, UPS, or DHL to ensure fast and traceable delivery. Consequently, you can expect your package within 3 to 5 business days for most international destinations. Each parcel is securely packaged to prevent damage during transit.
1. Which product series is the ABFC08R02B designed for?
This commoning link is specifically designed for the Schneider Electric Modicon Momentum series of I/O modules.
2. What is the maximum operating temperature for the ABFC08R02B?
The unit operates reliably within an ambient temperature range of 0°C to 60°C.
3. Does the ABFC08R02B require any tools for installation?
No, the commoning link is designed for tool-less insertion and removal, simplifying the installation process.
4. Can the ABFC08R02B be used in high-humidity environments?
Yes, it tolerates up to 95% non-condensing humidity for both operation and storage.
5. What does the blue colour signify on the ABFC08R02B?
The blue exterior serves as a visual identifier for the commoning link, helping technicians distinguish it from other components during system assembly.
| Brand Name | |
| Model No. | ABFC08R02B |
| Product Type | Commoning Link |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
