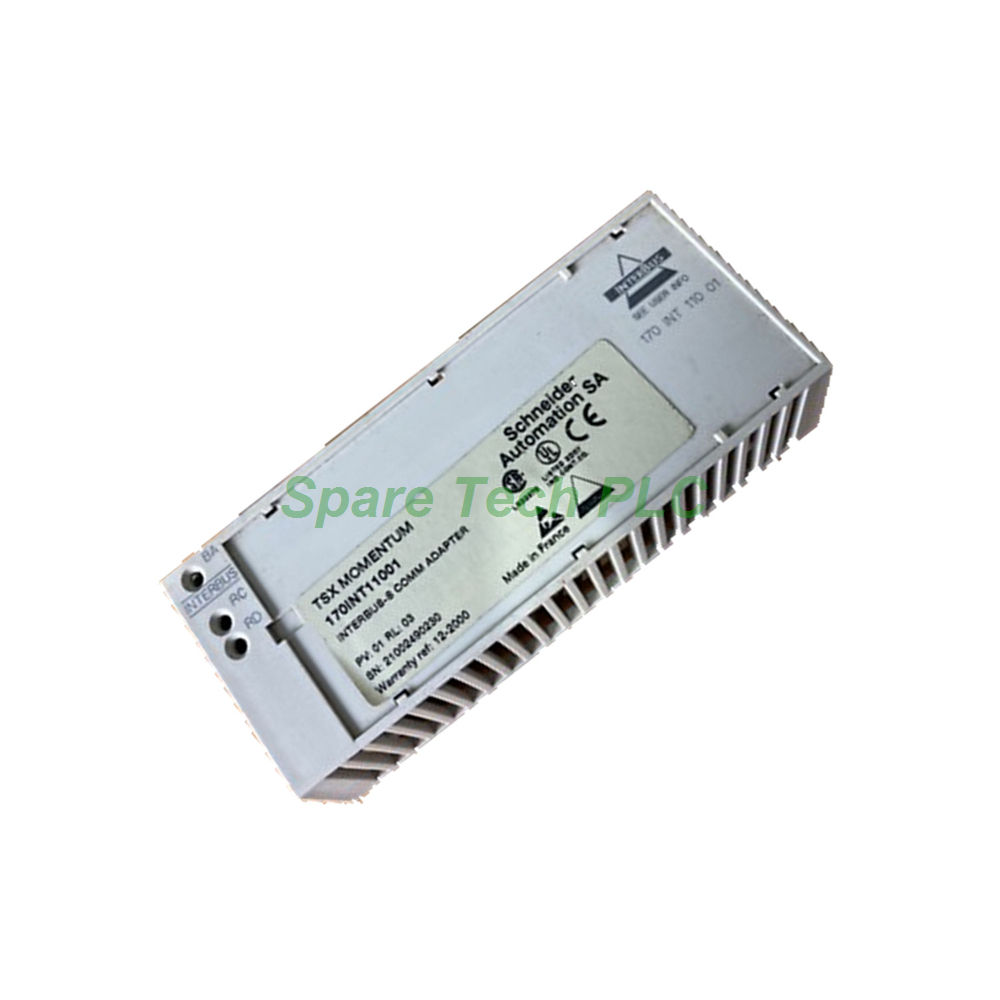

The Schneider Electric 170INT11001 functions as a dedicated communication adapter for the Modicon Momentum product line. Specifically, it enables seamless connectivity using the INTERBUS-S protocol. Furthermore, this adapter is exclusively compatible with Momentum I/O bases, ensuring a perfect match within the ecosystem. Meanwhile, its support for ring topology offers enhanced network reliability and configuration flexibility. Therefore, this module serves as a dependable bridge between field devices and control systems.
This adapter achieves a data transmission rate of 500 kbps. For physical connectivity, it employs standard twisted-pair copper cables. Additionally, the 170INT11001 supports a ring network topology, which allows data to circulate even if a single node fails. Consequently, this design improves overall system uptime. Besides its primary communication role, the module integrates seamlessly with Momentum I/O bases without requiring additional interface converters. Moreover, its transmission medium remains widely available and cost-effective for industrial installations.
The Schneider 170INT11001 operates within a defined temperature envelope. Its minimum operating temperature is 0°C, while the maximum reaches 55°C. For storage, it tolerates temperatures from -20°C up to 60°C. However, users should note that this adapter is not rated for freezing start-up conditions below zero. Furthermore, the device is certified for installation at altitudes up to 2000 meters. In addition, it requires an environment free from corrosive gases to maintain long-term reliability. Therefore, proper cabinet ventilation and air quality management are essential for optimal performance.
Weighing approximately 0.45 kg, the 170INT11001 remains one of the lighter modules in its class. Its compact form factor facilitates straightforward DIN rail mounting inside standard enclosures. First, secure the rail firmly to the backplate. Next, clip the adapter onto the rail until it locks into place. Meanwhile, ensure adequate clearance around the unit for cable routing and heat dissipation. Specifically, the twisted-pair cables should be terminated properly to avoid signal reflections. Finally, verify that the surrounding temperature stays within the 0°C to 55°C range during operation.
Each 170INT11001 unit is packaged individually to prevent electrostatic discharge and mechanical shock. The shipping carton contains the adapter module and a printed quick-start guide. However, it does not include cables, termination resistors, or mounting hardware. Meanwhile, we process orders promptly and ship via premium international carriers. Specifically, we utilize FedEx, UPS, or DHL for global deliveries. Consequently, you receive real-time tracking and fully insured transportation for your automation components.
1 x Schneider Electric 170INT11001 INTERBUS-S Communication Adapter
1 x Quick Installation Guide (printed)
Q1: Is the 170INT11001 compatible with other Modicon series besides Momentum?
No. The 170INT11001 is specifically designed for Modicon Momentum I/O bases only. For other series, please consult alternative communication adapters.
Q2: Can I use the 170INT11001 in a star network topology?
No. This adapter exclusively supports ring topology for INTERBUS-S networks. Star configurations are not supported by the 170INT11001 hardware design.
Q3: What happens if one node fails in the ring with the 170INT11001?
The 170INT11001 works with INTERBUS-S protocol, which allows the ring to continue operating by bypassing the failed node. Thus, system reliability improves significantly.
Q4: Does the 170INT11001 require external cooling or ventilation?
Generally, passive cooling suffices within the 0°C to 55°C range. However, ensure adequate cabinet airflow to prevent localized overheating around the 170INT11001.
Q5: What cable type works best with the 170INT11001?
Use shielded twisted-pair cable with characteristic impedance matching INTERBUS-S specifications. For the 170INT11001, maintain proper grounding to minimize data errors.
| Brand Name | |
| Model No. | 170int11001 |
| Product Type | Communication Adapter |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
