Schneider 140CFG01600 Terminal Block | Quantum

Product Introduction

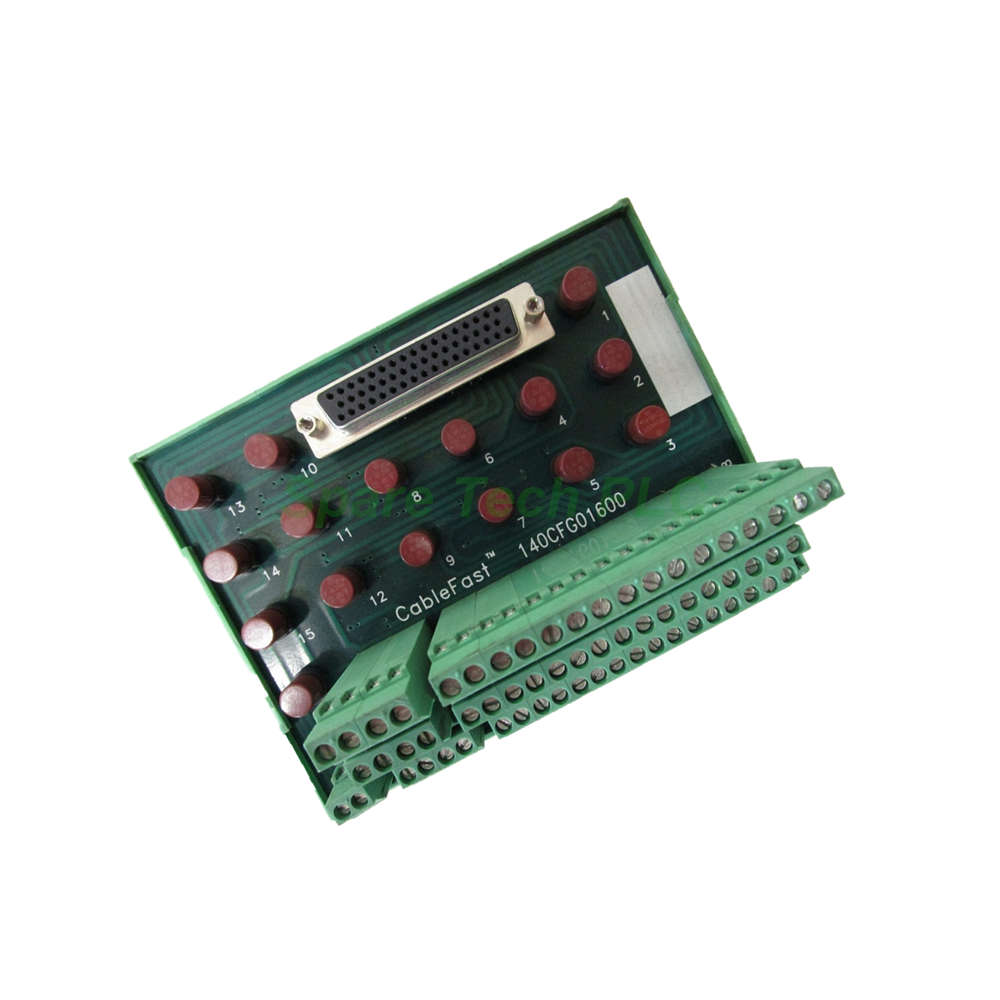

The Schneider Electric 140CFG01600 terminal block serves as a high-power output connection accessory for the Modicon Quantum automation platform. This CableFast unit provides a practical solution for managing field wiring in complex control systems. Specifically, it offers individual 16-point fused connections rated at 4 amps per point. Consequently, this design protects each output channel independently against overcurrent events. The module connects seamlessly to compatible Quantum I/O modules using a standard SUB-D 50 connector. Furthermore, its captive screw terminals ensure secure and reliable wire retention. You can mount this unit easily on a standard DIN rail within your control cabinet. This accessory significantly simplifies installation and maintenance tasks. Ultimately, it enhances the overall safety and reliability of your digital output circuits.

Technical Specifications

The 140CFG01600 terminal block delivers clear technical advantages for system integrators. This accessory falls under the connection accessories category for the Quantum platform. Its primary application involves providing individual fused connections for digital output modules. Each of the 16 contacts carries a rated current of 4 amps. Moreover, the unit features a 50-pin female SUB-D connector for the interface to the I/O module. For field wiring, it uses captive screw terminals that provide a robust and vibration-resistant connection. The mounting support accommodates a standard DIN rail. This makes installation quick and tool-efficient. The product compatibility extends to several key Quantum I/O modules. Specifically, it works with the 140DAI54000, 140DAI34000, 140DAO84010, 140DAO84000, 140DAI44000, 140DAO84210, 140DDO84300, and 140DAO84220. Additionally, each fused point offers effective short-circuit protection for your output devices.

Mechanical and Environmental Parameters

The 140CFG01600 features a compact and durable design suitable for industrial environments. Its dimensions allow for space-efficient mounting inside standard control cabinets. The robust housing protects the internal circuitry from dust and mechanical stress. Furthermore, the terminal block uses high-quality materials that resist corrosion and wear. The captive screw terminals prevent accidental loosening due to vibration. This ensures long-term connection integrity. The unit operates reliably within the standard temperature range of the Quantum platform. It also maintains its performance under typical industrial humidity conditions. The overall construction supports repeated installation and removal cycles. This makes it a dependable choice for both new projects and field upgrades.

Installation Guidance

Installing the 140CFG01600 terminal block requires you to follow a straightforward process. First, mount the unit securely onto a standard DIN rail inside your cabinet. Ensure the rail clip locks firmly into place. Next, connect the 50-pin SUB-D cable from the terminal block to your compatible Quantum I/O module. This cable carries all signal and power connections between the two units. After that, prepare your field wiring for the output devices. Strip the wires to the appropriate length. Then, insert each wire into the corresponding captive screw terminal. Tighten the screw to the specified torque value. Meanwhile, check that each fuse rating matches your application requirements. The 140CFG01600 handles 4 amps per point. Finally, perform a continuity check on all connections before applying power. This verification step helps prevent wiring errors.

Packaging and Logistics

Your purchase of the Schneider 140CFG01600 comes securely packaged for safe transit. The product ships in its original factory packaging. This ensures maximum protection against physical damage. The package dimensions measure 11.5 cm in height, 18 cm in width, and 27 cm in length. The total package weight equals 0.556 kg. This lightweight design helps minimize shipping costs. We dispatch all orders with care and attention to detail. Every shipment includes all necessary components for immediate installation.

Shipping Methods

We prioritize fast and reliable delivery for all our industrial automation products. Therefore, we use only the most trusted global couriers for shipping. We offer transportation via FedEx, UPS, and DHL. These carriers provide excellent tracking services and timely delivery. You can monitor your shipment status from dispatch to arrival. Our logistics team ensures professional handling throughout the entire shipping process.

Packaging List

• 1 x Schneider Electric 140CFG01600 CableFast Terminal Block

• 1 x Installation Instructions Sheet

• 1 x Fuse Set (16 fuses, 4A each, pre-installed)

• 1 x DIN Rail Mounting Clip (attached)

FAQ

Q1: Which Quantum I/O modules work with the 140CFG01600?
A: The Schneider Electric 140CFG01600 works with several modules, including the 140DAI54000, 140DAO84010, and 140DDO84300. For the full list, please check the technical specifications section above.

Q2: What is the current rating for each fused point on this terminal block?
A: Each of the 16 points on the 140CFG01600 provides a fused connection rated at 4 amps. This protects each individual output channel from overcurrent.

Q3: What type of connector does the 140CFG01600 use to interface with the I/O module?
A: This terminal block uses a 50-pin female SUB-D connector for its interface to the Quantum I/O module. This ensures a secure and reliable signal connection.

Q4: How do I mount the 140CFG01600 inside my control cabinet?
A: You can mount the 140CFG01600 easily onto a standard DIN rail. The unit includes a clip that locks securely onto the rail for stable installation.

Q5: Can I use the 140CFG01600 for analog output modules as well?
A: No, this terminal block is specifically designed for high-power digital output applications. It provides fused 4A connections, making it ideal for discrete output modules rather than analog signals.
