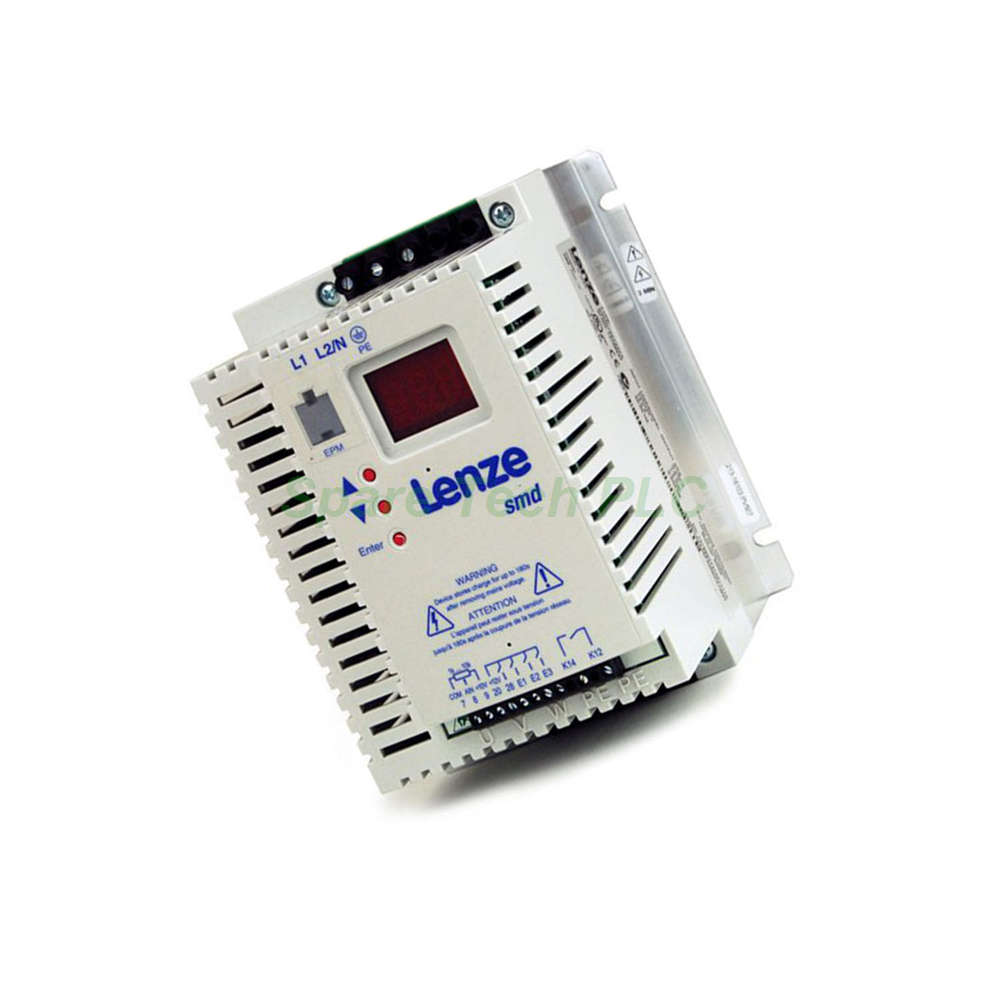

The ESMD152L4TXA frequency inverter delivers reliable motor control for light industrial applications. Lenze built this unit for three-phase power systems at 400 Volts AC. It provides a power rating of 1.5 kilowatts and handles a rated current of 3.8 Amperes. Under peak loads, the drive can reach a maximum current of 4.8 Amperes.
Many machines benefit from this inverter’s flexibility. For instance, pumps, fans, and general purpose conveyors all work well with the ESMD152L4TXA. Its output frequency ranges from 0 to 240 Hertz normally, but you can push it up to 500 Hertz when needed. Furthermore, the basic performance level keeps operations simple and cost-effective.
This drive operates on a main power supply voltage of 400V AC, three-phase. The enclosure protection is rated IP20, which means it is open-frame and designed for installation inside a control panel.
Key electrical parameters include:
Power rating: 1.5 kilowatts
Rated current: 3.8 Amperes
Maximum current: 4.8 Amperes
Supply voltage: 400 Volts AC, three-phase
Output frequency range: 0 to 240 Hertz (up to 500 Hertz maximum)
Overload capacity: 150 percent for 1 minute
A separate filter unit is required when using the ESMD152L4TXA. This filter ensures optimal electromagnetic compatibility. Therefore, do not forget to order the filter separately if your application demands low electrical noise.
The ESMD152L4TXA comes in a compact housing. Its IP20 enclosure offers basic protection against solid objects larger than 12 millimeters. However, it does not resist water, so you must keep it inside a dry control cabinet.
Weight is approximately 1.8 kilograms or 4.0 pounds. Exact dimensions are not listed, but the unit occupies a small footprint suitable for tight panels. Operating temperature typically ranges from 0 to 55 degrees Celsius. Storage temperature goes from -20 to 70 degrees Celsius.
First, mount the ESMD152L4TXA vertically inside a clean, dry control panel. Ensure enough airflow around the unit to prevent overheating. Next, connect the three-phase 400V input power to the correct terminals. Use wire gauges suitable for 4.8 Amperes maximum.
Then, wire the motor leads to the output terminals. Connect control signals as needed for your application. After that, install the required external filter between the mains supply and the drive. Finally, apply power and configure basic parameters using the keypad. Remember to set the motor data correctly before starting.
1 x ESMD152L4TXA frequency inverter
Quick start guide
Mounting screws
Terminal labels
Note: No certificates or warranty documents are included in the package. The external filter is not included and must be purchased separately.
We ship worldwide using FedEx, UPS, or DHL. The package will be tracked and insured.
Can the ESMD152L4TXA run a single-phase input?
No. This drive requires a three-phase 400V AC input. Single-phase power will not work correctly.
Why does the ESMD152L4TXA need a separate filter?
The filter reduces electrical noise and helps meet EMC standards. Without it, the drive may interfere with nearby sensitive equipment.
What happens if I run the drive at 500 Hertz continuously?
The ESMD152L4TXA can reach up to 500 Hertz, but its standard range is 0 to 240 Hertz. Running at very high frequencies for long periods may reduce motor life. Check your motor’s specifications first.
Can this drive handle a temporary overload?
Yes. It supports 150 percent overload for one minute. For example, if the motor draws 3.8 Amperes normally, the drive can provide up to 5.7 Amperes for 60 seconds.
Is the ESMD152L4TXA suitable for outdoor use?
No. Its IP20 rating only protects against solid objects indoors. You must install it inside a weatherproof control panel if used outdoors. Otherwise, moisture will damage the unit.
