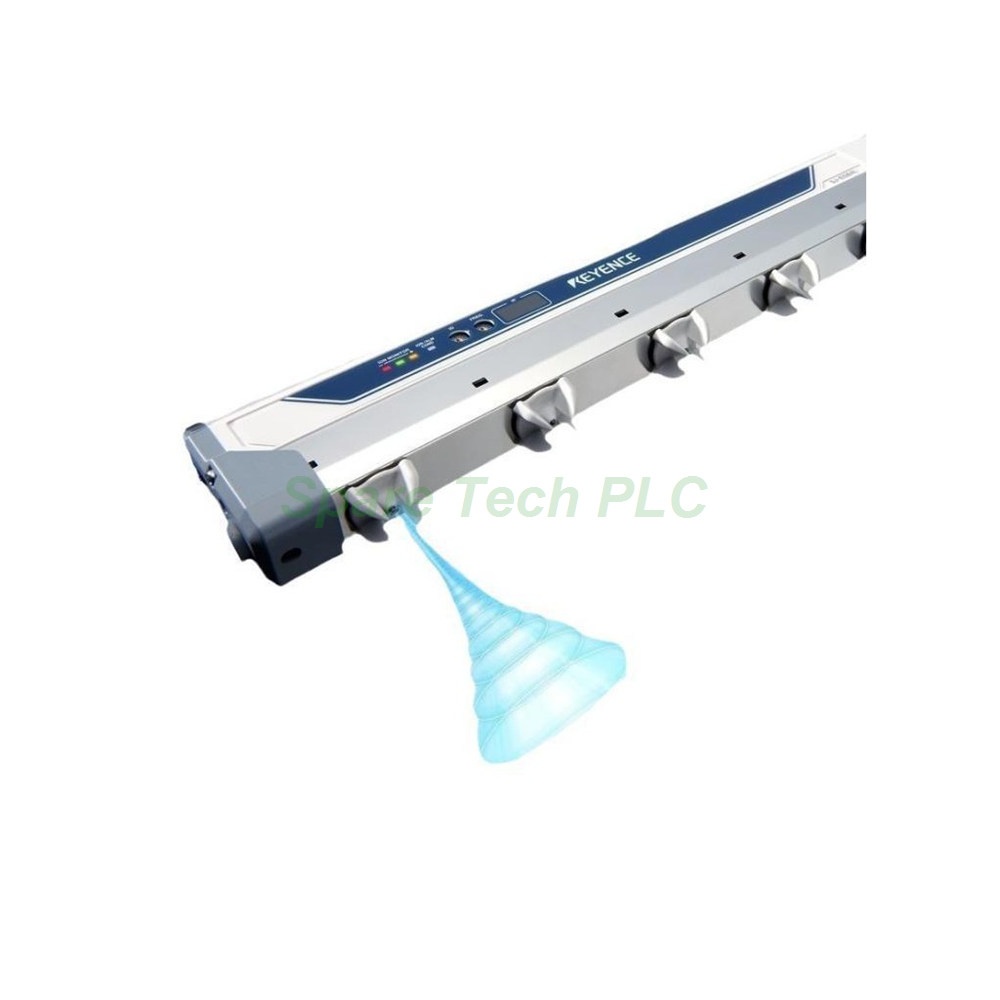

The Keyence SJ-E060H extends the SJ-E high-end lineup to mid-size static elimination tasks. Specifically, it balances compact footprint with a 660 mm effective coverage span. Seventeen tungsten electrodes distribute ions evenly along the 560 mm bar. Furthermore, the Hi-Power I.C.C. method keeps ion balance within ±30 V, protecting delicate parts from charge damage.

Technical Specifications

Ion Generation and Control
The unit relies on the corona discharge method with a shockless resistive coupling structure. Additionally, it applies a pulse AC voltage of ±8000 V to generate positive and negative ions. Ion balance control uses the Hi-Power I.C.C. method. Meanwhile, measured ion balance stays within ±30 V at 300 mm distance and 0.2 MPa air pressure.

Electrical and Connectivity
Supply voltage spans 24 to 36 VDC ±10%. Current consumption reaches 700 mA at 24 V or 500 mA at 36 V. The output stage supplies NPN open collector signals for ion level warning, condition warning, and alarm. Besides, a static elimination stop input accepts NPN open collector or contact point wiring. Remote control communication is available for parameter checks and status reading.

Air and Electrode System
An Rc 1/8 air connection port accepts 0.1 to 0.5 MPa supply pressure, with 0.2 MPa recommended. The 17 electrode probes use tungsten material for durability. Furthermore, the effective static elimination range measures 660 mm when the bar is installed 50 mm from the target.

Mechanical and Environmental Parameters

The Keyence SJ-E060H operates from 0 to +40°C and tolerates 35 to 85% RH without condensation. Its main body combines ABS, PBT, PP, LCP, PPS, SPS, and SUS materials. At 0.87 kg, the bar mounts easily on existing frames and conveyor structures. Finally, the overvoltage category is I and pollution degree is 2.

Installation Guide

Installing the SJ-E060H follows a simple sequence. First, position the bar between 50 and 2000 mm from the target surface. Next, connect clean, dry air to the Rc 1/8 port and set pressure to 0.2 MPa. Then, wire the 24–36 VDC supply and NPN open collector control lines. Subsequently, check ion balance with a charged plate monitor. Finally, enable remote control communication when centralized monitoring is required.

Packaging List

• 1 × Keyence SJ-E060H Bar-Type Ionizer Unit

• 1 × Mounting Bracket Set

• 1 × Air Connection Fitting (Rc 1/8)

• 1 × Instruction Manual

FAQ

Q1: What is the effective static elimination length of the SJ-E060H?
A: The effective length is 660 mm at a 50 mm installation distance. This covers mid-size webs, conveyor gaps, and small assembly lines.

Q2: How many electrodes does this bar ionizer contain?
A: The unit carries 17 tungsten electrode probes along its 560 mm body. This spacing supports even ion distribution across the coverage area.

Q3: Can the SJ-E060H run without compressed air?
A: No. The design uses airflow to carry ions to the target. Supply clean, dry air at 0.1 to 0.5 MPa, with 0.2 MPa recommended for rated balance.

Q4: What control signals does the SJ-E060H offer?
A: It provides NPN open collector outputs for ion level warning, condition warning, and alarm. Each output supports up to 100 mA at 40 VDC or less.

Q5: What are the weight and power figures for the SJ-E060H?
A: The unit weighs 0.87 kg. Current draw is 700 mA at 24 VDC or 500 mA at 36 VDC, within a ±10% supply tolerance.
