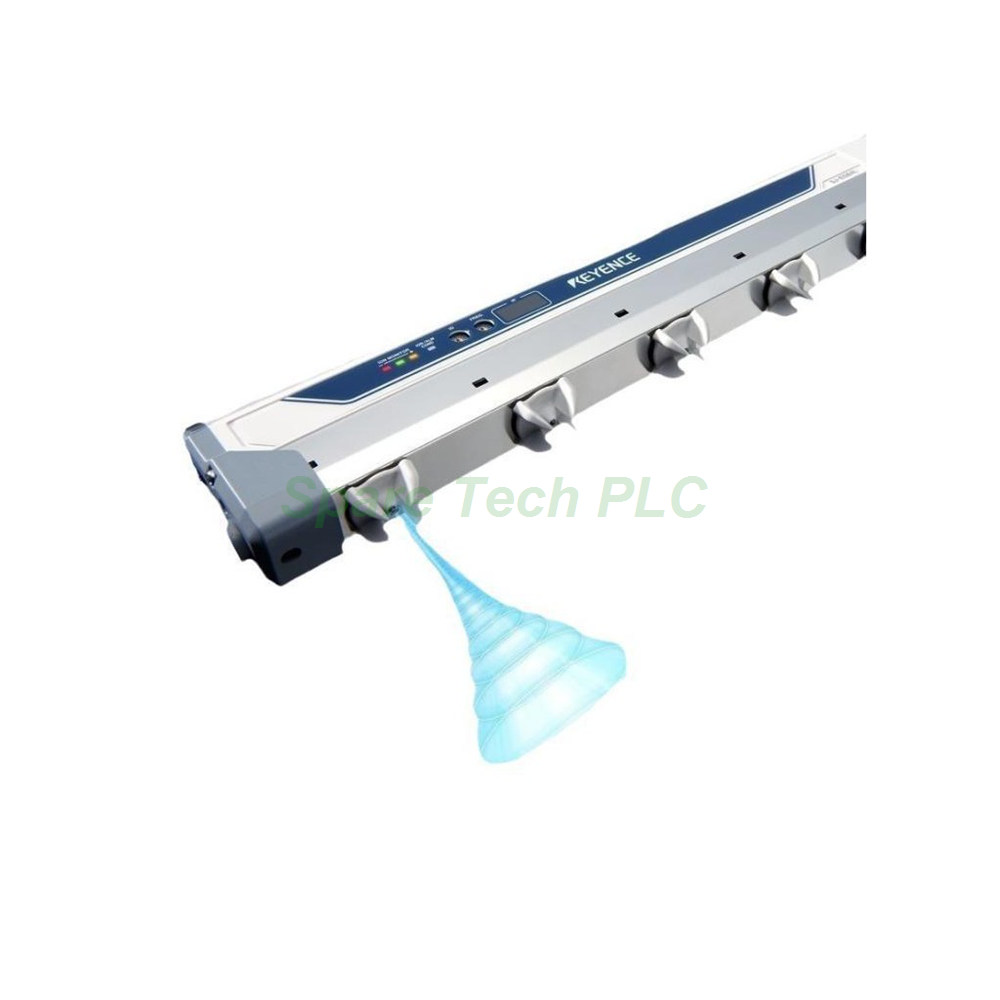

The Keyence SJ-E060A extends the SJ-E series of bar-type static eliminators. This standard model serves mid-size manufacturing equipment and moderate work areas. Its 560 mm total length and 9 electrode probes fit typical assembly and packaging lines. Specifically, the device uses a pulse AC corona discharge method with ±8000 V applied voltage. This approach produces a steady ion flow for reliable static decay.
The SJ-E060A uses a shockless resistive coupling structure. This design keeps operators safe during normal operation. Meanwhile, the Hi-Power I.C.C. method continuously monitors and adjusts ion output. As a result, ion balance stays within ±30 V under standard measurement conditions. Furthermore, the effective static elimination range reaches 660 mm at a 50 mm installation distance. The unit supports installation distances from 50 mm to 2000 mm, so it adapts to many machine layouts.
Power requirements for the Keyence SJ-E060A are flexible. The unit accepts 24 to 36 VDC ±10% input. Current consumption is 700 mA at 24 V or 500 mA at 36 V. For integration, the device provides NPN open collector outputs for ion level warning, condition warning, and alarm signals. Additionally, a static elimination stop input allows external control via NPN open collector or dry contact. The unit also supports remote control communication for parameter adjustments. An Rc 1/8 air connection port enables compressed air supply at 0.1 to 0.5 MPa, with 0.2 MPa recommended.
The electrode probes use tungsten material for durability and stable ion emission. The main body consists of ABS, PBT, PP, LCP, PPS, SPS, and SUS. This combination balances structural rigidity with chemical resistance. Operating temperature ranges from 0 to +40 °C, while relative humidity must stay between 35 and 85 % RH without condensation. The unit weighs 0.85 kg, which eases mounting on brackets or frames. No specific IP protection rating is assigned to this model.
First, mount the SJ-E060A at the planned location using appropriate brackets. Maintain an installation distance between 50 mm and 2000 mm from the target surface. Next, connect the 24–36 VDC power supply according to the wiring diagram. Then, wire the control input and output signals to the host controller. For air-assisted operation, attach the Rc 1/8 fitting and set the supply pressure to 0.2 MPa. Finally, verify the ion balance using a charged plate monitor before starting production.
Keyence SJ-E060A Bar-Type Ionizer × 1
Installation Bracket Set × 1
Operation Manual × 1
Q1: What is the effective length of the SJ-E060A?
The effective static elimination range is 660 mm when measured at a 50 mm installation distance.
Q2: Does this ionizer require compressed air to operate?
No, the SJ-E060A can eliminate static without air supply. However, air assistance at 0.1–0.5 MPa improves ion delivery to distant targets.
Q3: What electrode material does the SJ-E060A use?
This model uses tungsten electrode probes. Tungsten offers excellent durability and stable ion emission over extended use.
Q4: Can I control the SJ-E060A remotely?
Yes, the unit supports remote control communication. It also provides NPN open collector outputs for alarms and a stop input for external control.
Q5: What is the recommended air pressure for the SJ-E060A?
Keyence recommends 0.2 MPa air pressure. The acceptable range is 0.1 MPa to 0.5 MPa.
| Brand Name | |
| Model No. | SJ-E060A |
| Product Type | Bar-Type Static Eliminator |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
