Product Introduction

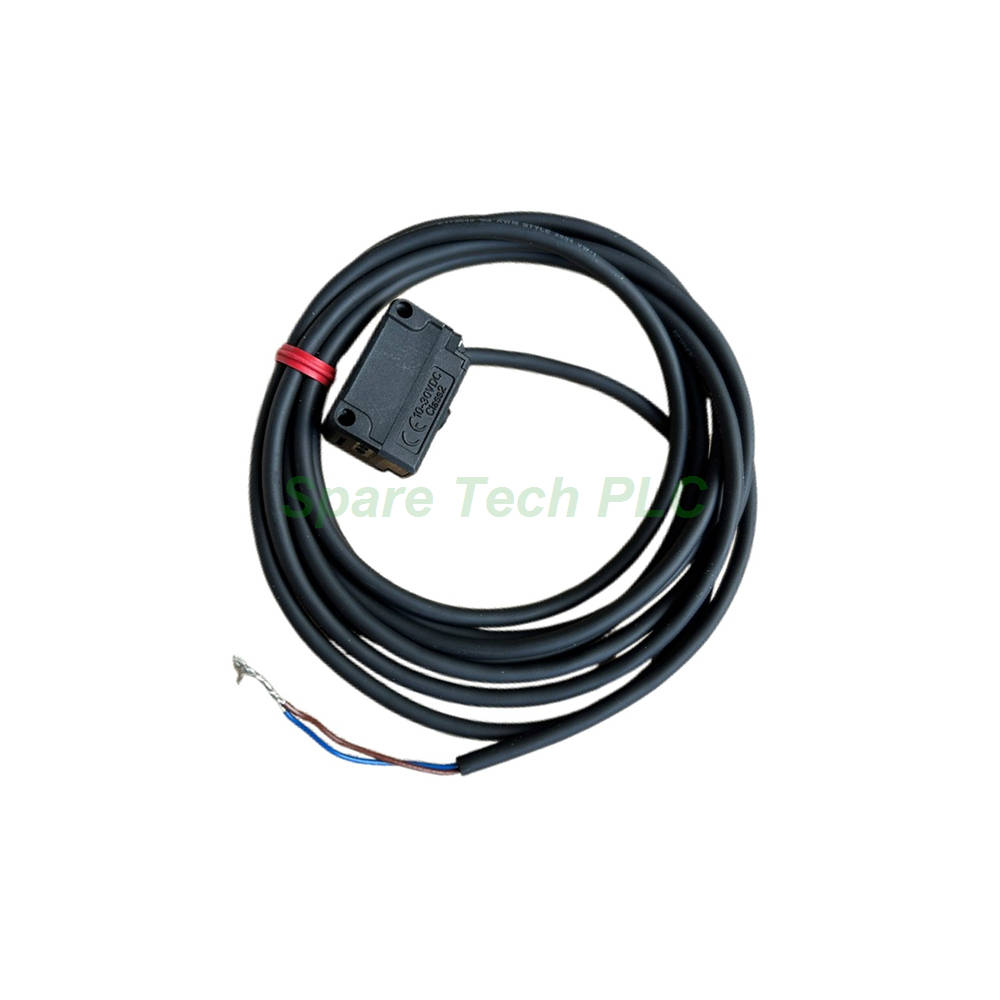

This PZ-G101P sensor from Keyence provides reliable object detection for automated machinery. Its narrow view reflective design minimizes background interference. Additionally, the unit features a robust glass-fiber reinforced PBT housing for durability. Furthermore, the rectangular shape simplifies mounting on flat surfaces and conveyor frames.
Technical Specifications
The PZ-G101P operates on a supply voltage of 10 to 30 VDC. It consumes 34 mA or less of current. Specifically, the light source is a red LED with a spot diameter of approximately 5 mm at 100 mm. Moreover, response time is a quick 500 µs maximum. Users can select between LIGHT-ON and DARK-ON modes via a switch. The output is a PNP open collector type, rated for 30 V and 100 mA maximum. Besides, the residual voltage stays at 1 V or less.
Mechanical and Environmental Parameters
The sensor features a rectangular body with a dedicated mounting hole. The mounting hole part has a maximum tightening torque of 0.5 N·m. Meanwhile, the operating temperature range is -20 to +55 °C. The protection ratings include IP67 and IP69K, ensuring resistance to dust and high-pressure washdowns. Additionally, the PZ-G101P withstands shock of 1,000 m/s² and vibration from 10 to 55 Hz. Therefore, it performs well in harsh factory conditions.
Installation Guide
First, mount the sensor using the rectangular mounting hole. Ensure the fixing screw is tightened to the specified torque. Next, route the 2 m cable away from high-voltage lines. After that, adjust the 1-turn trimmer to set the sensitivity for your specific application. Finally, select the desired output mode using the operation switch. Therefore, verify the stable operation indicator is green for reliable performance.
Packaging List
PZ-G101P Sensor Unit
Mounting Screw Set
Instruction Manual
FAQ
Q: Is a connector cable required for this sensor?
A: No, the PZ-G101P includes a fixed 2 m cable. Therefore, you do not need to order a separate M12 cable.
Q: What is the maximum detection distance for this model?
A: The PZ-G101P offers a maximum detecting distance of 200 mm for standard targets. Additionally, it performs well with small objects at close range.
Q: Does this sensor support NPN wiring?
A: No, this model features a PNP open collector output only. Moreover, the NPN version PZ-G101N covers NPN applications.
Q: What is the price and shipping method for this item?
A: The price is RMB 1,180.00. We ship via Fedex, UPS, and DHL for fast delivery. Furthermore, orders are processed within one business day.
Q: Can this sensor be used in wet environments?
A: Yes, it carries an IP69K rating, making it suitable for high-pressure cleaning and wet conditions. Besides, the PAR lens cover resists water and dust ingress.
