Keyence LR-ZB100CP Laser Sensor PNP M8

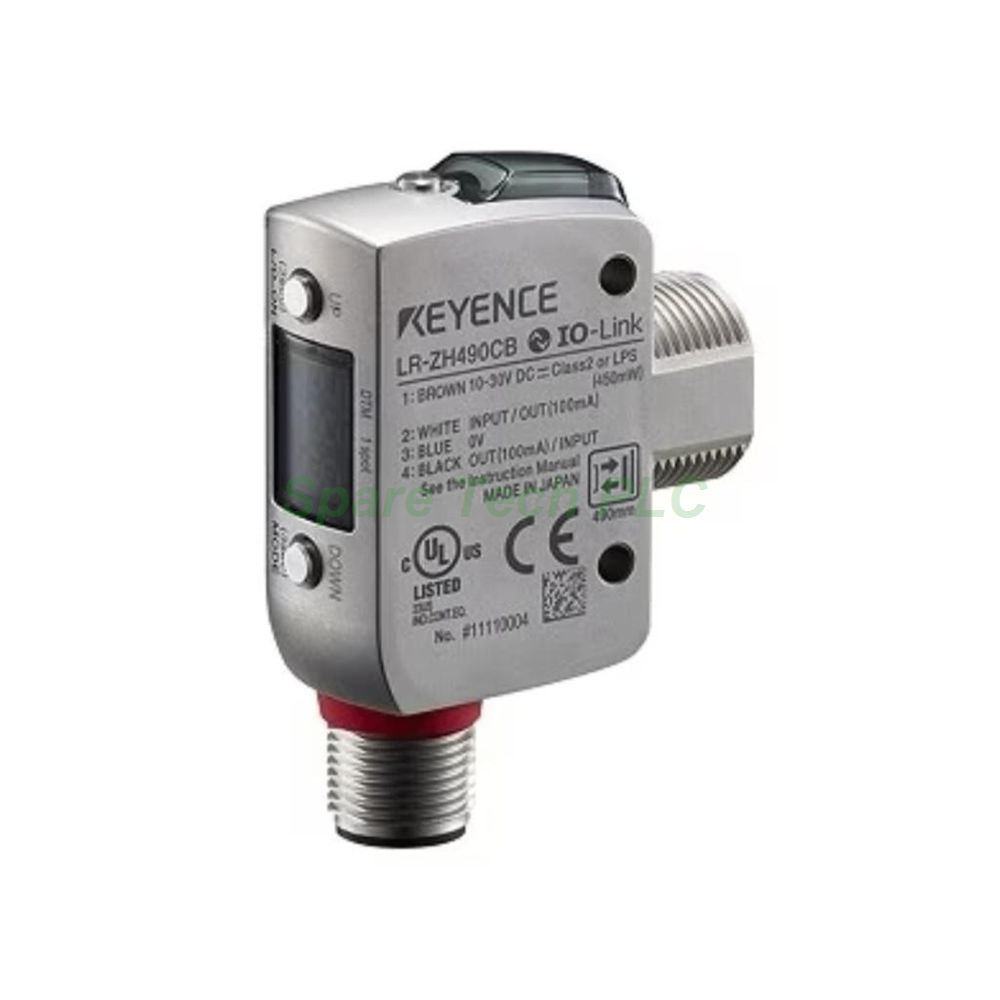

Keyence LR-ZB100CP CMOS Laser Sensor

Product Introduction

The Keyence LR-ZB100CP belongs to the LR-Z series of self-contained CMOS laser photoelectric sensors. This rectangular unit uses distance and contrast detection for reliable performance. It comes with a PNP output and an M8 4-pin connector. The LR-ZB100CP suits many industrial automation tasks. These include small part presence checks, precise positioning, and thin height difference detection. Its Class 1 laser makes it safe for open-area use.

Technical Specifications

The detecting distance ranges from 35 to 100 mm. Standard detectable deviation varies by range. For 35 to 50 mm, it is 1.5 mm. From 50 to 100 mm, it is 3 mm. The display resolution is 2, equating to 0.2 mm. The spot diameter is approximately 2 x 1 mm at 100 mm. A red laser with a 660 nm wavelength serves as the light source. This laser is Class 1 per IEC60825-1 and FDA CDRH Part1040.10. Response time is selectable among 1.5 ms, 10 ms, and 50 ms. A timer function offers OFF, ON-delay, OFF-delay, and one-shot modes.

Electrical and Communication Parameters

The supply voltage is 10 to 30 VDC with 10% ripple (P-P). Power consumption is 450 mW or less. At 24 V, current draw is 18 mA or less. At 12 V, it is 34 mA or less. The output type is PNP open collector. Applied voltage is 30 VDC or less. Control current is 100 mA or less. Residual voltage is 1.2 V or less at 10 mA or less. Output operation is selectable between Light-ON and Dark-ON. Built-in ports are absent. However, IO-Link v1.1 and COM2 (38.4 kbps) are available on CB/C3P connector-type models. Communication expansion is not available.

Mechanical and Environmental Data

The Keyence LR-ZB100CP has an M8 4-pin connector. Its protection rating is IP68 (IEC60529) and IP69K (DIN40050-9). It also meets NEMA 4X, 6P, and 13 standards. Operating temperature is -10 to +50 °C with no freezing. Storage temperature is -25 to +75 °C with no freezing. Relative humidity is 35 to 85 % RH with no condensation. The weight is approximately 55 g for the connector type. Dimensions (H×W×D) are not available.

Installation Guide

First, mount the sensor using its rectangular body. Ensure the mounting surface is flat and stable. Next, connect the M8 4-pin connector to the power and signal lines. Verify the supply voltage is within 10 to 30 VDC. Then, adjust the spot position to target the detection area. The 2 x 1 mm spot helps with precise alignment at 100 mm. After that, set the response time to match your application speed. You can choose 1.5 ms, 10 ms, or 50 ms. Besides, select Light-ON or Dark-ON operation as needed. Finally, test the output signal with a suitable load. Keep the control current below 100 mA. For IO-Link models, use the CB/C3P connector type. This sensor works well in washdown areas due to its IP68/IP69K rating.

Packaging List

• 1x Keyence LR-ZB100CP Sensor

• 1x M8 4-pin Connector (if applicable)

• 1x Mounting Bracket

• 1x Instruction Sheet

FAQ

Q1: What is the detecting distance of the LR-ZB100CP?
A: The LR-ZB100CP detects from 35 to 100 mm. The standard detectable deviation changes with distance.

Q2: Does this sensor support IO-Link?
A: Only CB/C3P connector-type models support IO-Link v1.1 and COM2. The standard LR-ZB100CP does not have built-in ports.

Q3: What is the response time of this Keyence sensor?
A: You can select 1.5 ms, 10 ms, or 50 ms. This helps match different control speeds.

Q4: How is the LR-ZB100CP shipped?
A: We ship via Fedex, UPS, DHL. Tracking is provided for every order.

Q5: What is the price and weight of the LR-ZB100CP?
A: The price is RMB 2,480. The gross weight is 0.15 kg.
