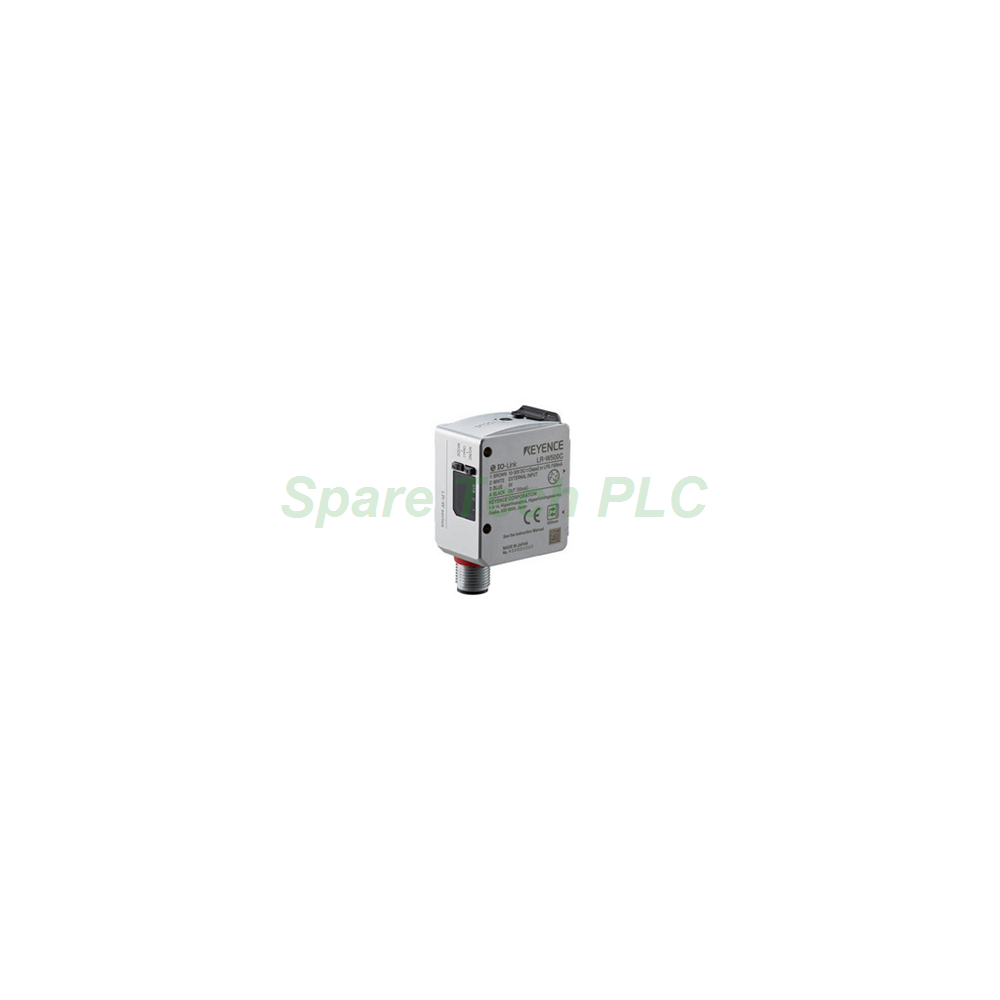

Keyence LR-W500C White LED Color Sensor

Keyence LR-W500C Full-Spectrum Color Sensor for Industrial Automation

Product Introduction

The LR-W500C belongs to the Keyence LR-W series of self-contained full-spectrum color sensors. This model uses a white LED light source to detect color and photoelectric changes across a wide range. Furthermore, it comes with an M12 connector 4-pin type design, which simplifies wiring in tight spaces.

Industrial teams often need fast, repeatable color detection. Specifically, the LR-W500C delivers a selectable response time of 200 µs, 1 ms, 10 ms, 100 ms, or 500 ms. As a result, it fits both high-speed sorting lines and slower inspection tasks. Besides, the built-in timer supports OFF, ON-delay, OFF-delay, and one-shot modes.

Technical Specifications

The LR-W500C works with a supply voltage of 10 to 30 VDC, including 10% ripple (P-P). It also requires a Class 2 or LPS power source. Current consumption stays at 65 mA or less at 24 VDC, and 120 mA or less at 12 VDC, with no load.

Output options include NPN open collector or PNP open collector, which users can select. Meanwhile, the output handles 30 VDC or less, 50 mA or less, and residual voltage of 2 V or less. N.O. and N.C. modes are also selectable. For external input, tuning and transmission OFF are available.

Communication support covers IO-Link v1.1 and COM2 at 38.4 kbps on connector-type models. However, this unit has no built-in ports beyond that. In addition, communication expansion is not available.

Optical and Detection Performance

The detecting distance ranges from 30 to 500 mm, giving good flexibility. The adjustable spot diameter measures approximately ø3.5 mm at 100 mm, ø9 mm at 250 mm, and ø18 mm at 500 mm. Therefore, users can match the spot size to small parts or larger targets.

Mechanical and Environmental Parameters

The LR-W500C weighs approximately 110 g. Its protection rating reaches IP65 and IP67 under IEC60529. This means it resists dust and water jets in demanding factory settings.

Operating temperature spans -20 to +50 °C with no freezing. Relative humidity should stay between 35 and 85 % RH with no condensation. These ratings suit most indoor industrial environments.

Installation Guide

First, mount the sensor using its M12 connector 4-pin interface. Next, connect the supply voltage within the 10 to 30 VDC range. Then, select NPN or PNP output to match the controller. After that, set the response time and timer mode for the application.

For color detection, adjust the spot diameter by changing the distance. Besides, keep the lens clean to avoid false readings. Finally, verify the output with a test target before full production.

Packaging List

• 1x Keyence LR-W500C color sensor

• 1x M12 connector 4-pin mating cable

• 1x Mounting bracket and screws

• 1x Quick setup guide
