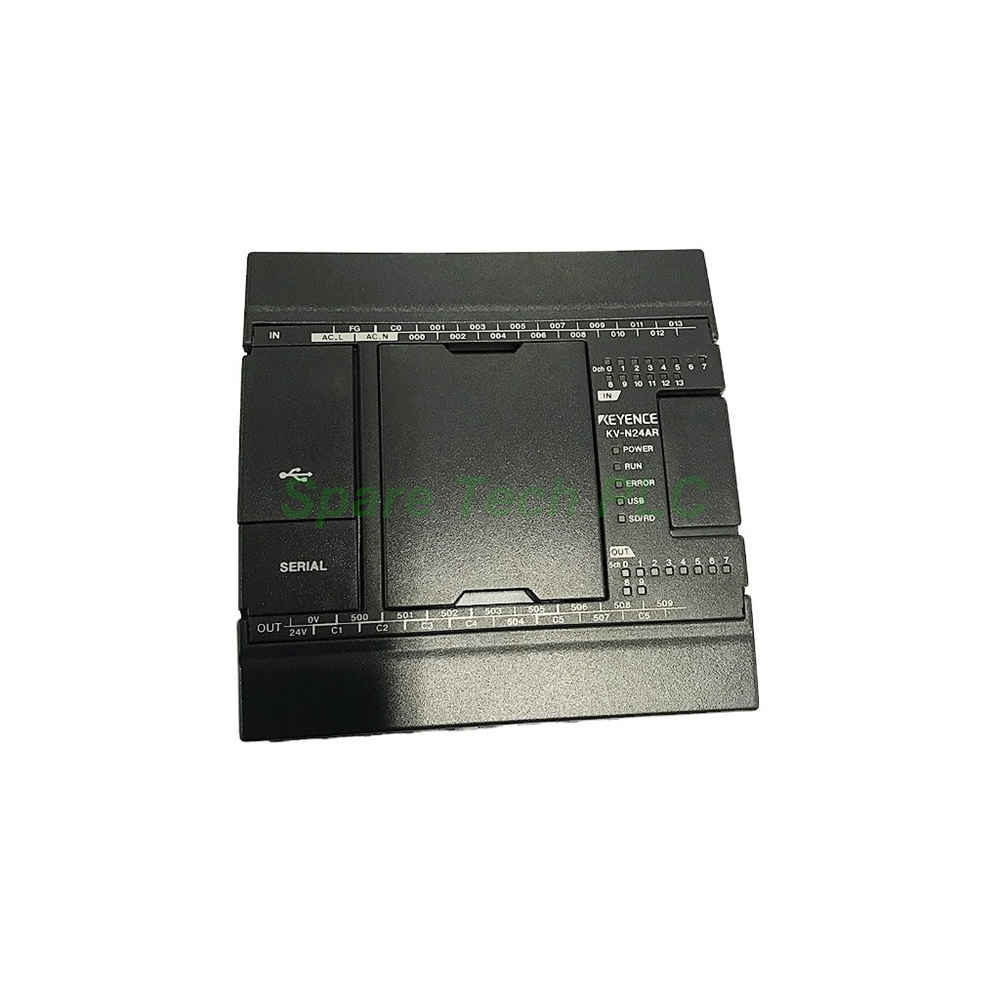

Keyence KV-N24DTP Programmable Logic Controller
The KV-N24DTP belongs to the Keyence KV Nano series. This terminal block type PLC serves as a versatile base unit for small to medium automation tasks. Engineers choose this model when they need a reliable controller with built-in positioning and communication features. Its compact design saves panel space while delivering fast instruction execution.
Technical Specifications
The processing power of this unit meets demanding industrial needs. Basic instruction execution takes only 50 ns, while application instructions require a minimum of 170 ns. Furthermore, the program capacity reaches 8k steps, which provides ample room for complex logic sequences.
Built-in I/O and High-Speed Features
The base unit includes 14 input points and 10 output points. Outputs use MOSFET transistor technology with a source (PNP) configuration. Each point handles up to 30 VDC at 0.5 A. For motion control tasks, the KV-N24DTP provides 2 axes of positioning pulse output. The maximum output frequency reaches 100 kHz, enabling precise control of stepper or servo drives.
Communication and Expansion
A built-in RS-232C port (modular connector) supports KV STUDIO programming and no-protocol serial communication. Additionally, the system accepts up to 8 expansion units through the backplane. This scalability allows the total I/O count to reach 256 points, excluding the base unit. Therefore, the controller grows with your application requirements.
Mechanical and Environmental Parameters
The unit operates on a 24 VDC supply with a tolerance of +10%/-15%. It functions reliably in temperatures from 0 to +55 °C without freezing. Storage temperature ranges from -25 to +75 °C. The device withstands vibrations common in industrial settings and complies with IEC noise immunity standards.
Installation Guide
Mount the KV-N24DTP on a standard DIN rail or directly onto a panel surface using mounting holes. First, ensure the power supply is disconnected before wiring. Next, connect the 24 VDC input to the designated terminals while observing correct polarity. For output wiring, use the source configuration to drive loads. Always separate high-voltage power lines from signal lines to minimize electrical noise. Finally, verify all connections before applying power.
Packaging List
1 x Keyence KV-N24DTP PLC Base Unit
1 x Terminal Block Cover (attached)
1 x Instruction Manual (Quick Reference)
FAQ
Q1: What is the output type of the KV-N24DTP?
A: The outputs are MOSFET transistor type with source (PNP) configuration.
Q2: Can this PLC control servo motors?
A: Yes. It provides 2 axes of pulse output at up to 100 kHz for positioning tasks.
Q3: How many expansion units can connect to this base unit?
A: The system supports up to 8 backplane expansion units for additional I/O.
Q4: What is the supply voltage requirement?
A: The unit requires a 24 VDC power supply.
Q5: How fast is the instruction execution?
A: Basic instructions execute in 50 ns minimum, while application instructions take 170 ns minimum.
