Keyence IV2-CP50 Control Panel | 5.7-Inch Touchscreen

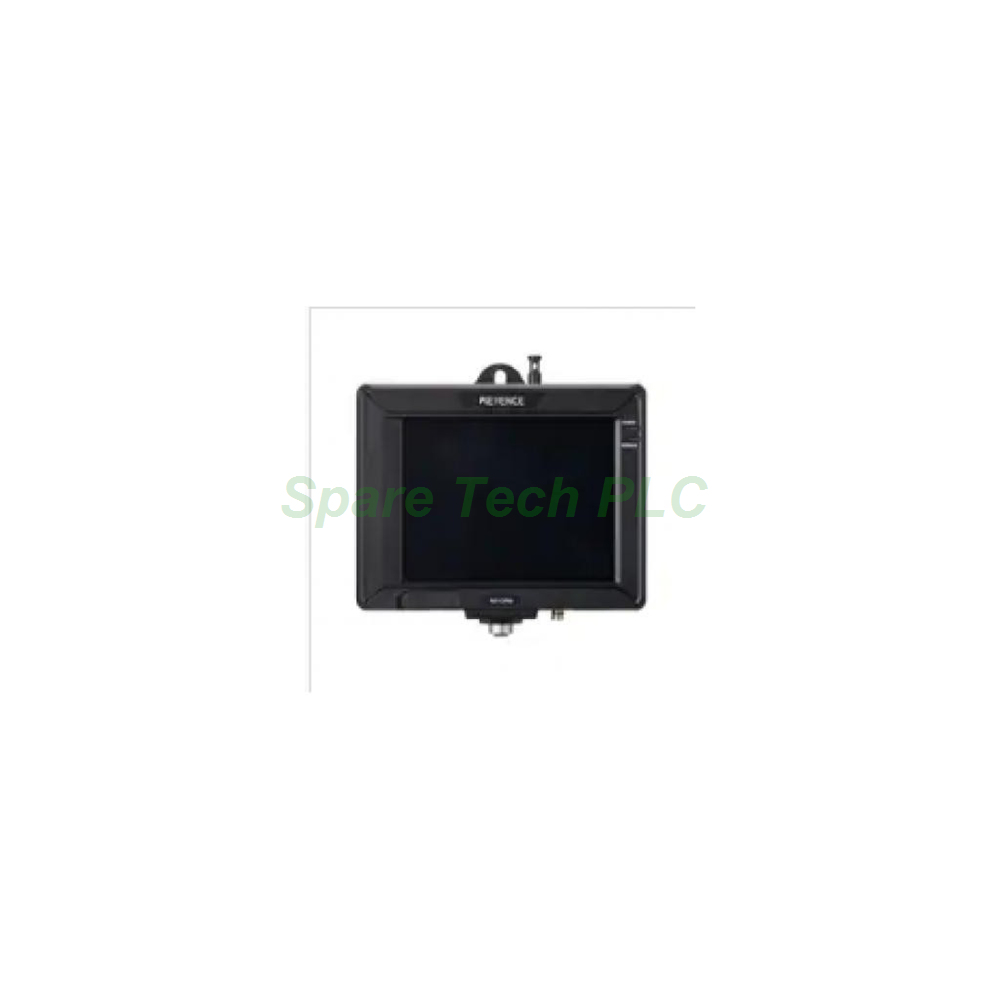

Keyence IV2-CP50 Touchscreen Control Panel for IV2 Series

The IV2-CP50 gives operators a dedicated interface for IV2 and IV Series vision sensors. This 5.7-inch control panel simplifies setup, monitoring, and adjustment tasks on the production floor. Furthermore, its compact design fits tight cabinet spaces and machine arms. As a result, technicians can configure inspections without a separate PC.

This Keyence control panel belongs to the IV2 Series family. It connects directly to compatible vision sensors through its built-in Ethernet port. Meanwhile, the analog resistive touchscreen responds to a light actuating force of 0.8 N or less. Therefore, users can operate it comfortably even with gloves.

Technical Specifications

The display uses a 5.7-inch TFT color LCD. It delivers a resolution of 640 x 480, which is standard VGA quality. Additionally, a white LED backlight provides clear visibility. This backlight lasts approximately 50000 hours at 25°C. Consequently, maintenance needs stay low over the product lifespan.

Communication relies on built-in ports. Specifically, the unit includes an M12 4-pin Ethernet connector for 100BASE-TX and 10BASE-T networks. It also provides a USB port for data transfer and setup. Protocols depend on the connected sensor, so the panel inherits sensor communication features. However, no communication expansion options exist for this model.

Electrical Parameters

The control panel runs on 24 VDC +/-10%, including ripple. Power consumption stays at 0.3 A or less. This low draw makes the IV2-CP50 suitable for compact power supplies. Besides, the modest current demand reduces heat inside control cabinets.

Mechanical and Environmental Parameters

The operating temperature range is 0 to +50°C with no freezing. Relative humidity must remain between 35 and 85% RH without condensation. Moreover, the unit carries an IP40 protection rating. This rating blocks solid objects above 1 mm but does not seal against water. Therefore, install it in dry indoor environments.

Drop resistance reaches 1.3 m onto concrete, tested twice in any direction. Vibration resistance covers 10 to 55 Hz with 0.7 mm double amplitude. The unit withstands two hours in each of the X, Y, and Z directions. These ratings suit demanding factory floors.

The main unit case uses PC material. The power connector combines brass with Ni plating. The Ethernet connector uses zinc with Ni plating and PA. In addition, the USB connector cover uses EPDM. The pen holder and LED lamp cover use PC. The adapter fixing hook uses POM. The mounting adapter uses PC, and the stylus uses POM. Weight is approximately 450 g for the main unit. With the wall mounting adapter and stylus attached, weight reaches approximately 485 g.

Installation Guide

First, select a mounting location with good visibility for operators. Next, secure the panel using the wall mounting adapter or a compatible bracket. Then, connect the M12 4-pin Ethernet cable to the vision sensor. After that, wire the 24 VDC power supply with correct polarity. Finally, power on the unit and confirm the display starts normally.

Keep the panel away from excessive moisture and direct water spray. Also, route Ethernet and power cables separately from high-voltage lines. This practice reduces electrical interference. Moreover, verify that the supply voltage stays within the +/-10% tolerance. For setup, use the stylus or a finger on the resistive touchscreen.

Packaging List

• 1x Keyence IV2-CP50 Control Panel

• 1x Wall Mounting Adapter

• 1x Stylus

• 1x Power Connector

• 1x Quick Start Guide

Shipping is available via Fedex, UPS, and DHL.

FAQ

Q1: What is the main purpose of the IV2-CP50?
A: It provides a 5.7-inch touchscreen interface for IV2 and IV Series vision sensors. Operators use it for setup, monitoring, and adjustment.

Q2: What display resolution does this panel offer?
A: The unit features a 5.7-inch TFT color LCD with 640 x 480 VGA resolution. A white LED backlight lasts about 50000 hours at 25°C.

Q3: Which ports are built into the IV2-CP50?
A: It includes an M12 4-pin Ethernet port for 100BASE-TX/10BASE-T and a USB port. Protocols depend on the connected sensor.

Q4: What is the power requirement for this Keyence control panel?
A: The panel needs 24 VDC +/-10% and draws 0.3 A or less.

Q5: Does the IV2-CP50 carry an IP rating?
A: Yes. It carries an IP40 protection rating, which suits dry indoor environments. It also resists drops from 1.3 m and vibration from 10 to 55 Hz.
