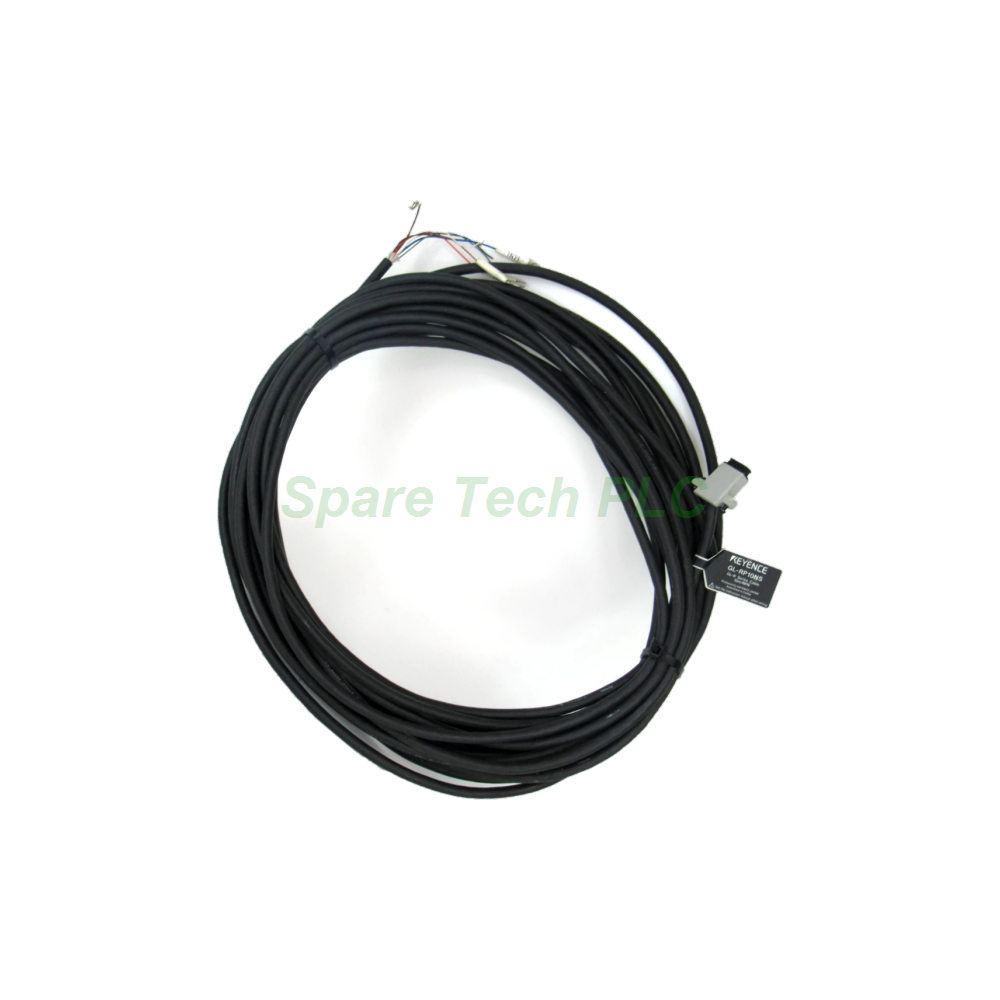

Keyence GL-RP10NS Main Unit Connection Cable 10 m

Product Introduction

The GL-RP10NS from Keyence serves as a main unit connection cable. This cable belongs to the GL series. It carries a length of 10 m, or 32.81 feet. The cable end features a main unit plug in grey. The other end terminates in loose wires.

This product supports NPN configuration. The connector body uses PBT material. The cable jacket uses PVC material. Brown and blue wires use 22 AWG. Their nominal cross section is 0.34 mm2. Other wires use 26 AWG. Their nominal cross section is 0.14 mm2. The total weight reaches 0.43 kg.

Technical Specifications

The GL-RP10NS cable delivers reliable signal transfer. First, the main unit plug fits GL series main units. Next, the loose wires allow flexible field wiring. The 10 m length suits medium-distance installations. Moreover, the NPN design matches common control inputs.

The brown and blue wires carry power. Their 22 AWG gauge handles 0.34 mm2. The remaining wires carry signals. Their 26 AWG gauge handles 0.14 mm2. This mix balances power and signal needs. In addition, the PBT connector resists heat and wear. The PVC jacket resists oil and moisture.

Mechanical and Environmental Parameters

The connector housing uses PBT plastic. This material offers good rigidity. The cable jacket uses PVC. This material provides flexibility. The cable weighs 0.43 kg. The total length is 10 m. Furthermore, the plug color is grey. This color helps identify the main unit end.

The cable operates in typical factory settings. However, users should avoid sharp bends. They should also avoid extreme heat. The PVC jacket suits indoor use. Besides, the PBT connector suits repeated mating. These traits support long service life.

Installation Guide

First, power down the main unit. Next, align the grey plug with the main unit port. Then, push the plug until it clicks. After that, route the cable to the control panel. Keep the cable away from moving parts.

Moreover, strip the loose wire ends. Then, connect brown and blue wires to power. Connect the other wires to signal terminals. Finally, check all connections before power up. The GL-RP10NS cable needs no special tools.

Packaging List

One Keyence GL-RP10NS main unit connection cable, 10 m.
One grey main unit plug.
Loose wire ends for field wiring.

FAQ

Q1: What is the length of the GL-RP10NS cable?
A: The cable measures 10 m, which equals 32.81 feet.

Q2: Does this cable support NPN wiring?
A: Yes, the GL-RP10NS supports NPN configuration.

Q3: What materials build the connector and cable?
A: The connector uses PBT, and the cable jacket uses PVC.

Q4: What wire gauges does this cable use?
A: Brown and blue wires use 22 AWG, and other wires use 26 AWG.

Q5: How much does the cable weigh?
A: The cable weighs 0.43 kg.
