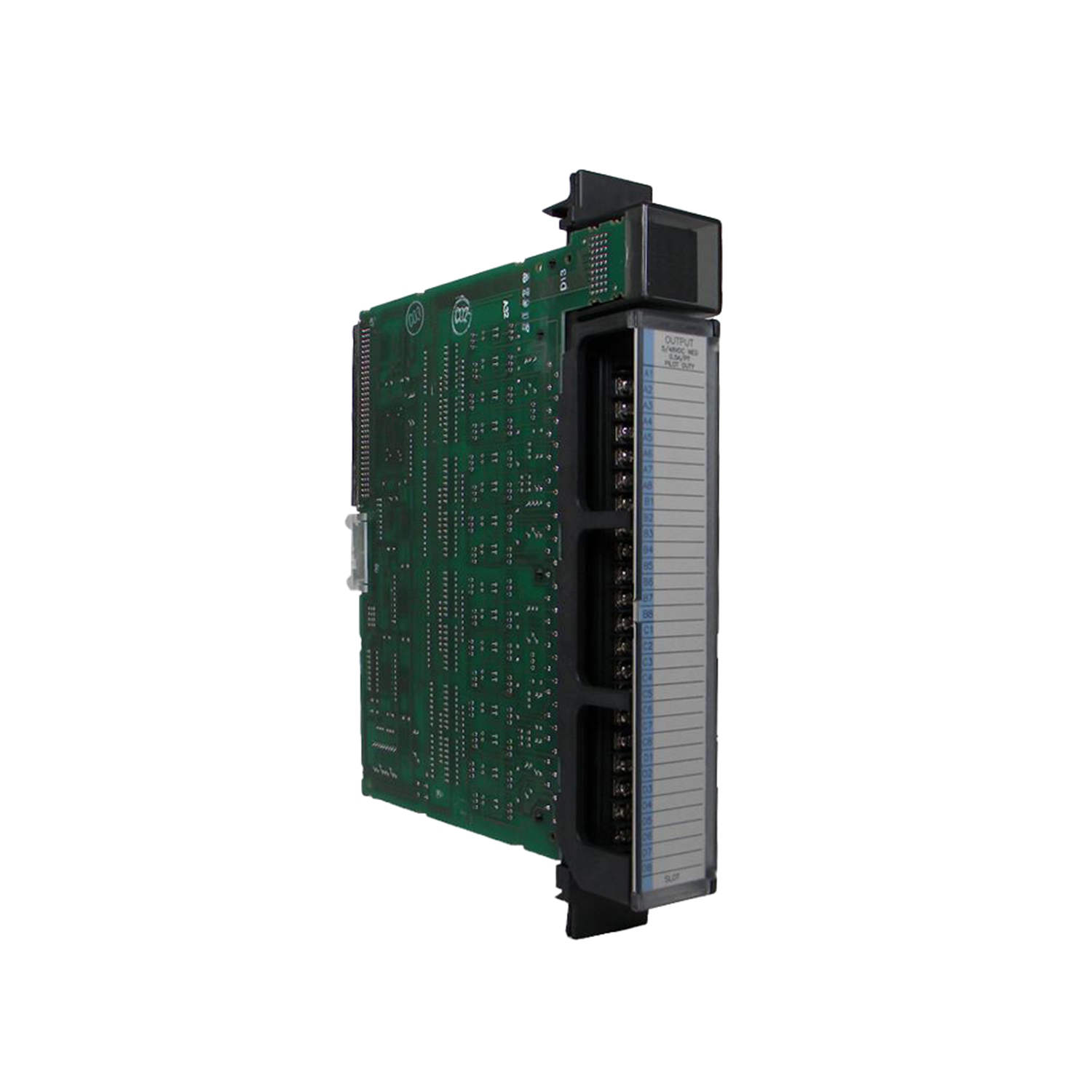

The GE Fanuc IC697MDL753 gives you 32 discrete output points in a negative logic configuration. This design works well for applications that need sinking outputs to a common return path. Additionally, the module supports 5 VDC TTL signals and handles higher voltages up to 60 VDC. Therefore, you get excellent flexibility for mixed-voltage control panels. Moreover, the compact form factor fits perfectly into the Series 90-70 rack system. You can depend on this module for consistent switching performance even in demanding factory environments.
The IC697MDL753 operates with a rated logic voltage of 5 Volts DC. For output loads, it accepts a voltage range from 10 to 60 Volts DC. The module delivers 16 mA per point at 5 VDC, which matches TTL compatibility requirements. For higher voltage operations, it provides 0.5 Amps per point and 4 Amps per group. The backplane current draw measures only 0.25 Amps, keeping overall system power consumption low. Furthermore, the isolation voltage reaches 1500 Volts, offering strong protection against electrical transients. The IC697MDL753 handles an inrush current of up to 5 Amps for 20 milliseconds, making it suitable for inductive loads like relays and solenoids. Response times for both turn-on and turn-off reach 1 millisecond maximum, enabling fast and predictable output sequencing. Additionally, the output voltage drop remains within 1 Volt or 2 Ohms, preserving signal integrity for connected field devices.
The IC697MDL753 arranges all 32 outputs into groups, which simplifies wiring and improves current management. Each group can carry up to 4 Amps at 10 to 60 VDC. This grouping structure also allows you to select different fault response modes for each group. For instance, you can choose to hold the last output state or reset all outputs upon detecting a fault. Such flexibility proves especially valuable in safety-critical applications where you need predictable failure behavior. Furthermore, front-panel LEDs show real-time status for every output point, making troubleshooting quick and straightforward.
This module performs reliably across a wide range of operating conditions. It functions properly within a temperature range of 0 to 60 degrees Celsius. Storage temperatures can span from -40 to 85 degrees Celsius. The module tolerates relative humidity from 5 to 95 percent, non-condensing. Vibration resistance reaches 0.5 G at 10 to 150 Hz, while shock resistance stands at 30 G for 11 milliseconds. These rugged specifications ensure the IC697MDL753 maintains stable operation in harsh industrial settings.
The IC697MDL753 integrates seamlessly into any GE Series 90-70 PLC system. For configuration, you use MS-DOS-based software, which runs on modern Windows versions through compatibility modes. The module accepts standard TTL logic levels, simplifying interface with other digital components. Moreover, it works with a wide variety of field devices, including motor starters, solenoid electromagnets, indicator lamps, and relay coils. Whether you are upgrading an existing control panel or building a new automation system, this module offers proven compatibility and dependable service.
Installing the IC697MDL753 follows a simple process. First, power off the PLC chassis completely. Next, locate an available I/O slot in the Series 90-70 rack. Slide the module into the slot along the guide rails until it seats firmly against the backplane connector. Then, tighten the two retaining screws to secure the module. After that, connect your field wiring to the terminal block, paying close attention to polarity for DC outputs. For group wiring, ensure each group's common return connects correctly. Finally, power on the system and check the LED indicators to confirm normal operation. Before placing the module into active service, configure the fault modes and output states using the configuration software.
Each shipment of the IC697MDL753 includes the following items:
One GE Fanuc IC697MDL753 output module
One terminal block (either pre-attached or packaged separately)
One product documentation leaflet with quick start instructions
Anti-static protective packaging
The packaging does not include installation cables, mounting hardware, or configuration software. These items are available separately upon request.
We ship all orders for the IC697MDL753 using trusted express couriers. Our standard carriers include FedEx, UPS, and DHL. Secure packaging protects the module from damage during transit. Delivery usually takes 3 to 7 business days, depending on your location. We will provide tracking information once we dispatch your order.
1. What does "negative logic" mean for this output module?
Negative logic means the output sinks current from the load to the common ground. In other words, the module switches the load's return path rather than sourcing current to it. This design matches many industrial control systems and PLC applications.
2. Can the IC697MDL753 control a motor starter directly?
Yes, you can use this module to directly drive motor starters, solenoids, and relay coils. Just ensure the inrush current stays below 5 Amps and the continuous current does not exceed 0.5 Amps per point or 4 Amps per group. For larger loads, consider using an external interposing relay.
3. What power supply do I need for the IC697MDL753?
You need a 5 VDC supply for the internal logic circuits. Additionally, you must supply a separate field voltage between 10 and 60 VDC for the output loads. Never exceed 60 VDC on the output side to avoid damaging the module.
4. How can I verify the status of individual outputs?
The front panel includes 32 LED indicators, one for each output point. Each LED lights up when its corresponding output activates. This feature gives you immediate visual feedback, which helps significantly during troubleshooting and system testing.
5. Does the IC697MDL753 work with modern programming computers?
The configuration software runs under MS-DOS, but you can operate it on modern Windows systems using Command Prompt or DOS emulation tools. The hardware itself functions with any Series 90-70 PLC, regardless of the programming device operating system.
| Brand Name | |
| Model No. | IC697MDL753 |
| Product Type | Output Module |
