GE Fanuc IC693CPU363 PLC CPU Module 25 MHz

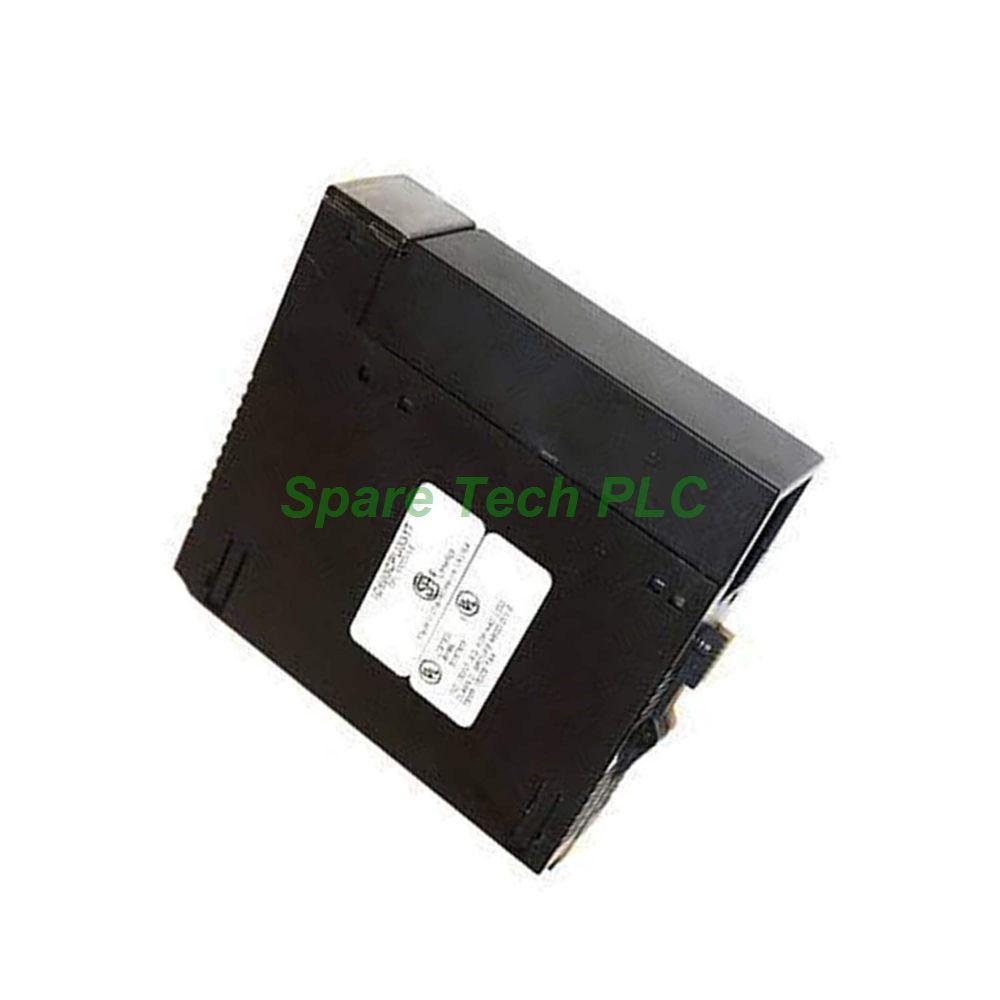

IC693CPU363 GE Fanuc Processor Module

The IC693CPU363 belongs to the GE Fanuc Series 90-30 family of programmable logic controllers. This module acts as the central processing unit for your automation system. It executes user programs stored in its 240KB memory. Furthermore, it manages communication with HMIs, SCADA systems, databases, and other third-party devices. Its 80386EX microprocessor runs at 25 MHz. Consequently, it delivers a typical scan rate of only 0.22 ms per 1K of Boolean logic. This speed ensures timely and reliable control for most industrial processes.

Advanced Communication Capabilities

Unlike its sibling the IC693CPU360, this module comes with built-in serial ports. Specifically, it offers three serial communication interfaces. Two of these ports are embedded directly on the CPU. One port features an RJ45 physical interface. The other uses a 15-pin sub-D connector. Both support RS232 and RS485 communication standards. These ports operate independently. Therefore, you can configure them for simultaneous operation. This flexibility allows data exchange with visualization components while programming continues.

Additionally, a third serial port is accessible through the power supply connector. This port supports SNP/SNPX slave protocols. It uses a 15-pin D-type female connector. You can find it behind the hinged door on the right front of the power supply. This port works perfectly for connecting a PC running programming software. It also supports the GE Fanuc hand-held programmer.

Protocol Support and Expansion Options

The IC693CPU363 supports a wide range of communication protocols. For instance, it handles SNP/SNPX master/slave and RTU slave protocols on ports 1 and 2. Moreover, you can add optional communication modules for Ethernet and Profibus. Other supported protocols include FIP, GBC, GCM, and GCM+ option modules. This versatility makes the module suitable for diverse industrial networks.

Memory and Processing Features

The 240KB user memory is internally partitioned. It accommodates different registers and internal functions. Specifically, the module supports up to 2048 discrete inputs and 2048 discrete outputs. In addition to user RAM, it includes Flash memory for storing CPU firmware. Starting with firmware Release 9.0, the IC693CPU363 also supports floating point math. This feature enables more complex calculations. Furthermore, the module supports the periodic subroutine feature. This allows time-critical tasks to run at fixed intervals.

System Expansion Capacity

The GE Fanuc IC693CPU363 controls up to eight baseplates in total. This includes the local baseplate where the CPU is installed. The remaining seven baseplates function as remote or distributed I/O racks. Consequently, you can build a large-scale distributed control system with a single processor. The module occupies just one slot in the baseplate. This compact design saves valuable panel space.

Installation Guidelines

Installing the IC693CPU363 follows standard Series 90-30 practices. First, disconnect power from the system. Then, insert the module into any available slot in the baseplate. Ensure proper alignment with the backplane connectors. Next, connect your programming device to any of the available serial ports. Finally, apply power and download your logic program.

Remember to handle the module with care. Avoid touching the edge connectors. Keep the unit in its anti-static bag until installation. Proper grounding is essential for reliable operation. The operating temperature ranges from 0 to 60 degrees Celsius. Storage temperature ranges from -40 to 85 degrees Celsius.

Packaging List

• IC693CPU363 CPU module (1 unit)

• Anti-static protective bag (1 piece)

• Quick start installation guide (1 copy)

Note: Cables, programming software, and optional communication modules are not included. The package does not contain certificates or warranty documents.

Shipping Information

All orders ship via FedEx, UPS, or DHL. We select the most efficient carrier based on your delivery address. Tracking numbers are provided within 24 hours of dispatch.

Frequently Asked Questions (FAQ)

1. How many serial ports does the IC693CPU363 have?
It has three serial ports. Two are on the CPU module itself, and one is accessible through the power supply.

2. Does this CPU support Ethernet communication?
Not directly. However, you can add optional Ethernet communication modules to enable Ethernet connectivity.

3. What is the scan rate of the IC693CPU363?
The typical scan rate is 0.22 milliseconds per 1K of Boolean logic contacts.

4. How many baseplates can this module control?
It controls up to eight baseplates total, including the local rack and seven remote I/O racks.

5. Does the IC693CPU363 support floating point math?
Yes, starting with firmware Release 9.0, the module supports floating point arithmetic operations.
