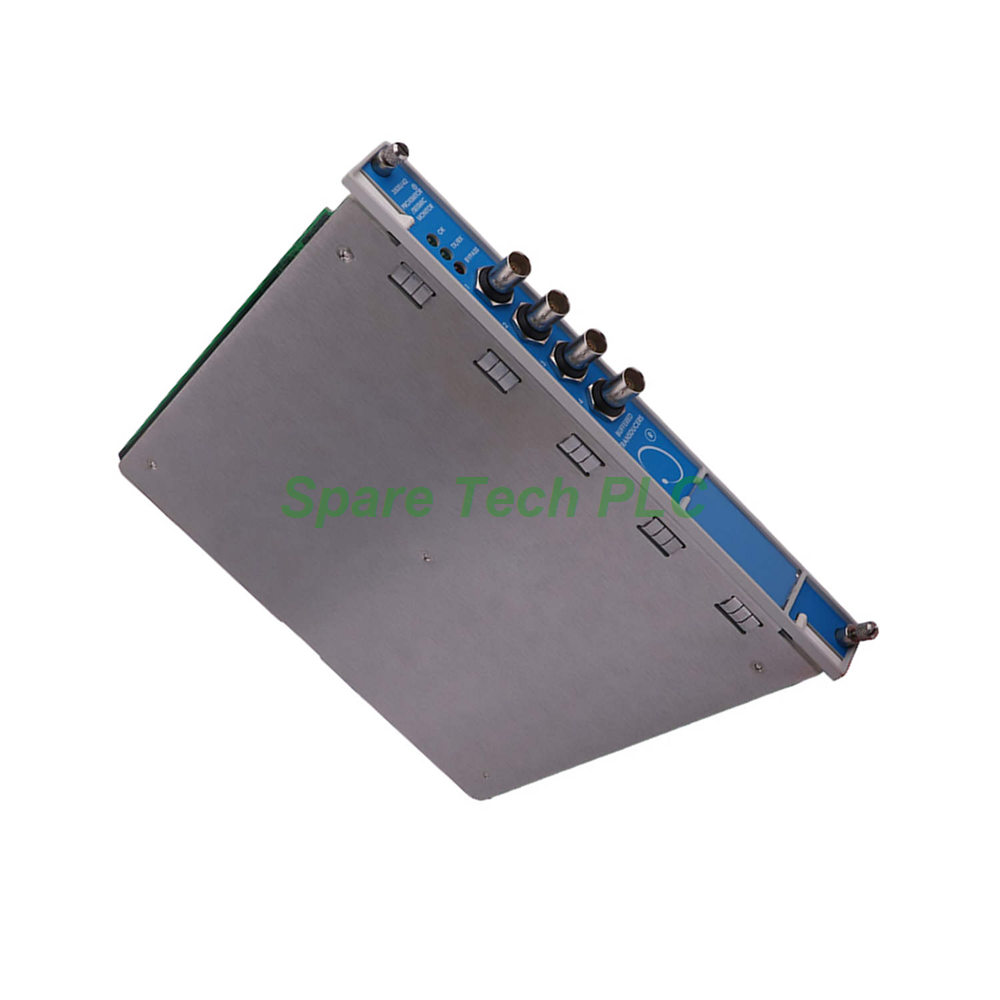

Bently Nevada 3500/42-06-01 Proximitor Seismic Monitor

Overview

The Bently Nevada 3500/42-06-01 delivers reliable machinery protection for critical rotating equipment operating in hazardous areas. This monitor continuously tracks vibration and position parameters from up to four transducers, then compares these values against user-configured alarm setpoints. When parameters exceed set limits, the module triggers appropriate alerts to protect valuable machinery assets.

The -06 I/O module type incorporates internal Zener barriers and internal terminations specifically optimized for Velomitor sensors. Furthermore, the -01 agency approval option certifies this module for use in Class 1, Division 2 hazardous locations under CSA/NRTL/C standards. This built-in safety feature eliminates the need for separate external barrier panels, reducing installation complexity and cost.

Input Capabilities

The 3500/42-06-01 accepts signals from one to four proximity, velocity, or acceleration transducers. Typical power consumption measures 7.7 watts. The standard I/O provides an input impedance of 10 kΩ for both Proximitor and acceleration inputs.

Sensitivity options vary by measurement type. For radial vibration, thrust, and eccentricity measurements, users can select either 3.94 mV/μm or 7.87 mV/μm. Acceleration inputs operate at 10 mV/(m/s²). Velocity inputs offer multiple scaling choices, including 20 mV/(mm/s) pk, 5.8 mV/(mm/s) pk, or 4 mV/(mm/s) pk.

The -06 I/O module specifically supports Velomitor sensors, which are velocity-type seismic transducers. Velomitor accuracy reaches ±3% typical for the 0-0.5 full-scale range, ±2% typical for the 0-1.0 range, and ±1% typical for the 0-2.0 range. When using external barriers under radiated immunity conditions, total Velomitor accuracy remains within ±15%.

Signal Conditioning and Filtering

The 3500/42-06-01 offers sophisticated signal conditioning capabilities. For radial vibration measurements, the direct filter is user-programmable with a single-pole -3 dB point ranging from 4 Hz to 4000 Hz. The gap filter provides -3 dB at 0.09 Hz.

Specialized filtering options include the Not 1X filter, which achieves a minimum stopband rejection of -34.9 dB. Additionally, the 1X and 2X vector filters attain a minimum rejection of -57.7 dB. These filters effectively remove unwanted frequency components, ensuring accurate vibration analysis.

Accuracy specifications remain consistent across measurement types. Direct and gap measurements achieve ±0.33% of full-scale typical and ±1% maximum. The Smax measurement maintains ±5% maximum accuracy. For acceleration measurements, 4-pole filter designs serve both high-pass and low-pass applications.

Outputs and Status Indication

The front panel features three visual status LEDs. The OK LED illuminates when the monitor operates properly. The TX/RX LED indicates communication activity with other modules in the 3500 rack. The Bypass LED signals when the monitor enters Bypass Mode.

Each channel has a coaxial connector on the front panel that serves as a buffered transducer output. These connectors are short-circuit protected and feature an output impedance of 550 Ω. The transducer power supply delivers -24 Vdc.

The 3500/42-06-01 provides individual +4 to +20 mA recorder outputs for each channel. These outputs are proportional to the monitor's full-scale range. Short circuits on recorder outputs do not affect monitor operation. The voltage compliance ranges from 0 to +12 Vdc across a load resistance of 0 to 600 Ω. Resolution is rated at 0.3662 µA per bit with ±0.25% error at room temperature and ±0.7% error across the temperature range. The update rate is approximately 100 ms or less.

Environmental and Physical Specifications

The monitor operates at +25 ºC (+77 ºF) unless otherwise noted. This module maintains high accuracy across a wide temperature range, ensuring reliable performance in demanding industrial environments. The robust construction suits installation in 3500 series racks commonly found in power generation, oil and gas, and heavy manufacturing facilities.

The module board measures 241.3 mm in height, 24.4 mm in width, and 241.8 mm in depth. Gross weight is approximately 0.91 kg (2.0 lbs). The module fits standard 3500 series rack slots and is mechanically interchangeable with other modules in the product line.

Installation Guidelines

Installing the Bently Nevada 3500/42-06-01 follows a straightforward process. First, power down the 3500 rack before inserting or removing any module. Next, slide the module into the designated slot until it seats fully. Then, secure the module using the retaining screws on the top and bottom.

The internal terminations on this -06 version allow direct wiring of Velomitor sensors to the module's I/O connectors. This design simplifies overall installation and reduces termination points. The internal barriers provide intrinsic safety for connections to transducers located in hazardous areas.

Users must configure sensitivity settings in the 3500 rack configuration software to match the specific transducers. Proper configuration ensures measurement accuracy and reliable protection. The 3500/42-06-01 works with various Bently Nevada transducers, including 3300 XL and 7200 series proximity probes for proximity measurements.

Packaging List

The shipment includes the following items:

• 1 x Bently Nevada 3500/42-06-01 Proximitor Seismic Monitor Module

• 1 x Installation and Configuration Manual

• 1 x Standard I/O Connector Kit with internal terminations

Certificates and warranty documents are not included in the packaging list and are handled separately.

Shipping Method: FedEx, UPS, or DHL

Frequently Asked Questions

1. What is the primary function of the Bently Nevada 3500/42-06-01?

The 3500/42-06-01 serves as a machinery protection monitor. It continuously measures vibration and position parameters from up to four transducers and alerts operators when values exceed set alarm limits.

2. What makes the 3500/42-06-01 different from other versions?

The "-06" designation indicates this I/O module specifically supports Velomitor sensors and includes internal Zener barriers. The "-01" approval option provides CSA/NRTL/C certification for Class 1, Division 2 hazardous locations.

3. What types of transducers work with the 3500/42-06-01?

This module accepts signals from Velomitor sensors, proximity probes, and accelerometers. The specific compatibility depends on the configuration chosen for each channel.

4. How do I configure alarm limits for the 3500/42-06-01?

You can configure alarm limits using the 3500 rack configuration software. The software allows you to set danger, alert, and bypass settings for each channel.

5. Is the 3500/42-06-01 suitable for hazardous area installations?

Yes, the internal Zener barriers and CSA/NRTL/C Class 1, Division 2 approval make this module suitable for hazardous area applications. However, always verify overall system compliance with local safety regulations.
