Bently Nevada 330907-05-30-70-12-05 Probe

3300 NSv Reverse Mount Probe 330907-05-30-70-12-05

Product Introduction

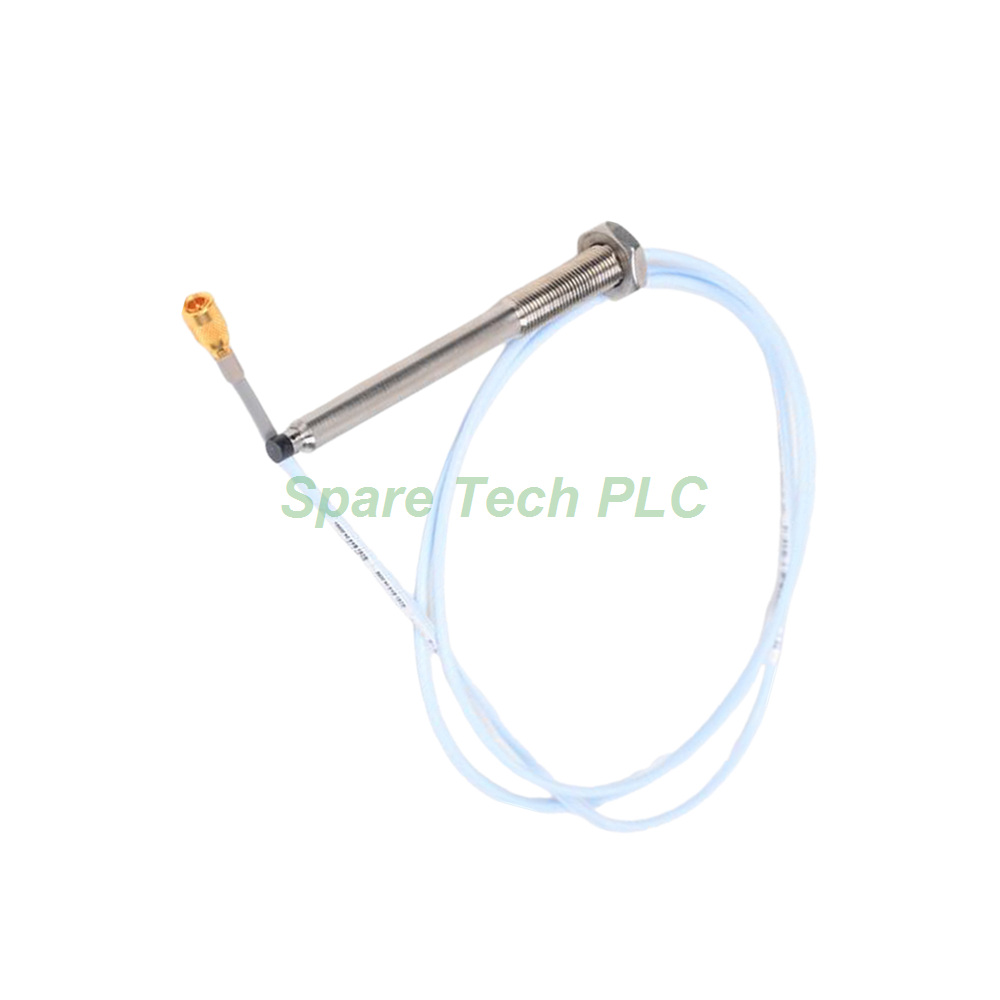

The Bently Nevada 330907-05-30-70-12-05 belongs to the 3300 NSv series of reverse mount proximity probes. Specifically, this model performs continuous vibration and position monitoring in rotating machinery. Additionally, it provides improved chemical resistance compared to the older 3300 RAM probe, which makes it suitable for process compressor environments. Moreover, the side-view characteristics of this probe surpass those of the 3000-series 190 probe when you set it at the same target distance. Meanwhile, this particular version comes with M10X1 threads, a 7.0 meter FluidLoc cable, and a miniature coaxial ClickLoc connector. Furthermore, the multiple agency approval option (05) accompanies this model for global compliance.

Technical Specifications

The 330907-05-30-70-12-05 probe delivers a linear range of 1.5 mm (60 mils), beginning at approximately 0.25 mm from the target and extending to 1.75 mm. For optimal performance, we recommend a gap setting of 1.0 mm (40 mils). Next, the DC resistance from the center conductor to the outer conductor measures 5.9 ± 0.9 ohms for this 7.0 meter version. Meanwhile, the probe tip consists of Polyphenylene sulfide (PPS), while the case uses AISI 304 stainless steel. Additionally, the system accommodates field wiring from 0.2 to 1.5 mm2 (16 to 24 AWG), and Bently Nevada recommends using a three-conductor shielded triad cable. You can also extend the cable length between the Proximitor Sensor and the monitor up to 305 meters (1,000 feet). Finally, the operating and storage temperature range for this probe spans from -52°C to +177°C.

Mechanical and Environmental Parameters

The mechanical design of the 330907-05-30-70-12-05 features a reverse mount configuration with robust thread engagement. Specifically, we recommend a maximum installation torque of 7.5 N•m (66 in•lb), although the case can withstand up to 22.6 N•m (200 in•lb). For the M10X1 thread option, the maximum thread engagement length reaches 15 mm. Additionally, a Viton O-ring seals differential pressure between the probe tip and the case. However, sustained exposure to temperatures below -34°C may lead to premature seal failure. Meanwhile, the system weight ranges from approximately 14 to 150 grams, depending on the specific configuration.

About the FluidLoc Cable

The 330907-05-30-70-12-05 features a FluidLoc cable option (connector code 12), which provides enhanced protection against fluid ingress. Specifically, this cable construction offers superior resistance to oil and other industrial fluids commonly found in compressor applications. Additionally, the FluidLoc design maintains signal integrity even in harsh environments where standard cables might fail. This makes the 330907-05-30-70-12-05 particularly suitable for installations where fluid exposure poses a concern.

Installation Guidelines

Proper installation of the 3300 NSv Reverse Mount Probe ensures accurate measurements and a long service life. First, verify that the target surface is clean and free from debris. Next, thread the probe carefully into the mounting hole using the recommended torque of 7.5 N•m. Additionally, avoid exceeding the maximum rated torque to prevent damage. Then, connect the miniature coaxial ClickLoc connector, which locks securely to prevent loosening from vibration. Finally, set the initial gap to the recommended 1.0 mm using a suitable gap measurement tool. For field wiring, use shielded triad cable and keep the total length within 305 meters to avoid signal rolloff at high frequencies.

Packaging List

The following items come with each Bently Nevada 330907-05-30-70-12-05 probe:

• 1 x 3300 NSv Reverse Mount Probe assembly with 7.0 m FluidLoc cable

• 1 x Miniature coaxial ClickLoc connector (pre-attached)

• 1 x Installation instruction sheet

Shipping Information

We ship all orders for the 330907-05-30-70-12-05 via FedEx, UPS, or DHL. Delivery times vary by destination, but we ensure prompt dispatch within 24 hours of order confirmation.

Frequently Asked Questions

1. What is the difference between the 3300 NSv and the 3300 RAM probe?
   The 3300 NSv probe offers increased chemical resistance compared to the 3300 RAM probe, which allows its use in more aggressive process compressor environments.

2. What is the FluidLoc cable option?
   The FluidLoc cable (connector option 12) provides enhanced protection against fluid ingress, making it ideal for applications with oil or industrial fluid exposure.

3. What is the recommended gap setting for the 330907-05-30-70-12-05?
   We recommend a gap setting of 1.0 mm (40 mils) for optimal linear performance.

4. What thread type does the 330907-05-30-70-12-05 use?
   This model uses M10X1 threads, which are standard for many industrial mounting applications.

5. What is the maximum torque I should apply during installation?
   We recommend a maximum torque of 7.5 N•m (66 in•lb) for the reverse mount probe, although the case can withstand up to 22.6 N•m (200 in•lb).
