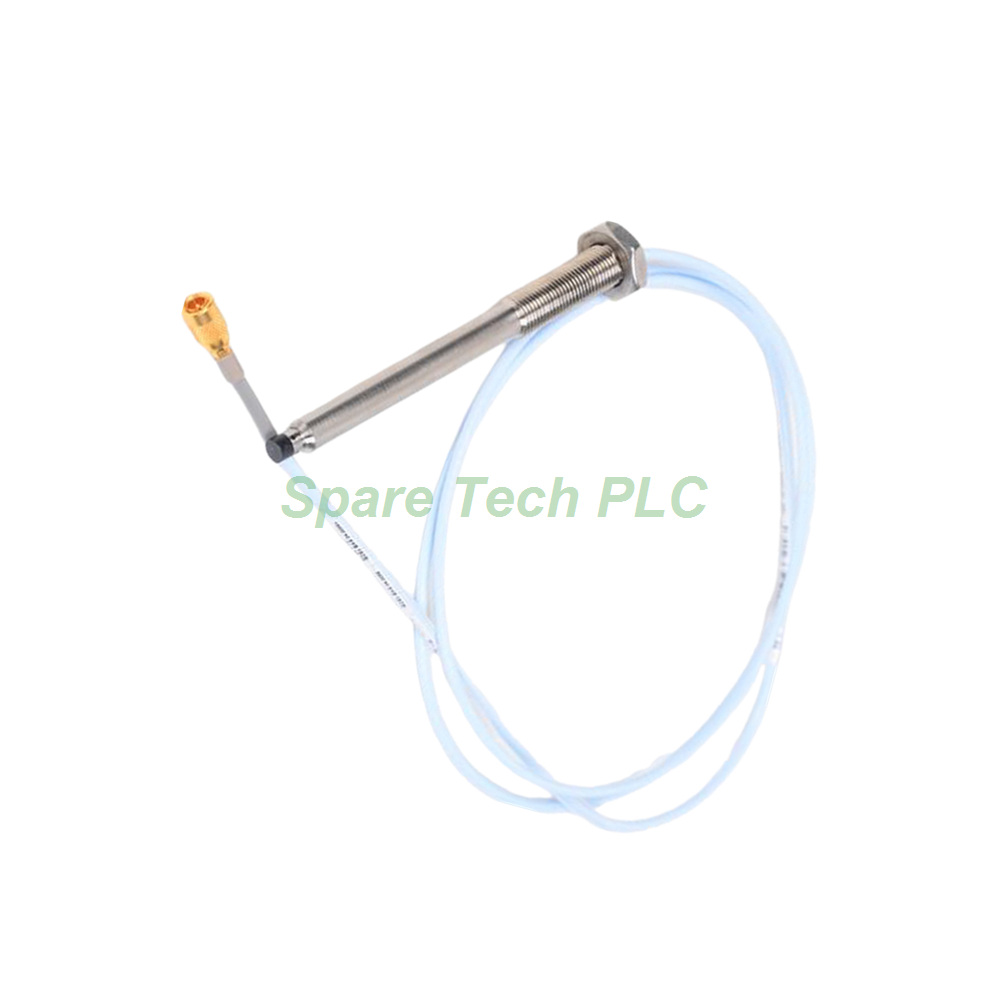

Bently Nevada 330907-05-30-05-12-05 Reverse Mount Probe

Product Introduction

The Bently Nevada 330907-05-30-05-12-05 represents a specialized proximity probe solution for critical machinery protection applications. Specifically, this reverse mount configuration is engineered for installations where space constraints and fluid exposure are primary concerns. Meanwhile, the M10X1 thread pattern ensures secure, repeatable mounting in compatible hardware. Moreover, the probe delivers exceptional measurement accuracy and long-term reliability under extreme operating conditions. In fact, this model incorporates advanced material technology to resist chemical attack and thermal degradation. Therefore, it is particularly well-suited for process compressor applications where measurement consistency is paramount. Additionally, the 0.5-meter FluidLoc cable offers convenient connectivity while providing superior protection against fluid ingress, making it ideal for wet or contaminated environments.

Technical Specifications

Electrical Characteristics

The 330907-05-30-05-12-05 operates with precisely defined electrical parameters for optimal measurement performance. For instance, the probe's DC resistance is a fundamental specification that directly influences signal quality and system compatibility. Accordingly, for this 0.5-meter version, the resistance between the center and outer conductors is 4.0 ± 0.5 ohms. Furthermore, the field wiring must utilize a three-conductor shielded triad cable to minimize electromagnetic interference and maintain signal integrity. This wiring can extend to a maximum length of 305 meters (1,000 feet) between the Proximitor Sensor and the monitoring equipment. However, it is important to note that using extended cable runs may cause signal rolloff at high frequencies. Therefore, users should always consult the frequency response graphs before finalizing their installation design to avoid measurement degradation.

Linear Range and Gap

This model provides a reliable linear range of 1.5 mm (60 mils) for accurate displacement and vibration measurement. To begin with, the linear range starts at approximately 0.25 mm (10 mils) from the target surface. Then, it extends continuously from 0.25 to 1.75 mm (10 to 70 mils). In practice, this measurement range corresponds to an output voltage of approximately -1 to -13 Vdc. Additionally, the recommended gap setting for optimal system performance is 1.0 mm (40 mils). Consequently, this placement ensures the target remains in the most linear portion of the probe's operating range. As a result, the sensor delivers highly accurate and repeatable measurement data essential for effective predictive maintenance programs.

Connector and Cable Options

This specific unit comes with a 12 connector option. Specifically, this indicates a miniature coaxial ClickLoc connector with FluidLoc cable. Moreover, the FluidLoc cable features enhanced sealing properties that provide excellent protection against fluid ingress. This makes it particularly suitable for applications where the probe may be exposed to oil, water, or other process fluids. Furthermore, all ClickLoc connectors feature gold-plated brass contacts for superior conductivity and corrosion resistance. Meanwhile, these connectors lock securely into place once fully engaged. Therefore, they effectively prevent any loosening caused by vibration, thermal cycling, or mechanical shock. Additionally, the total length option 05 denotes a 0.5-meter (20 inches) cable. This compact length is ideal for installations where minimal cable exposure is desired or where space constraints require a shorter lead.

Thread and Agency Approval

The 05-30 prefix indicates M10X1 metric threads, which provide robust mounting for reverse mount applications. This metric thread pattern is widely used in international machinery installations, offering excellent compatibility with standard mounting hardware. Furthermore, the 05 agency approval option indicates that this model carries multiple regulatory certifications. For global industrial applications, this simplifies procurement and ensures compliance with regional safety standards. Consequently, users can deploy this probe in various geographic locations without additional certification delays.

Mechanical & Environmental Parameters

Material and Construction

The probe is manufactured using premium materials selected for maximum durability and chemical resistance. For example, the probe tip is made from Polyphenylene sulfide (PPS), a high-performance engineering thermoplastic known for its exceptional chemical resistance. Meanwhile, the probe case is constructed from AISI 304 stainless steel (SST). Consequently, this material combination offers outstanding resistance to corrosion, wear, and chemical attack from process media. Additionally, the reverse mount design utilizes M10X1 metric threads for secure and repeatable attachment. Furthermore, the patented TipLoc molding method creates an exceptionally robust bond between the probe tip and its body. As a result, this prevents internal separation and ensures a long operational service life even in demanding environments.

Temperature and Pressure Ratings

Environmental resilience is a defining characteristic of the Bently Nevada 330907-05-30-05-12-05. For instance, its operating temperature range extends from -52°C to +177°C (-62°F to +351°F). Similarly, the storage temperature range matches the operating range exactly. However, prolonged exposure below -34°C (-30°F) may cause premature failure of the pressure seal. Therefore, users should avoid sustained low-temperature operation whenever possible. In addition, the probe is specifically designed to seal differential pressure between the tip and the case. Specifically, it utilizes a Viton O-ring for this sealing function, which provides excellent chemical compatibility and temperature resistance across a wide range of process conditions.

Torque Specifications and Weight

Proper installation torque is essential for reliable performance in the reverse mount configuration. On one hand, the maximum rated torque for these probes is 22.6 N•m (200 in•lb). On the other hand, the recommended installation torque is significantly lower at 7.5 N•m (66 in•lb). Therefore, applying the recommended torque prevents thread damage and ensures proper sealing without over-stressing the probe body. Moreover, the system weight varies depending on the specific cable length and configuration. For this 0.5-meter version with FluidLoc cable, the probe itself weighs approximately 14 to 150 g (0.5 to 5.3 oz). Finally, the maximum recommended length of thread engagement for the M10x1 thread is 15 mm, which ensures adequate mechanical stability.

Installation Guidelines

Pre-Installation Checks

Before installing the 330907-05-30-05-12-05, several preliminary steps are essential for successful deployment. First, inspect the probe and FluidLoc cable carefully for any signs of physical damage or deformation during shipping. Next, verify that the model number and specifications match your system requirements precisely, particularly the M10X1 thread compatibility and FluidLoc cable type. Meanwhile, ensure the target surface is clean, smooth, and free of any debris or surface imperfections that could affect measurement accuracy. Finally, confirm that the field wiring length does not exceed the maximum of 305 meters to avoid signal degradation issues.

Mounting Procedure

First, thread the probe into the mounting hole by hand to ensure proper alignment with the M10X1 threads. Next, use a calibrated torque wrench to tighten it to the recommended 7.5 N•m (66 in•lb). This prevents overtightening and potential damage to the threads or probe body. Then, connect the probe to the extension cable using the ClickLoc connector with a firm push. Meanwhile, ensure that a secure lock is achieved by listening for the audible click that confirms full engagement. Finally, route the FluidLoc cable carefully to avoid sharp bends, kinks, or excessive strain that could compromise its fluid sealing properties or damage the internal conductors.

Gapping and Setup

After mounting, proceed with the electrical setup and gapping procedure systematically. First, connect the system to the power supply and monitoring equipment according to the manufacturer's specifications. Next, use a precision micrometer or the system's voltage reading to set the initial gap. Then, adjust the probe incrementally until the output voltage corresponds to the recommended 1.0 mm (40 mils) gap. Consequently, this step is essential for achieving accurate vibration and position monitoring data. Therefore, take care to perform this adjustment slowly and methodically for best results.

Packaging List

This product is shipped with the following items:

• 1 x Bently Nevada 330907-05-30-05-12-05 NSv Reverse Mount Probe with FluidLoc cable

• 1 x Installation Guide

Note: Additional mounting hardware, extension cables, and Proximitor Sensors may be required for a complete system and are sold separately.

Shipping Method: Orders are shipped via Fedex, UPS, or DHL.

FAQ

Q1: What is the primary advantage of this NSv probe over the older 3300 RAM model?
A1: The primary advantage is its increased chemical resistance compared to the 3300 RAM probe. As a result, it offers reliable operation in many process compressor applications where chemical exposure is a concern.

Q2: What is the significance of the "12" connector option in the model number 330907-05-30-05-12-05?
A2: The "12" connector option indicates that this unit comes with a miniature coaxial ClickLoc connector with FluidLoc cable. Specifically, the FluidLoc cable provides enhanced sealing properties that protect against fluid ingress in demanding applications.

Q3: What is the recommended gap setting for this reverse mount probe?
A3: The recommended gap setting for the 330907-05-30-05-12-05 is 1.0 mm (40 mils). Consequently, this places the target within the center of the probe's linear range (0.25 to 1.75 mm) for optimal measurement accuracy.

Q4: What is the maximum length of the field wiring between this probe and the monitor?
A4: The maximum recommended length of field wiring between the 3300 XL NSv Proximitor Sensor and the monitor is 305 meters (1,000 feet). However, be aware that longer lengths may cause signal rolloff at high frequencies.

Q5: What is the recommended torque for installing this probe?
A5: The maximum rated torque is 22.6 N•m (200 in•lb). However, the recommended installation torque is only 7.5 N•m (66 in•lb). Therefore, applying the lower recommended torque will prevent thread damage and ensure proper sealing.
